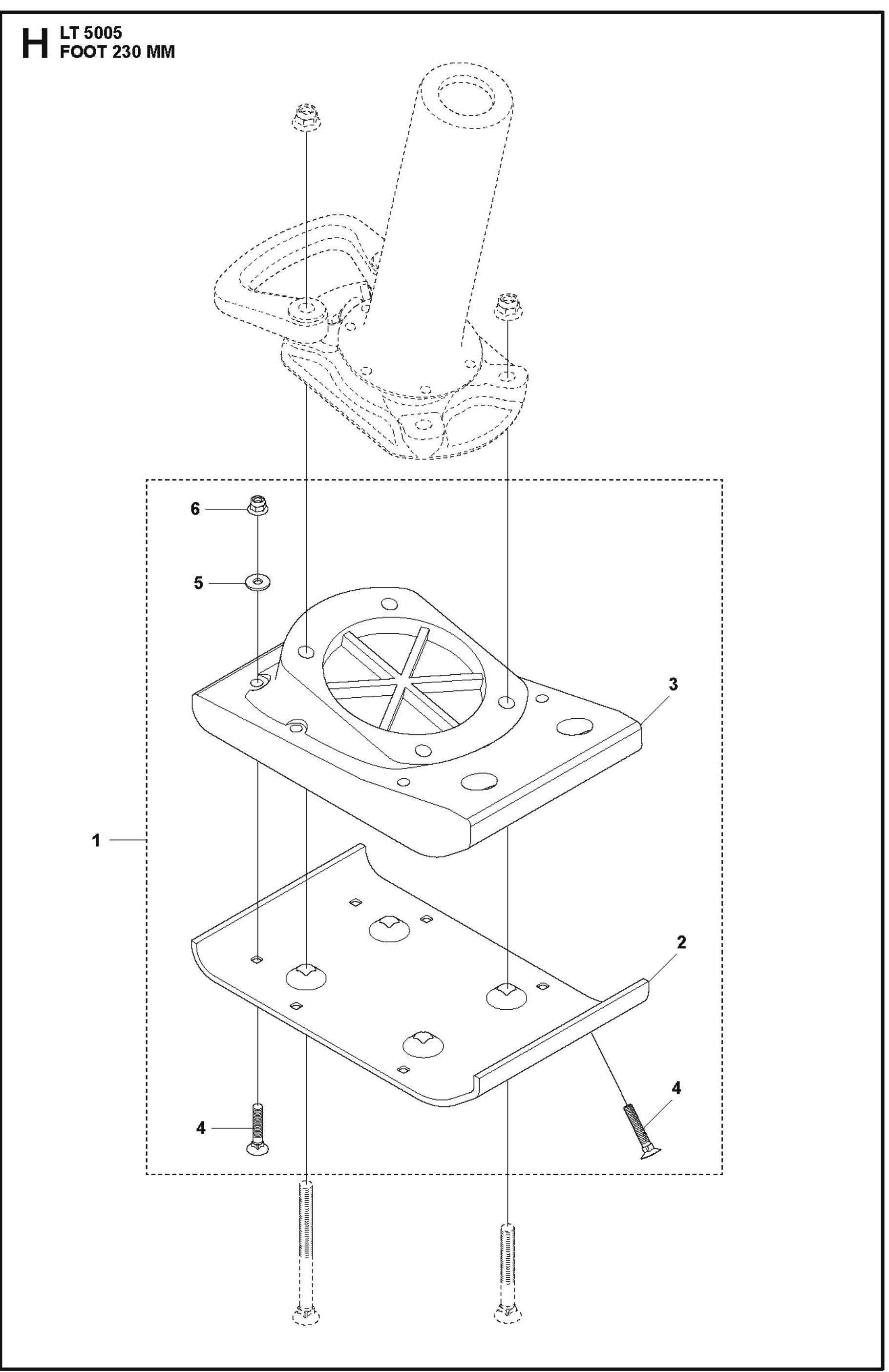

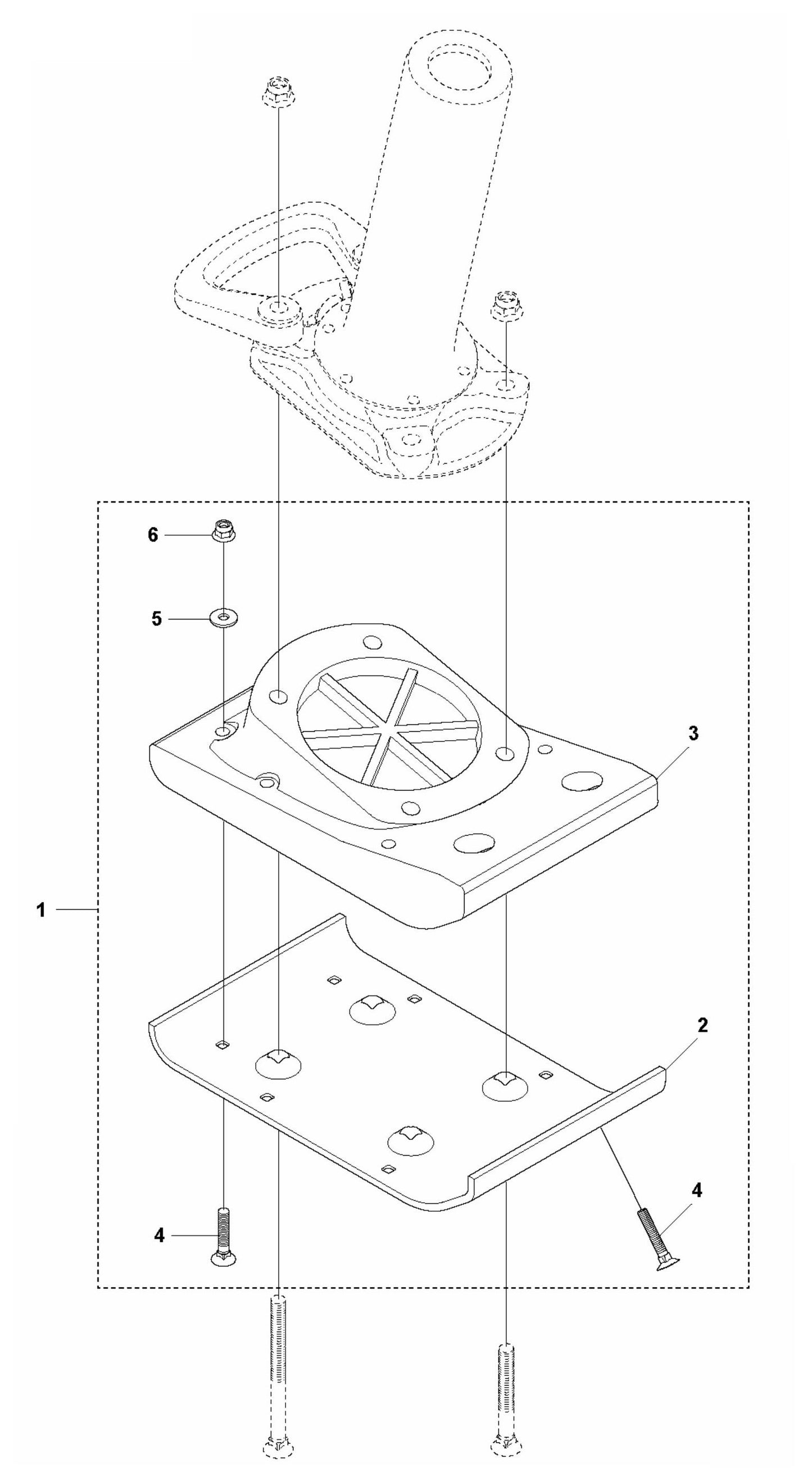

LT 5005 Foot 230 mm Assembly Parts by Husqvarna

LT 5005 Foot 230 mm Assembly Parts by Husqvarna

  • LT 5005 Foot 230 mm Assembly Parts by Husqvarna
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
594193501 Footplate 9 Inch Lt 5005 by Husqvarna
$193.80
2
594168601 BASE PLATE FOR COMPACTION EQUIPMENT BY HUSQVARNA
$243.20
3
594462201 FOOT FOR COMPACTION EQUIPMENT BY HUSQVARNA
$79.61
4
594517001 SCREW FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.90
5
594123401 WASHER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$4.99
6
594123001 LOCK NUT FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details
