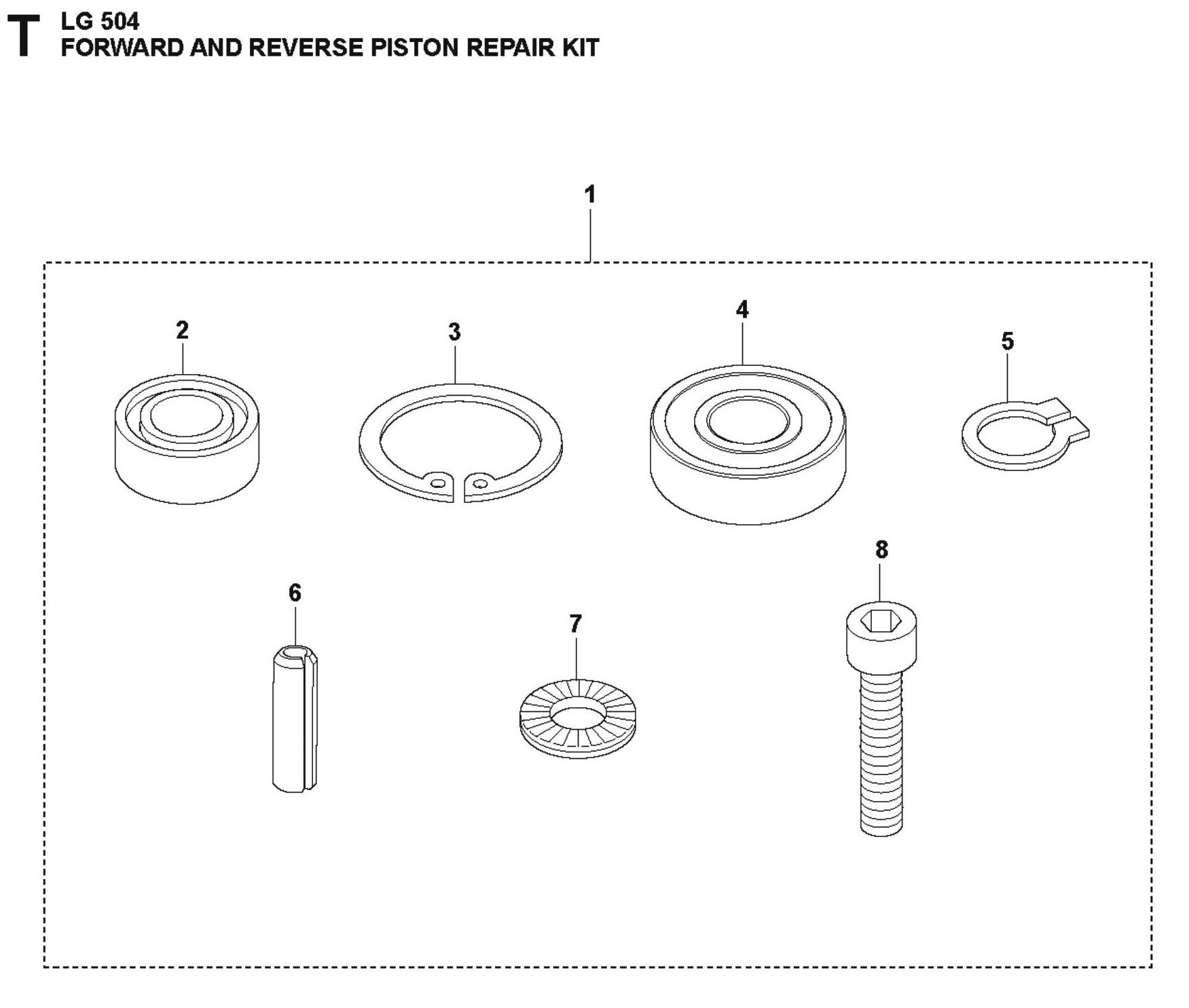

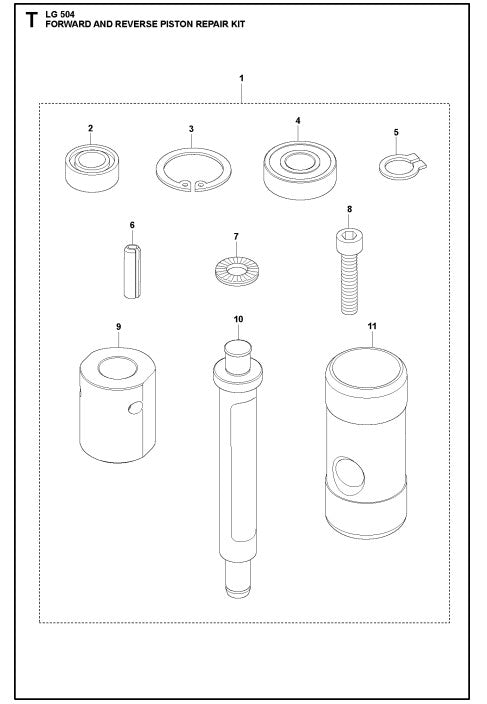

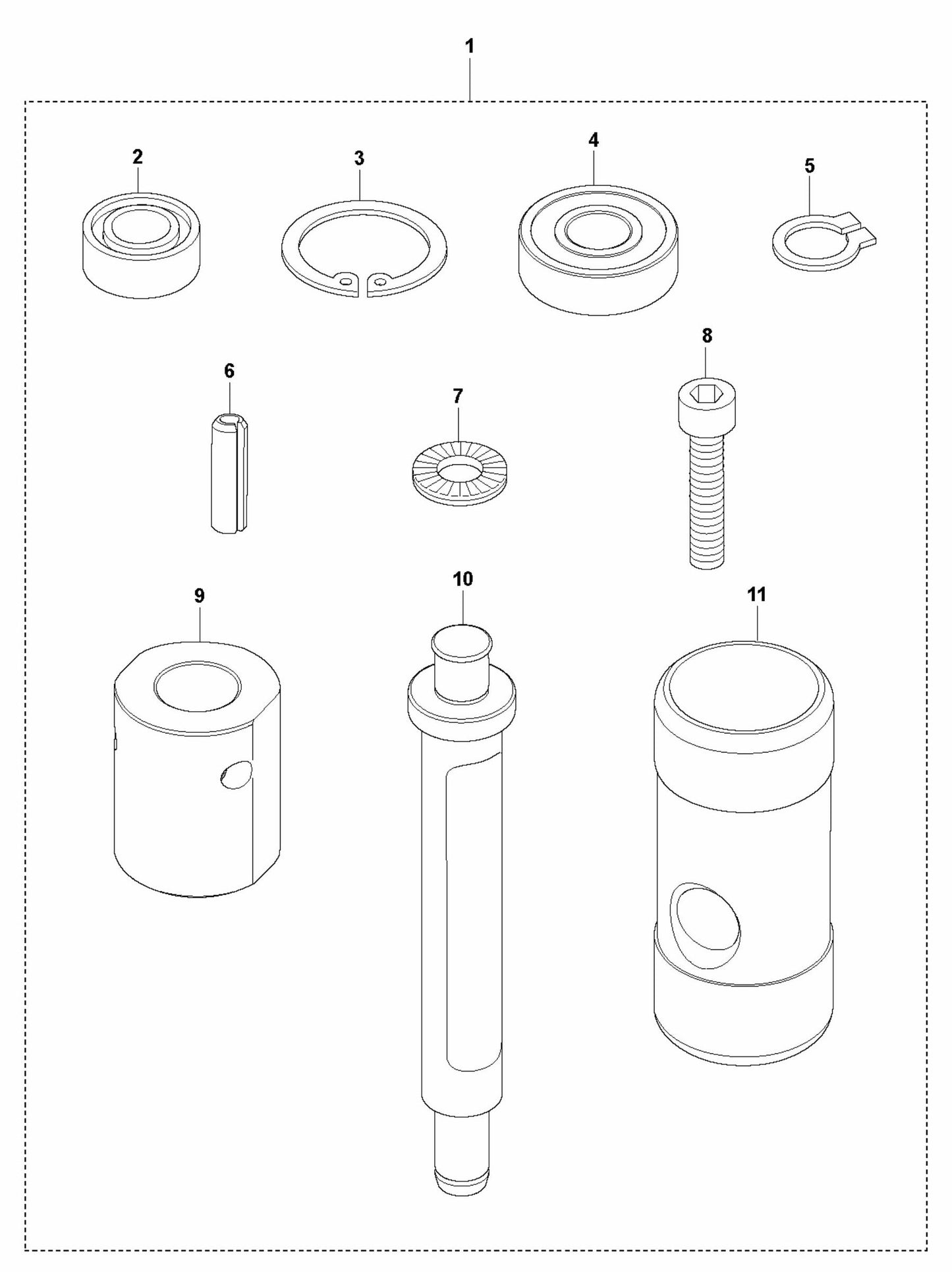

Forward And Reverse Piston Repair Kit Assembly Parts For LG 504 Reversible Plate Compactor By Husqvarna

Forward And Reverse Piston Repair Kit Assembly Parts For LG 504 Reversible Plate Compactor By Husqvarna

  • Forward And Reverse Piston Repair Kit Assembly Parts For LG 504 Reversible Plate Compactor By Husqvarna
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
595390301 FWA/REV PISTON REPAIR KIT FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$59.79
2
594184301 SEALING FOR COMPACTION EQUIPMENT BY HUSQVARNA
$4.36
3
595113901 RING-RETAINING:M 12DX1.0T EXT FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
4
594183601 BALL BEARING FOR COMPACTION EQUIPMENT BY HUSQVARNA
$12.78
5
595046301 RETAINING RING FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
6
595031101 SPRING PIN 6 X 20 MM FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$2.99
7
594124601 LOCK WASHER M6 FOR COMPACTION EQUIPMENT BY HUSQVARNA
$4.99
8
595287401 SCREW FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
9
594643001 CAP FOR COMPACTION EQUIPMENT BY HUSQVARNA
$24.48
10
594182301 PISTON ROD FOR COMPACTION EQUIPMENT BY HUSQVARNA
$19.38
11
594182401 PISTON FOR COMPACTION EQUIPMENT BY HUSQVARNA
$26.91
