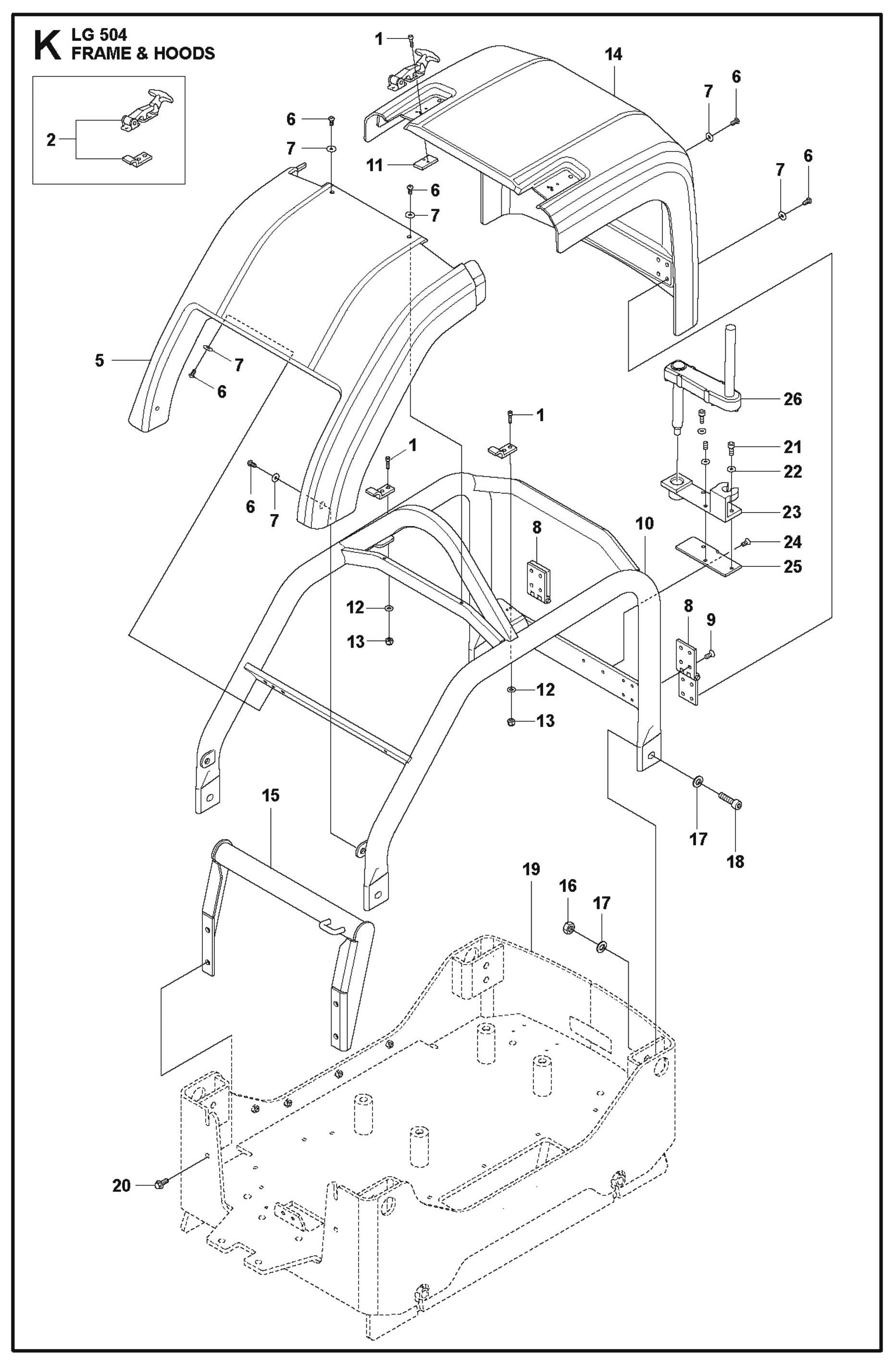

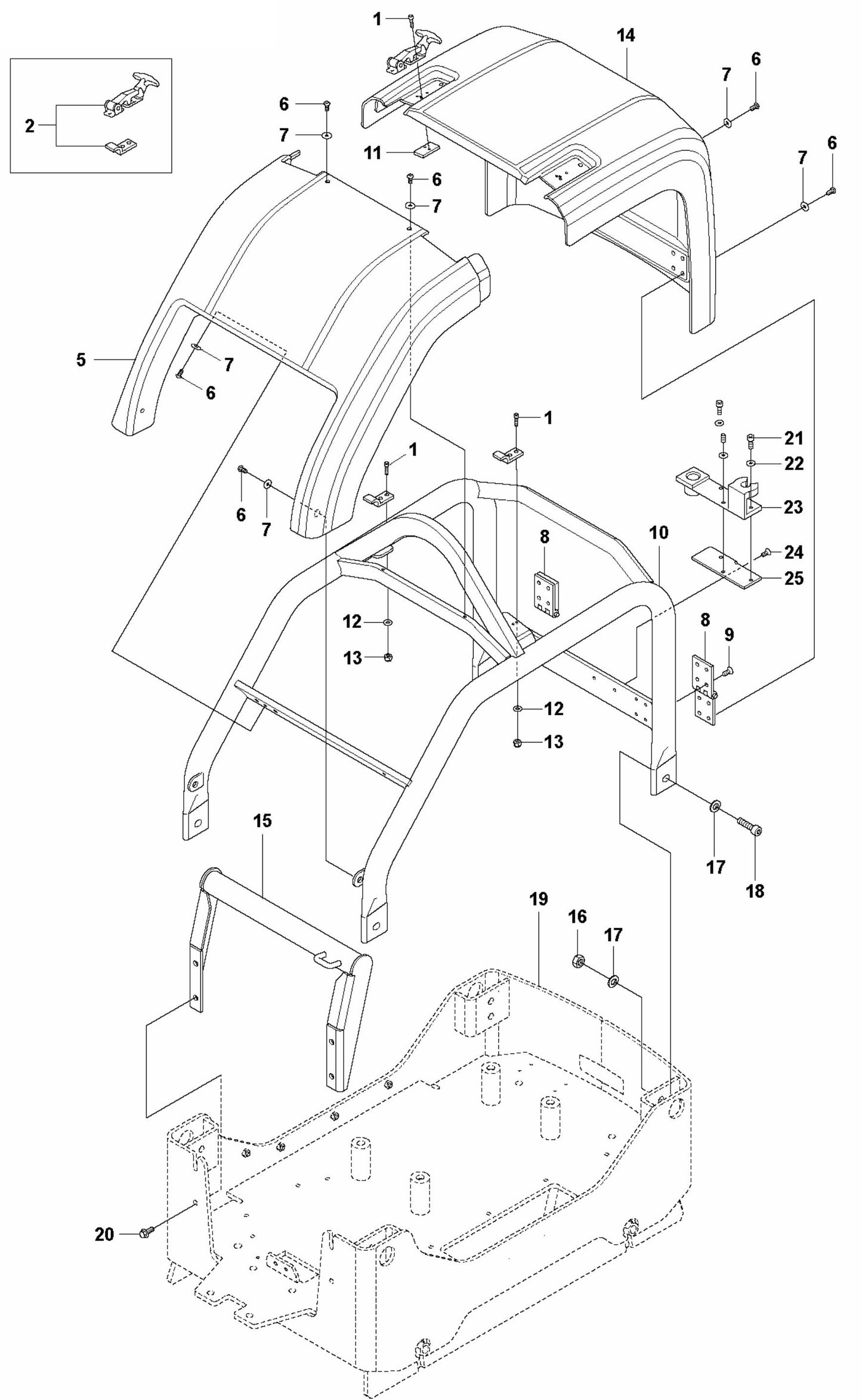

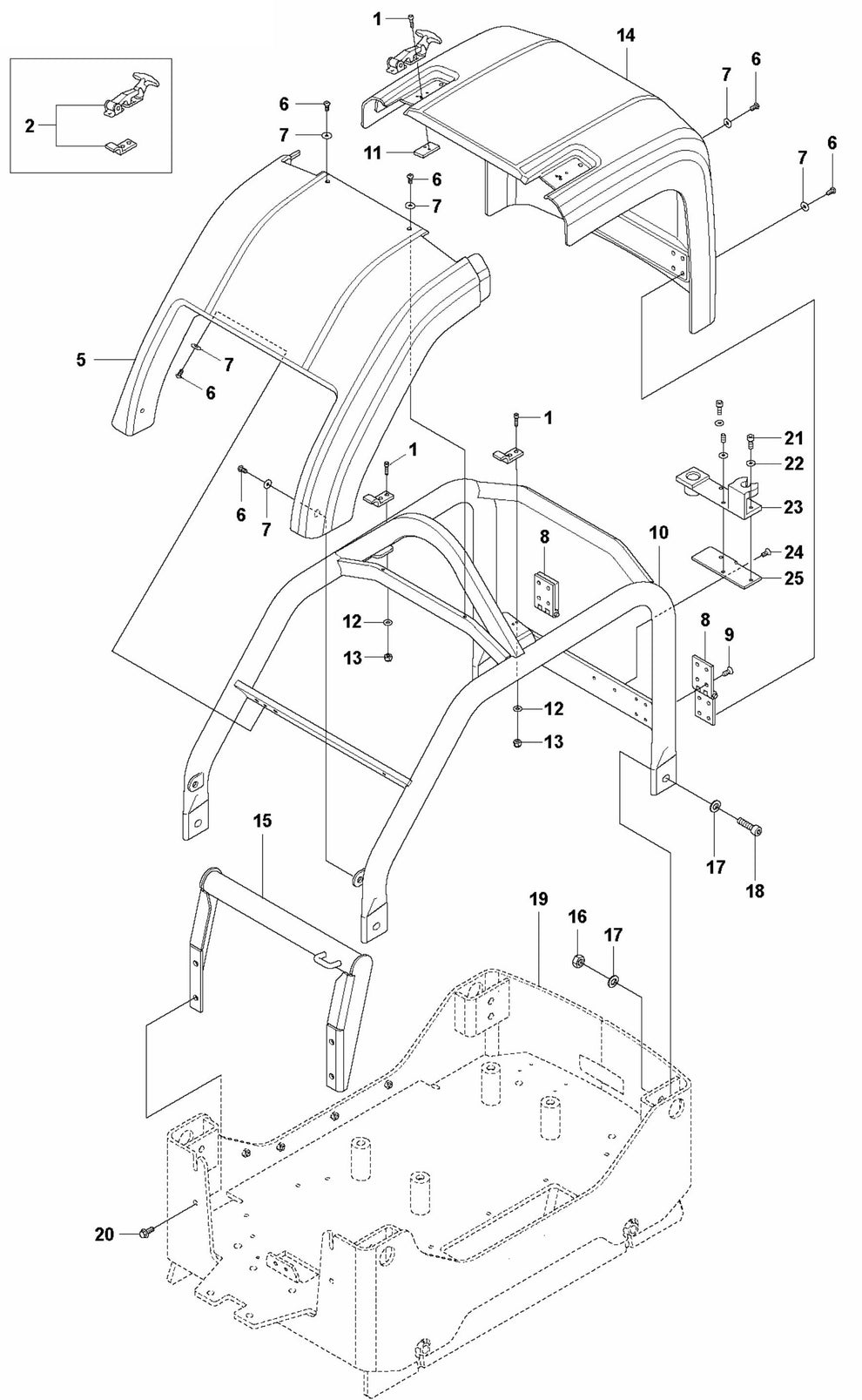

Frame And Hoods Assembly Parts For LG 504 Reversible Plate Compactor By Husqvarna

Frame And Hoods Assembly Parts For LG 504 Reversible Plate Compactor By Husqvarna

  • Frame And Hoods Parts For LG 504 Reversible Plate Compactor By Husqvarna
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
595110801 HEX SOCK. SCREW FOR COMPACTION EQUIPMENT BY HUSQVARNA
$4.99
2
594192001 LATCH FOR COMPACTION EQUIPMENT BY HUSQVARNA
$39.16
5
594957801 FRONT HOOD FOR COMPACTION EQUIPMENT BY HUSQVARNA
$196.28
14
594957801 FRONT HOOD FOR COMPACTION EQUIPMENT BY HUSQVARNA
$196.28
6
595067701 SCREW FOR COMPACTION EQUIPMENT BY HUSQVARNA
$4.36
7
594535101 WASHER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
8
594446801 HINGE FOR COMPACTION EQUIPMENT BY HUSQVARNA
$72.13
9
594534901 SCREW* FOR COMPACTION EQUIPMENT BY HUSQVARNA
$3.91
24
594534901 SCREW* FOR COMPACTION EQUIPMENT BY HUSQVARNA
$3.91
10
594180101 SAFETY FRAME FOR COMPACTION EQUIPMENT BY HUSQVARNA
$407.74
11
594191601 STOP PLATE FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.90
12
595067801 4,3X8X0,8 HB200 WASHER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
13
595069201 LOCK NUT FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
15
594180601 CROSSBEAM FOR COMPACTION EQUIPMENT BY HUSQVARNA
$56.25
16
594548601 NUT FOR COMPACTION EQUIPMENT BY HUSQVARNA
$4.99
17
595113401 WASHER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
18
595111401 Screw for LG 504 Plate Compactor by Husqvarna
$8.12
19
594756701 Engine Plate for LG 504 Plate Compactor by Husqvarna
$1,117.99
20
594119901 SCREW, M8 X 20 MM 8.8 FOR COMPACTION EQUIPMENT BY HUSQVARNA
$4.99
21
596889719 Screw for LG 504 Plate Compactor by Husqvarna
$5.50
22
595036601 WASHER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
23
594330401 CRANK HOLDER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$39.16
25
595127101 Bracket for LG 504 Plate Compactor by Husqvarna
Call for Price call for price call for price
