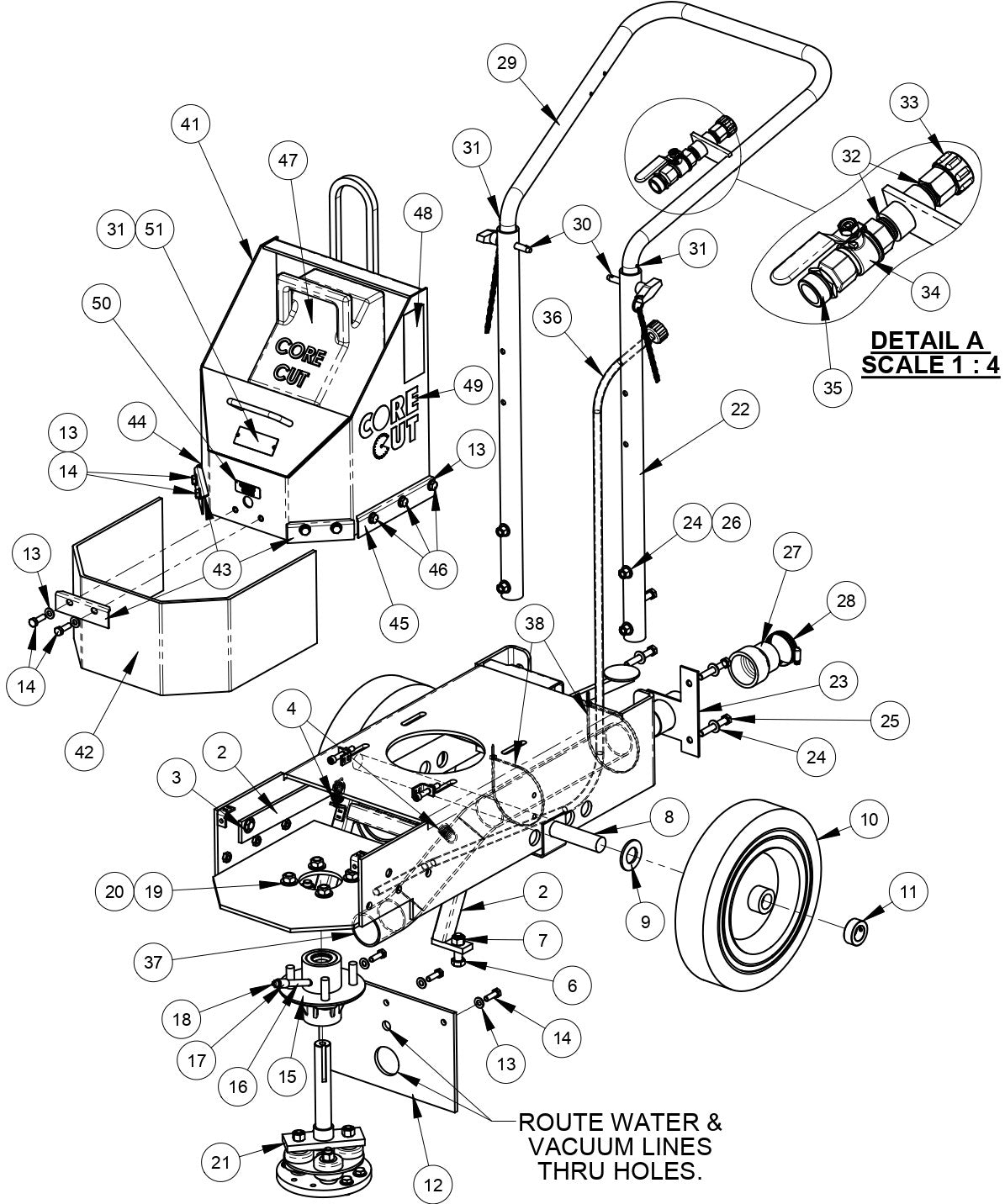

Frame Assembly Parts For CC100 Single Headed Floor Grinder By Diamond Products

Frame Assembly Parts For CC100 Single Headed Floor Grinder By Diamond Products

  • Frame Assembly Parts For CC100 Single Headed Floor Grinder By Diamond Products
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6041033 Frame Base Weldment for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
2
6041047 Leg Weldment for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$232.80
3
2900948 Retainer, 1/2" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
4
2501040 Spring, 3/4 x 2-3/4", Extension for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$26.52
5
6041048 Foot Pedal Weldment for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$50.28
6
2900139 Cap Screw, Hex Hd., 1/2-13 x 1-3/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
7
2900037 Hex Nut, 1/2-13 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
8
6041049 Axle Shaft Weldment for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$80.73
9
2900295 Flat Washer, 1" SAE for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$4.00
10
2501039 Wheel, 12 x 3 x 1" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$203.94
11
2500009 Set Collar, 1" ID for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$15.00
12
6041026 Splashguard, 7 x 11" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$47.94
13
2900022 Flat Washer 5/16" SAE 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
6041138 Flanged Hub W/ 1/8 Grease Port for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$249.00
16
3200179 Pipe Nipple, 1/8" NPT x 3" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$10.46
17
3200388 1/8" Pipe Coupling for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$8.69
18
2900062 Grease Fitting, 1/8" NPT for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
19
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
20
2900949 Lug Nut, 1/2-20 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
21
6041146 CC100 Shaft/Coupling Assy. for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$968.22
22
6041056 Handle Support for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$64.11
23
6041063 Dust Port Bracket for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$36.04
24
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
25
2900596 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
26
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
27
2503177 Hose Reducer, 2.0"-1.5" ID for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$47.94
28
3200095 Hose Clamp #32 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$6.99
29
6041023 Handle Weldment for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$118.13
30
2900257 Lock Pin, T Handle, 3/8" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$21.52
31
2900053 Rivet, 3/32" Dia. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
32
3200008 Close Nipple , 1/2" NPT for CC1200 Concrete Saw Core Cut by Diamond Products
$10.40
33
3200022 Fitting 1/2" F. Pipe to 3/4" F. Garden for CC5555-3 Concrete Saw Core Cut by Diamond Products
$11.40
34
3200027 Water Valve for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$55.99
35
3200155 Fitting, 1/2" M. Pipe to 3/4" M. Garden fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$13.76
36
6040299 Water Hose Assembly for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$25.44
37
6040595 Dust Hose, 2" ID x 27", PVC for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$40.80
38
2800278 Wire Tie, 14" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
39
2900947 Cap Screw, Soc. Hd., 5/16-18 x 2" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$7.80
40
2900141 Hex Nut, 5/16-18 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
41
6041022 Weight Box for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$445.20
42
6041027 Splash Guard, 6-1/2 x 32" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$62.71
43
6041038 Guard Clasp, 4.275" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$22.44
44
6041039 Guard Clasp, 7.75" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$31.62
45
6041052 Guard Clasp, 7.75" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$31.62
46
2900217 Cap Screw Hex Hd. 5/16-18 x 1-1/4" Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
47
2501047 Weight for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$436.59
48
1800001 Warning Label for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
49
1800506 Core Cut Decal for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$11.40
50
1800504 Label, Grease Often for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$6.55
51
1800169 Serial Number Plate US US for CC5555-3 Concrete Saw Core Cut by Diamond Products
$21.24
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
