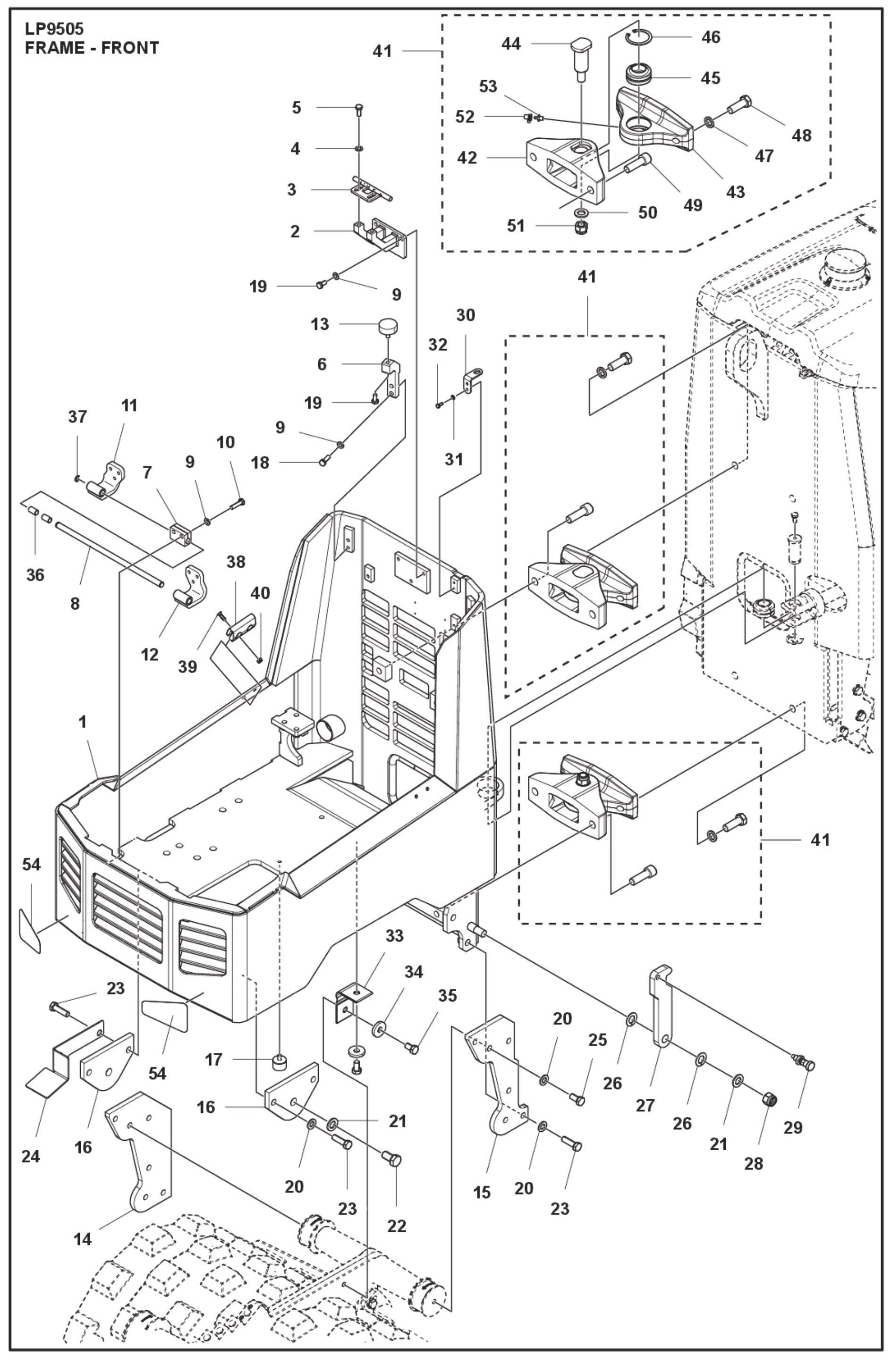

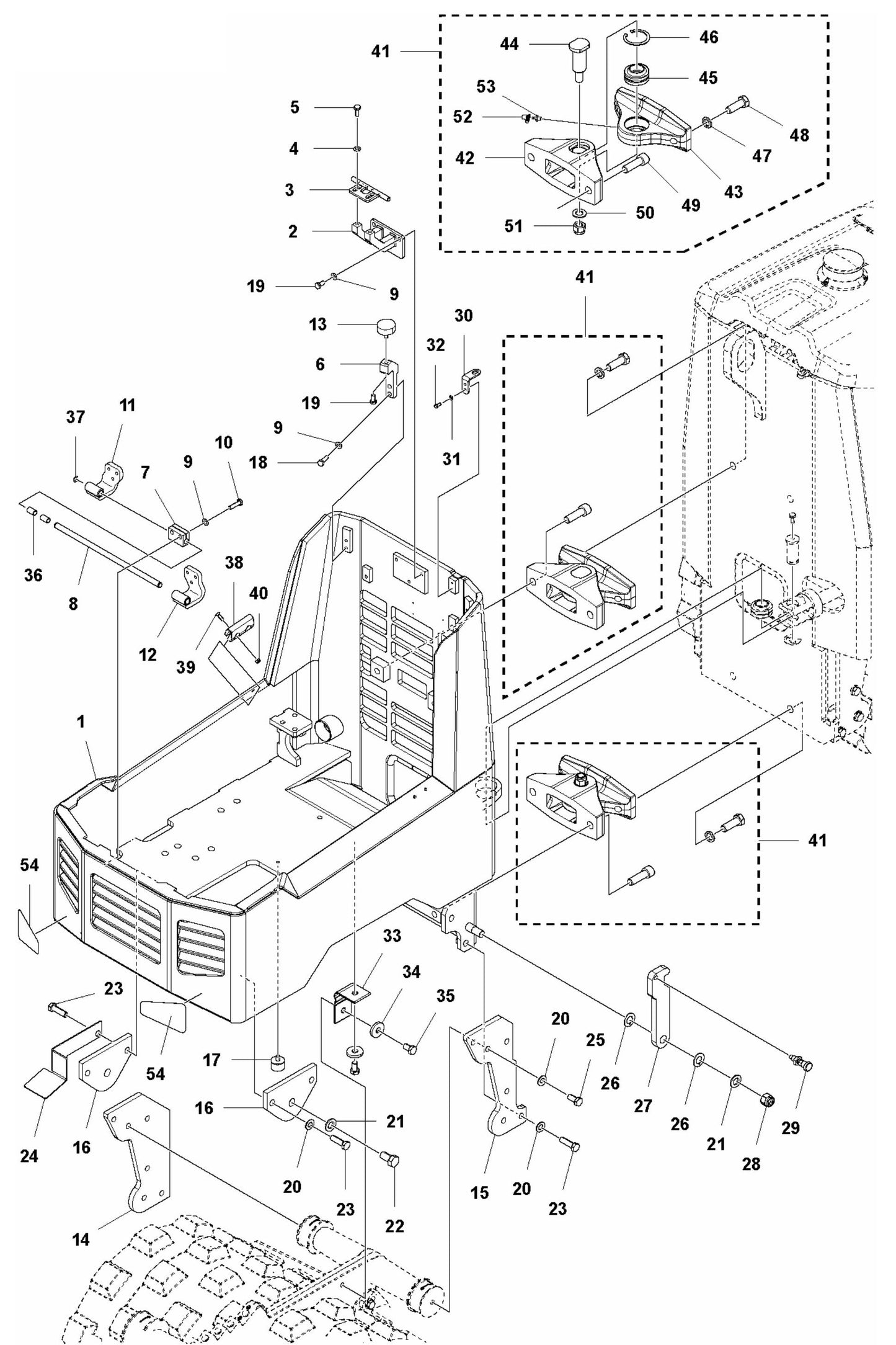

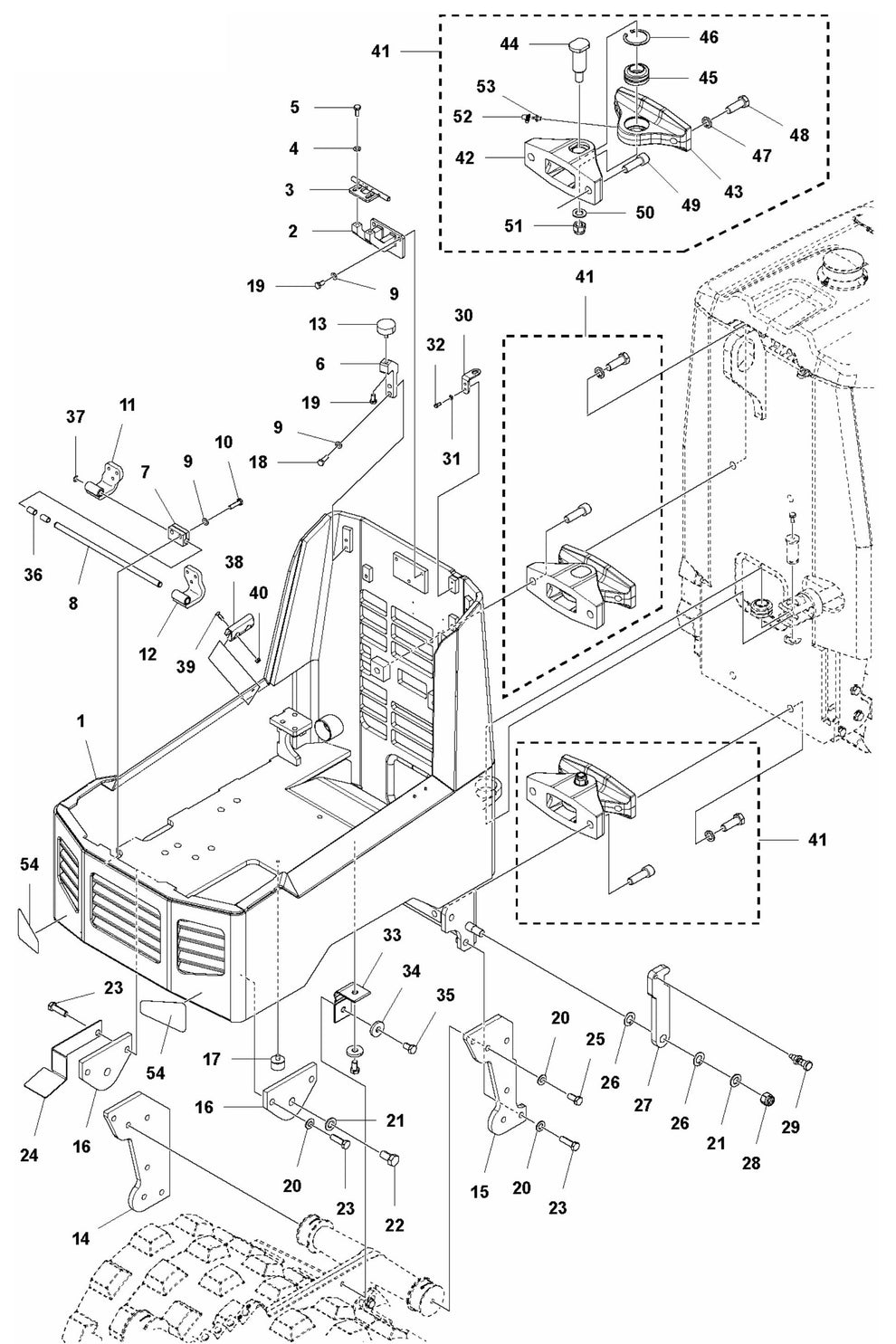

Frame- Front Assembly Parts For LP 9505 Trench Roller By Husqvarna

Frame- Front Assembly Parts For LP 9505 Trench Roller By Husqvarna

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
596381001 Frame for Husqvarna Compaction Equipment
$30,477.96
2
596885901 Bracket for Husqvarna Compaction Equipment
$180.09
3
596886001 Bracket for Husqvarna Compaction Equipment
$35.51
4
595036601 Washer for Husqvarna Compaction Equipment
$3.95
9
595036601 Washer for Husqvarna Compaction Equipment
$3.95
5
594117901 Screw for Husqvarna Compaction Equipment
$1.33
6
596379501 Bracket for Husqvarna Compaction Equipment
$81.85
7
596381501 Hub for Husqvarna Compaction Equipment
$24.13
8
596376101 Shaft for Husqvarna Compaction Equipment
$24.13
10
595344301 Screw for Concrete Vibrator by Husqvarna
$4.95
11
596380501 Hinge for Husqvarna Compaction Equipment
$32.98
12
596380601 Hinge for Husqvarna Compaction Equipment
$32.98
13
596383101 Damper for Husqvarna Compaction Equipment
$4.99
14
596378801 Bracket for Husqvarna Compaction Equipment
$834.70
15
596380301 Bracket for Husqvarna Compaction Equipment
$607.05
16
596378901 Bracket for Husqvarna Compaction Equipment
$287.34
17
596374101 Damper for Husqvarna Compaction Equipment
$1.33
18
595033401 Screw for Husqvarna Compaction Equipment
$5.76
19
595110101 HEX. HEAD SCREW M8 FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
20
595113401 WASHER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
21
595036701 PLAIN WASHER FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$2.99
50
595036701 PLAIN WASHER FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$2.99
22
596889712 Screw for Husqvarna Compaction Equipment
$12.10
23
594119101 Screw for Husqvarna Compaction Equipment
$2.99
24
597448901 Deflector for Husqvarna Compaction Equipment
$32.98
25
595345301 Screw for Husqvarna Compaction Equipment
Call for Price call for price call for price
26
596383801 Blade Bushing for Husqvarna Compaction Equipment
$7.26
27
596378401 Hook for Husqvarna Compaction Equipment
$67.18
28
595036101 Locknut for Husqvarna Compaction Equipment
$5.16
51
595036101 Locknut for Husqvarna Compaction Equipment
$5.16
29
596393201 Latch for Husqvarna Compaction Equipment
$35.51
30
596379901 Loop for Husqvarna Compaction Equipment
$7.26
31
594123801 Plane Washer for Husqvarna Compaction Equipment – Qty 10
$3.99
32
595287001 Bolt for Husqvarna Compaction Equipment
$4.99
33
596376601 Strap for Husqvarna Compaction Equipment
$8.70
34
594124001 WASHER, 13X36X6 MM FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$2.90
35
595345201 HEX. HEAD SCREW FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$2.99
36
598141501 Bearing for Husqvarna Compaction Equipment
$6.96
37
596888902 Ring for Husqvarna Compaction Equipment
$0.12
38
596885801 Support for Husqvarna Compaction Equipment
$23.17
39
597447502 Screw for Husqvarna Compaction Equipment
$3.95
40
595352001 Lock Nut for Husqvarna Compaction Equipment
Call for Price call for price call for price
41
597449001 Joint for Husqvarna Compaction Equipment
$470.47
42
596363001 Joint for Husqvarna Compaction Equipment
$91.67
43
596363101 Joint for Husqvarna Compaction Equipment
$530.16
44
596374001 Joint for Husqvarna Compaction Equipment
$87.92
45
596381901 Bearing for Husqvarna Compaction Equipment
$48.26
46
596888701 Circlip for Husqvarna Compaction Equipment
Call for Price call for price call for price
47
595044001 Washer for Husqvarna Compaction Equipment
$45.89
48
596889713 Screw for Husqvarna Compaction Equipment
$12.10
49
596889722 Screw for Husqvarna Compaction Equipment
$12.10
52
597448102 Cap for Husqvarna Compaction Equipment
$2.99
53
594126801 GREASE NIPPLE, M8 FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$4.99
54
597493601 Decal for Husqvarna Compaction Equipment
$5.95
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
