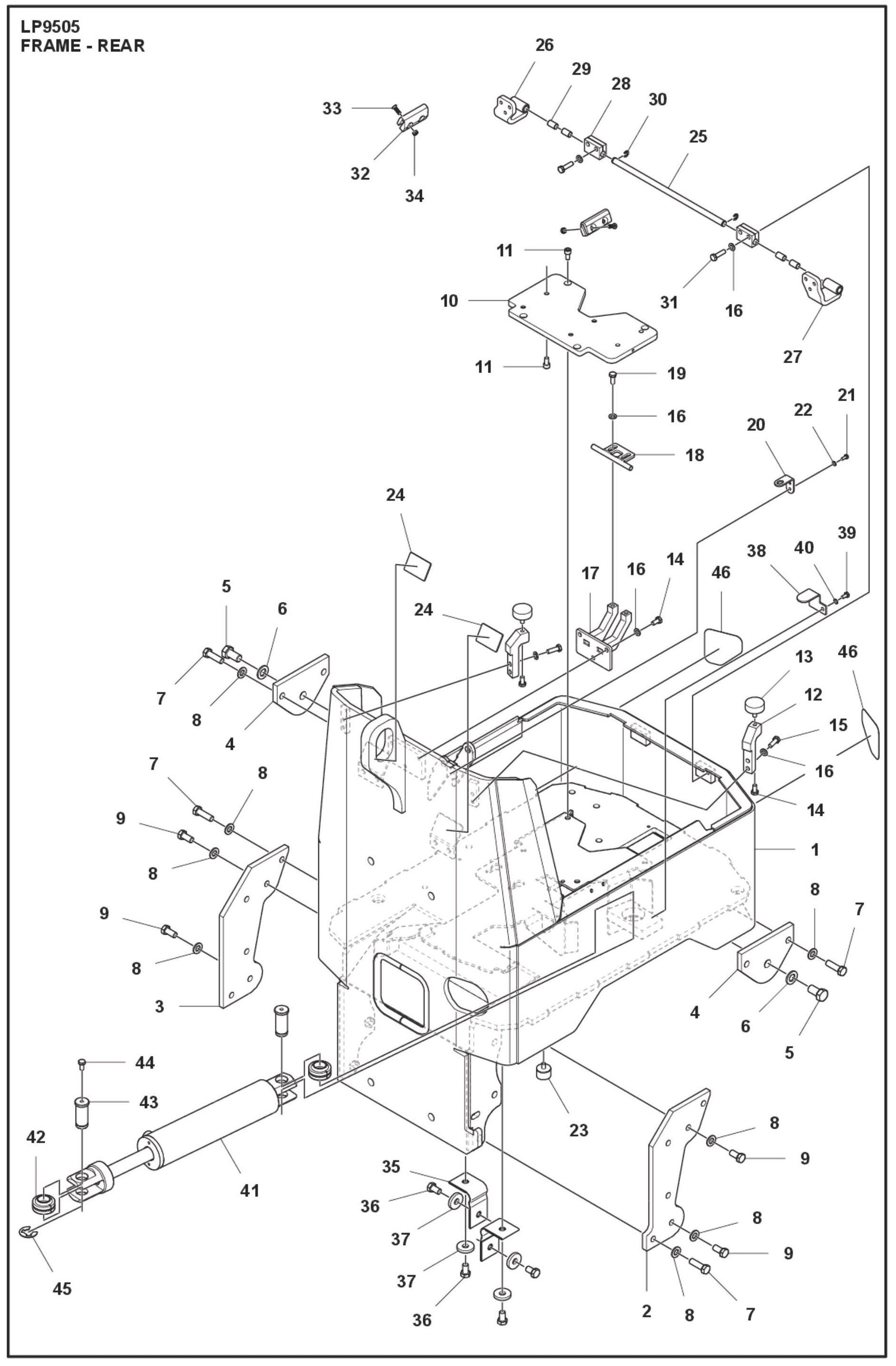

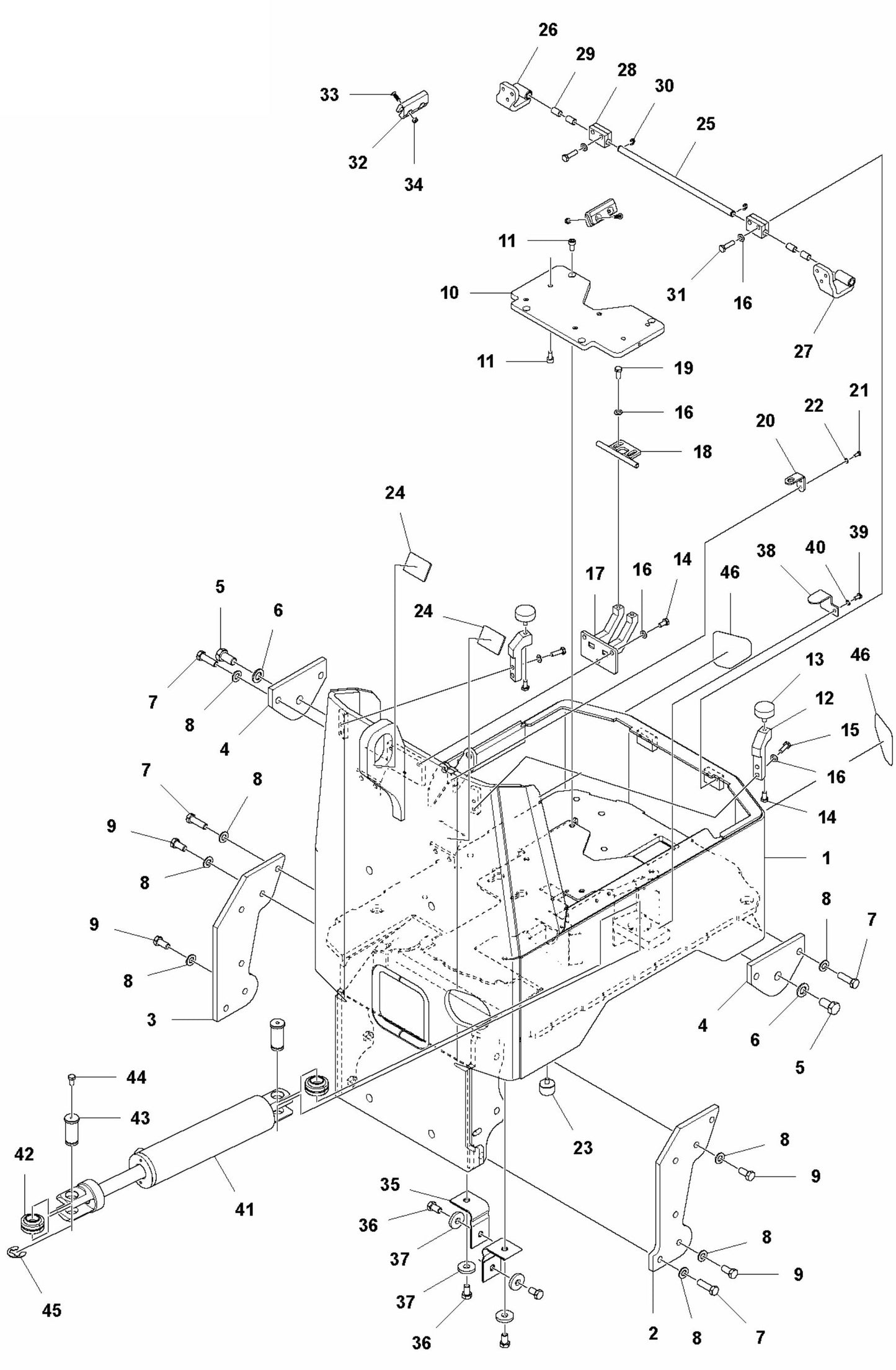

Frame-Rear Assembly Parts For LP 9505 Trench Roller By Husqvarna

Frame-Rear Assembly Parts For LP 9505 Trench Roller By Husqvarna

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
596379001 Frame for Husqvarna Compaction Equipment
$34,396.47
2
596378501 Bracket for Husqvarna Compaction Equipment
$40.37
3
596378801 Bracket for Husqvarna Compaction Equipment
$834.70
4
596378901 Bracket for Husqvarna Compaction Equipment
$287.34
5
596889712 Screw for Husqvarna Compaction Equipment
$12.10
6
595036701 PLAIN WASHER FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$2.99
7
594119101 Screw for Husqvarna Compaction Equipment
$2.99
8
595113401 WASHER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
9
595345301 Screw for Husqvarna Compaction Equipment
Call for Price call for price call for price
10
596379601 Valve for Husqvarna Compaction Equipment
$196.28
11
595034401 SCREW:M 8X 16;SOC HD CAP,$STL FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
12
596379501 Bracket for Husqvarna Compaction Equipment
$81.85
13
596383101 Damper for Husqvarna Compaction Equipment
$4.99
14
595110101 HEX. HEAD SCREW M8 FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
15
595033401 Screw for Husqvarna Compaction Equipment
$5.76
16
595036601 Washer for Husqvarna Compaction Equipment
$3.95
17
596885901 Bracket for Husqvarna Compaction Equipment
$180.09
18
596886001 Bracket for Husqvarna Compaction Equipment
$35.51
19
594117901 Screw for Husqvarna Compaction Equipment
$1.33
20
596379901 Loop for Husqvarna Compaction Equipment
$7.26
21
595287001 Bolt for Husqvarna Compaction Equipment
$4.99
22
594123801 Plane Washer for Husqvarna Compaction Equipment – Qty 10
$3.99
23
596374101 Damper for Husqvarna Compaction Equipment
$1.33
24
596374901 Support for Husqvarna Compaction Equipment
$5.14
25
596376101 Shaft for Husqvarna Compaction Equipment
$24.13
26
596380601 Hinge for Husqvarna Compaction Equipment
$32.98
27
596380501 Hinge for Husqvarna Compaction Equipment
$32.98
28
596381501 Hub for Husqvarna Compaction Equipment
$24.13
29
598141501 Bearing for Husqvarna Compaction Equipment
$6.96
30
596888902 Ring for Husqvarna Compaction Equipment
$0.12
31
595344301 Screw for Concrete Vibrator by Husqvarna
$4.95
32
596885801 Support for Husqvarna Compaction Equipment
$23.17
33
597447502 Screw for Husqvarna Compaction Equipment
$3.95
34
595352001 Lock Nut for Husqvarna Compaction Equipment
Call for Price call for price call for price
35
596376601 Strap for Husqvarna Compaction Equipment
$8.70
36
595345201 HEX. HEAD SCREW FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$2.99
37
594124001 WASHER, 13X36X6 MM FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$2.90
38
596377601 Shaft Lock for Husqvarna Compaction Equipment
$10.28
39
595344201 Screw for Husqvarna Compaction Equipment
$3.95
40
595036501 Plane Washer for Husqvarna Compaction Equipment
$5.95
41
596369401 Hydraulic Cylinder for Husqvarna Compaction Equipment
$870.11
42
596381801 Bearing for Husqvarna Compaction Equipment
$36.73
43
596373901 Shaft for Husqvarna Compaction Equipment
$26.91
44
596889709 Screw for Husqvarna Compaction Equipment
$5.95
45
596888901 Ring for Husqvarna Compaction Equipment
$2.99
46
597493602 Decal for Husqvarna Compaction Equipment
$5.95
