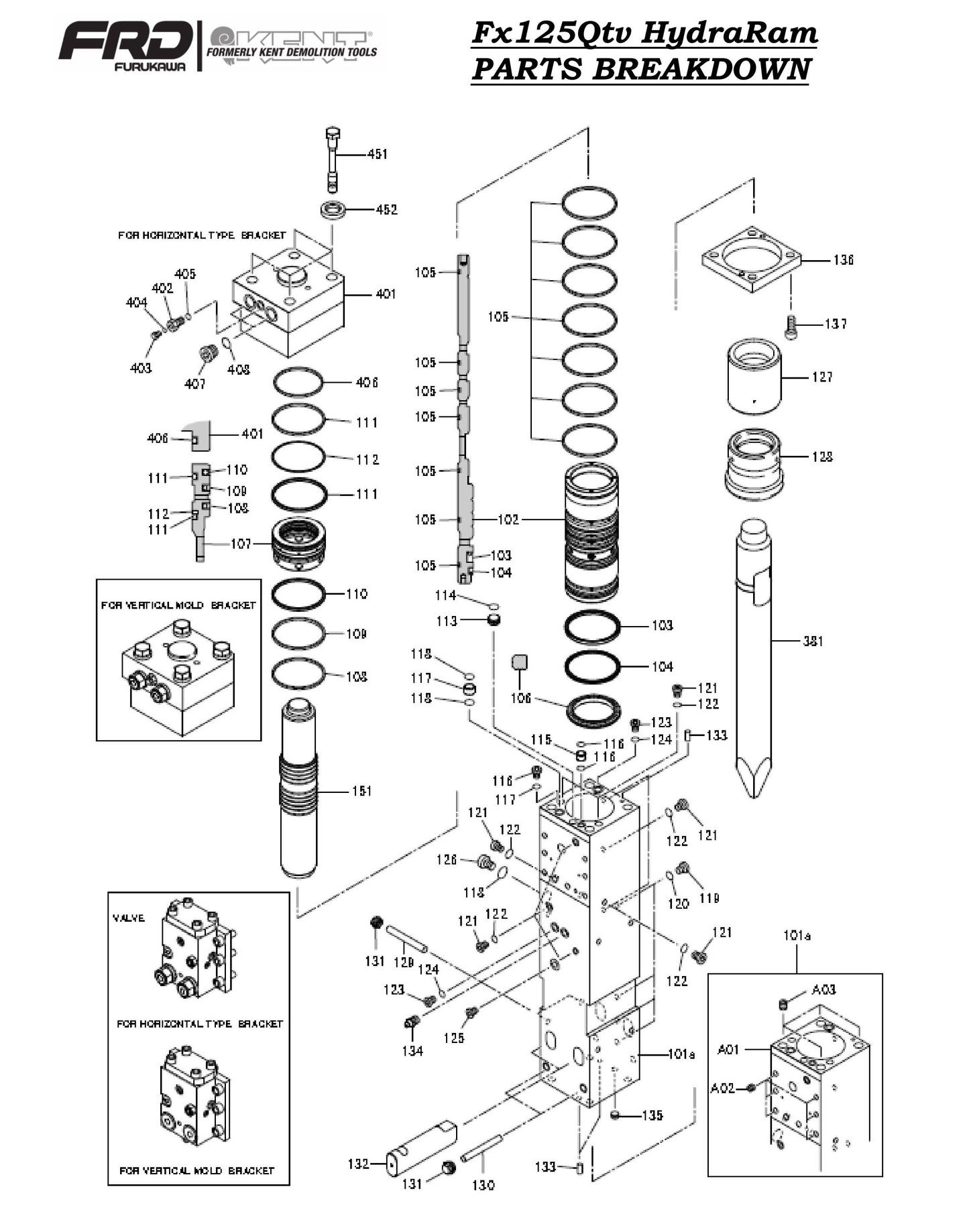

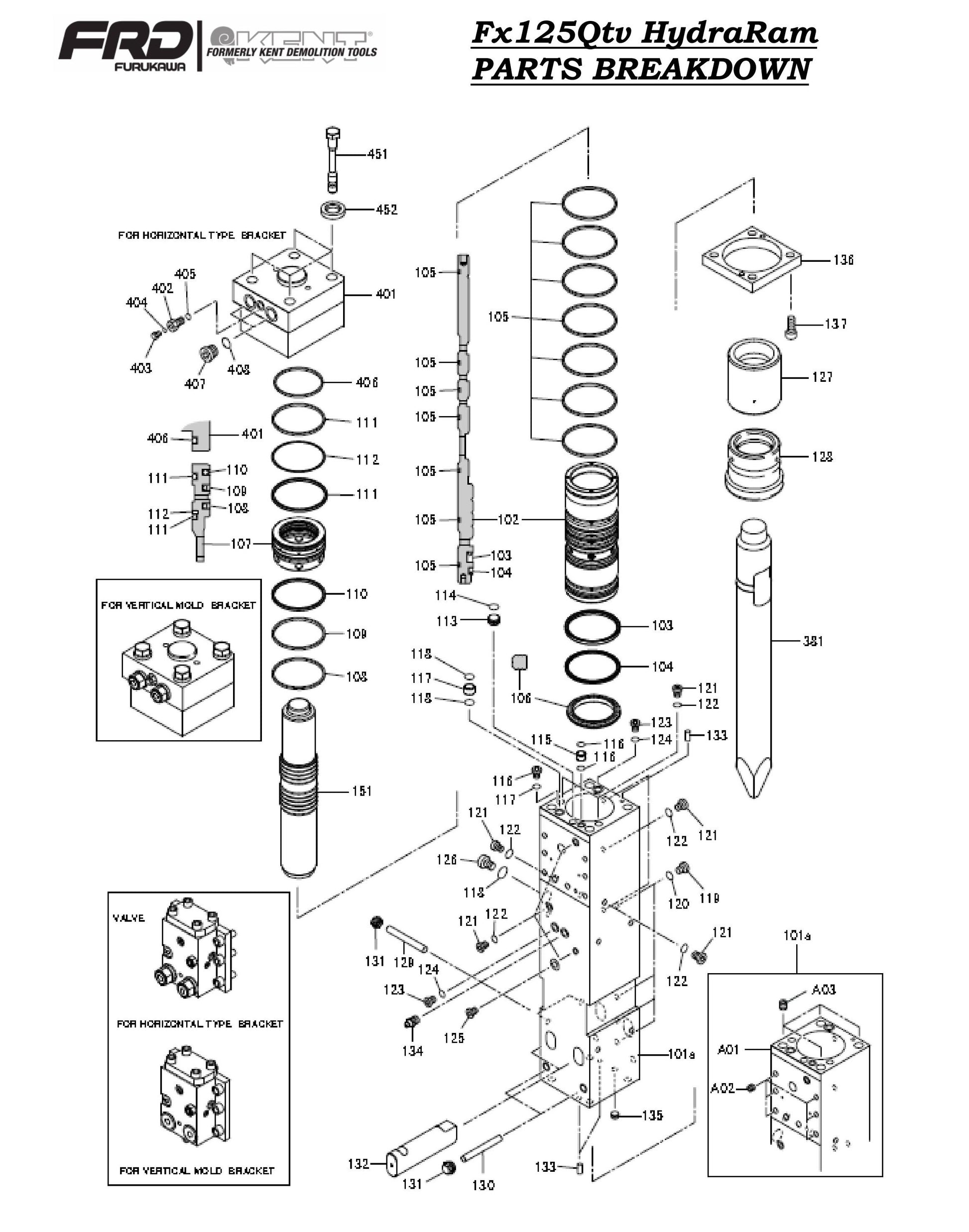

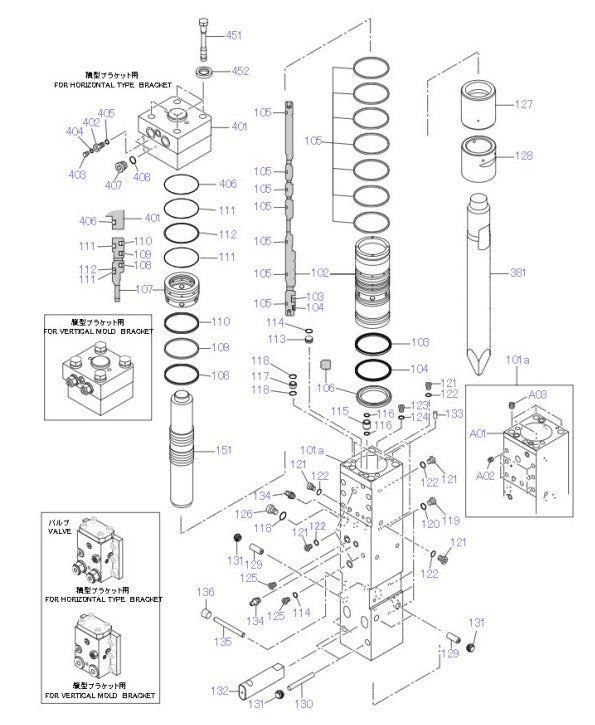

Fx125Qtv Hydraram Parts Breakdown

Name: Fx125Qtv Hydraram Parts Breakdown
Brand: danse-usa
Availability: OutOfStock

1 1

100% genuine product

Authorised dealer

View all diagrams for this Model

Ref.	Product details	Price	Action
101a	K002204100010 Cylinder for Fx125 Breaker by FRD Kent	Call for Price	call for price call for price
A02	KHB20G10105 Heli-Sert Insert for Fx125 Breaker by FRD Kent	$23.87
A03	K002204900010 Heli-Sert for Fx125 Breaker by FRD Kent	$35.18
102	K002204100030 Cylinder Liner for Fx125 Breaker by FRD Kent	$4,688.30
103	K002204100040 Packing [/SA] for Fx125 Breaker by FRD Kent	$104.50
104	K002201100070 Scraper[/SA] for Fx125 Breaker by FRD Kent	Call for Price	call for price call for price
105	K002204100250 Static Seal [/SA] for Fx125 Breaker by FRD Kent	$75.02
106	K002204100090 Distance Washer for Fx125 Breaker by FRD Kent	Call for Price	call for price call for price
107	K002204100100 Seal Retainer for Fx125 Breaker by FRD Kent	$1,432.97
108	K002204100060 Glide Ring [/SA] for Fx125 Breaker by FRD Kent	Call for Price	call for price call for price
109	K002204100070 Step Seal [/SA] for Fx125 Breaker by FRD Kent	$100.00
110	K002204100080 Glide Ring [/SA] for Fx125 Breaker by FRD Kent	Call for Price	call for price call for price
111	K16101100130 O-Ring [/SA] for Fx125 Breaker by FRD Kent	$12.48
406	K16101100130 O-Ring [/SA] for Fx125 Breaker by FRD Kent	$12.48
112	K26203100130 Backup Ring [/SA] for Fx125 Breaker by FRD Kent	$35.82
113	K002301100060 Plug [/SA] for Fx125 Breaker by FRD Kent	$45.47
114	K16001100018 O-Ring for O-Ring Breaker by FRD Kent	$3.95
405	K16001100018 O-Ring for O-Ring Breaker by FRD Kent	$3.95
115	KF410121 Bush [/SA] for Fx125 Breaker by FRD Kent	$26.05
116	K16001100020 O-Ring [/SA] for Fx125 Breaker by FRD Kent	$3.95
117	KHB10G10121 Bush [/SA] for Fx125 Breaker by FRD Kent	$41.68
118	K16001100024 O-Ring [/O] [/S] for F6, F9 and Fx125 Breaker by FRD Kent	$3.95
119	K08489601000 Plug for Fx125 Breaker by FRD Kent	$6.12
120	K16001100008 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent	$3.95
121	K08489602000 Plug for Fx125 Breaker by FRD Kent	$6.12
122	K16001100011 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent	$3.95
123	K08489603000 Plug for Fx125 Breaker by FRD Kent	$6.24
124	K16001100014 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent	$3.95
125	K08489604000 Plug for Fx125 Breaker by FRD Kent	$8.52
126	K08489606000 Plug for Fx125 Breaker by FRD Kent	$13.56
128	K002204100120 Cover, Front (SN ~3312) for Fx125 Breaker by FRD Kent	$1,942.92
128	K002204100290 Bushing, Front (SN 3312~) for Fx125 Breaker by FRD Kent	$1,100.00
129	K002204100130 Pin, Stop (SN ~3312) for Fx125 Breaker by FRD Kent	$67.14
129	K002204100240 Pin, Stop (SN 3312~) for Fx125 Breaker by FRD Kent	$54.18
130	K002203100140 Pin, Stop (SN ~3312) for Fx125 Breaker by FRD Kent	$50.28
131	K002407100110 Plug A [/SB] for Fx125 Breaker by FRD Kent	$7.02
132	K002204100140 Rod Pin for Fx125 Breaker by FRD Kent	$652.85
133	KF2210125 Knock Pin (SN ~3312) for Fx125 Breaker by FRD Kent	$22.36
134	K00110020123 Grease Fitting for F6, F9 and Fx125 Breaker by FRD Kent	$14.60
135	K16615202000 Plug for Fx125 Breaker by FRD Kent	$9.90
136	K002204100150 Armor Plate (SN ~3312) for Fx125 Breaker by FRD Kent	$658.02
137	K10203220040 Socket Bolt for Fx125 Breaker by FRD Kent	$7.02
151	K002204110010 Piston for Fx125 Breaker by FRD Kent	$4,063.27
381	KFX12525221 Blunt for Fx125 Breaker by FRD Kent	$1,080.00
381	KFX12525224 Chisel for Fx125 Breaker by FRD Kent	$1,080.00
381	KFX12525225 Moil for Fx125 Breaker by FRD Kent	$1,080.00
401	K002204300010 Back Head for Fx125 Breaker by FRD Kent	Call for Price	call for price call for price
402	KHB15G30103 Charging Valve for Fx125 Breaker by FRD Kent	$334.58
403	KHB20G30109 Plug for Fx125 Breaker by FRD Kent	$36.64
404	K16001100006 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent	$4.99
407	K08489610000 Plug for Fx125 Breaker by FRD Kent	$39.74
408	K16101100029 O-Ring [/SB] for Fx125 Breaker by FRD Kent	$3.95
451	K002204360010 Bolt for Fx125 Breaker by FRD Kent	$112.52
452	K002204360020 Washer for Fx125 Breaker by FRD Kent	$47.70
*	KF620207 Stop Pin (SN 3312~) for Fx125 Breaker by FRD Kent	Call for Price	call for price call for price
*	HB5G20106 Dust Plug (SN 3312~) for Fx125 Breaker by FRD Kent	$15.54
*	KF12008 Front Port Adapter with O-Ring for Fx125 Breaker by FRD Kent	$61.33
*	K902204920020 Cylinder Seal Kit for Fx125 Breaker by FRD Kent	$965.89
*	K902204920030 Back Head Seal Kit for Fx125 Breaker by FRD Kent	$46.63
