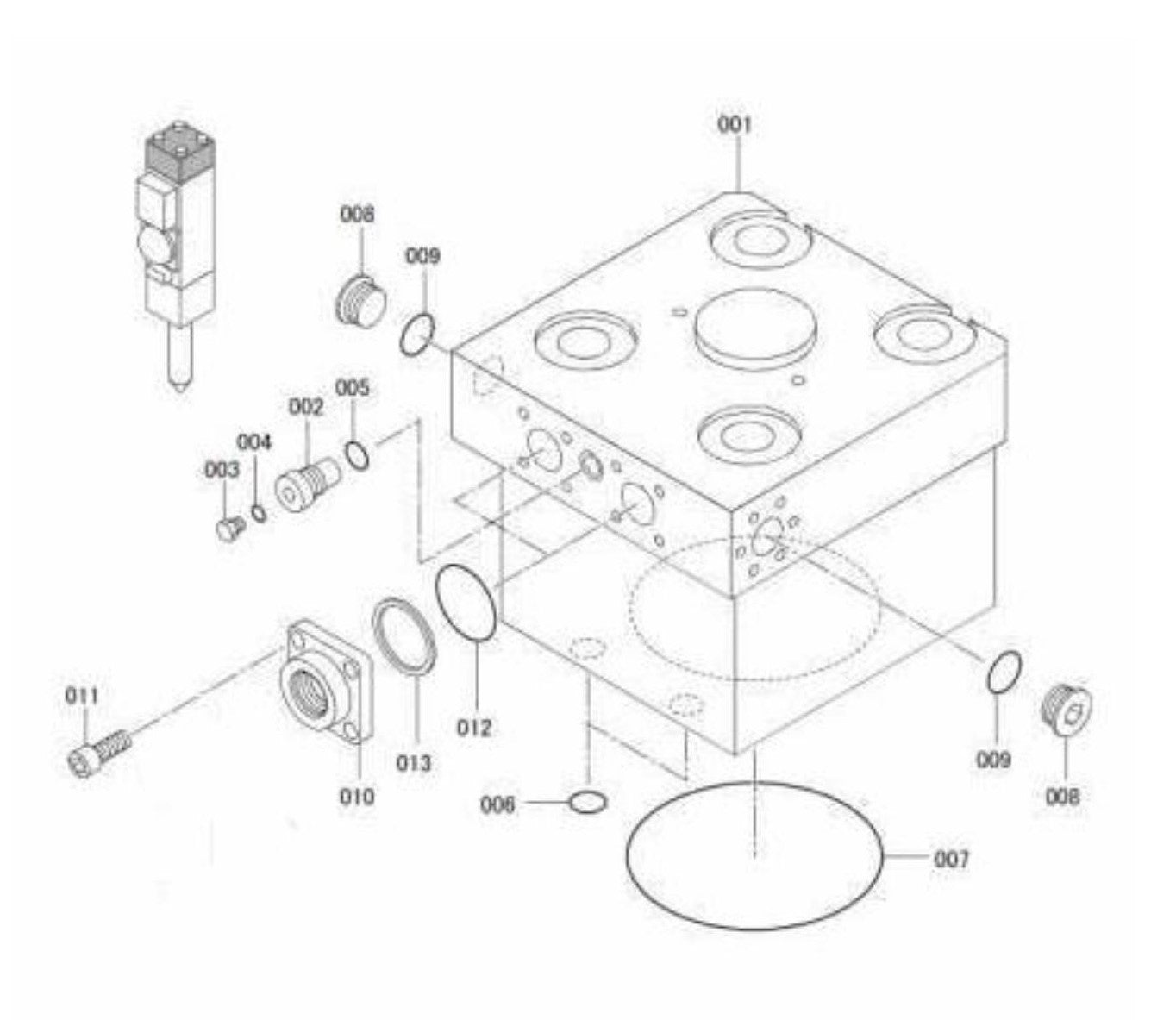

FX770Qtv Serial No.1001 ~ & Up Back Head Assembly Parts

FX770Qtv Serial No.1001 ~ & Up Back Head Assembly Parts

  • FX770Qtv Serial No.1001 ~ & Up Back Head Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
001
K002410300010 Back Head for Fx770 breaker by FRD Furukawa Kent
Call for Price call for price call for price
002
KHB15G30103 Charging Valve for F6 Breaker by FRD Kent
$334.58
003
KHB20G30109 Plug for Fx125 Breaker by FRD Kent
$36.64
004
K16001100006 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent
$4.99
005
K16001100018 O-Ring for O-Ring Breaker by FRD Kent
$3.95
006
K16101100040 O-Ring for Fx770 breaker by FRD Furukawa Kent
$2.96
007
K16002100280 O-Ring for Fx770 breaker by FRD Furukawa Kent
Call for Price call for price call for price
008
K08489610000 Plug for Fx125 Breaker by FRD Kent
$39.74
009
K16001100029 O-Ring for Fx770 breaker by FRD Furukawa Kent
$2.58
010
K11439 Port Adapter for Fx770 breaker by FRD Furukawa Kent
$404.84
011
K10203314035 Socket Bolt for Fx770 breaker by FRD Furukawa Kent
$9.38
012
K16102500045 O-Ring for Fx770 breaker by FRD Furukawa Kent
$12.02
013
K26202200045 Back-Up Ring for Fx770 breaker by FRD Furukawa Kent
$10.29
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
