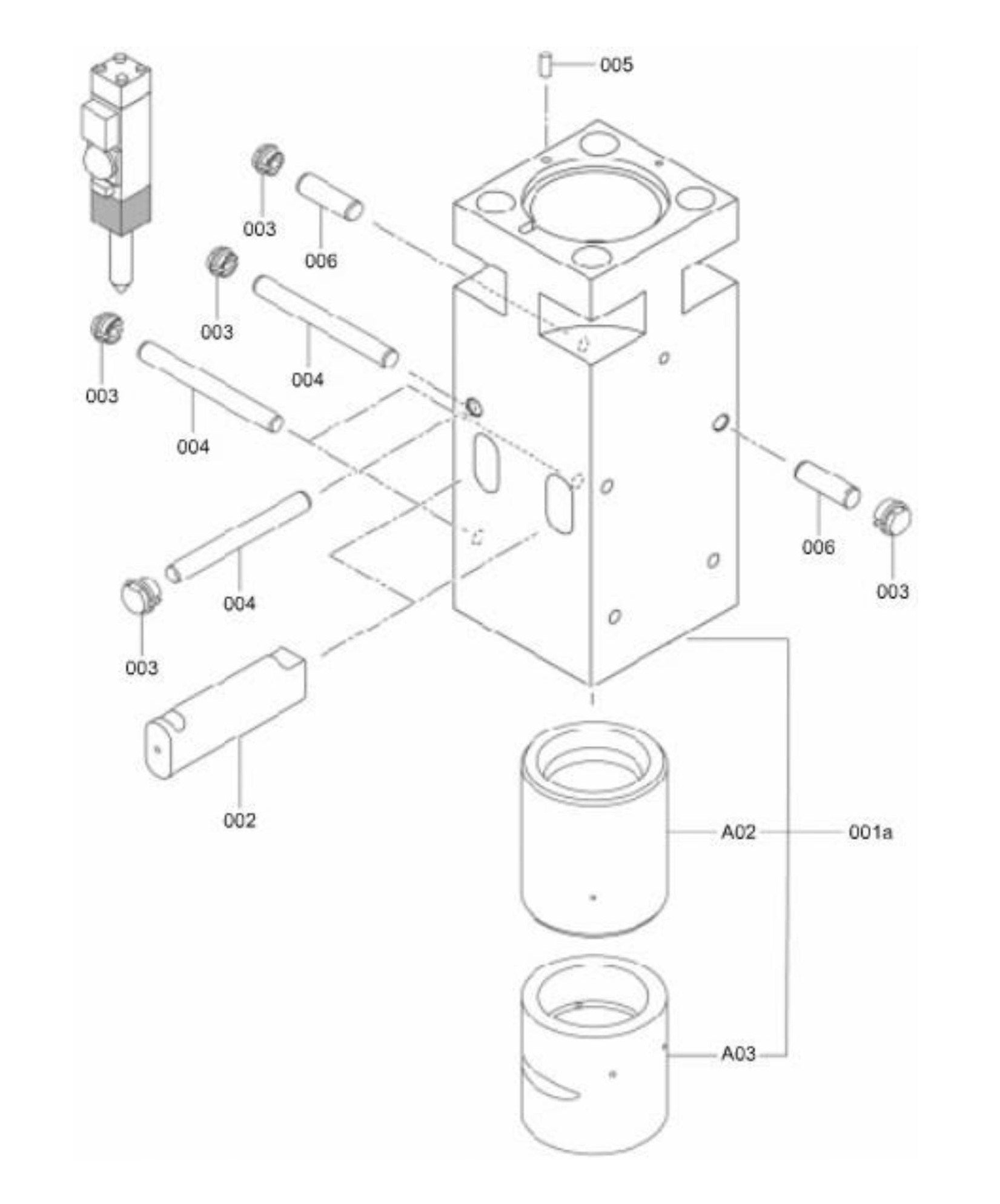

FX770Qtv Serial No.1001 ~ & Up Front Head Assembly Parts

FX770Qtv Serial No.1001 ~ & Up Front Head Assembly Parts

  • FX770Qtv Serial No.1001 ~ & Up Front Head Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
001a
K002410200010 Front Head Assembly for Fx770 breaker by FRD Furukawa Kent
$61,523.40
A02
K002410200041 Front Holder for Fx770 breaker by FRD Furukawa Kent
$6,552.90
A03
K002410200051 Front Bushing for Fx770 breaker by FRD Furukawa Kent
$8,016.85
002
K002410200060 Rod Pin for Fx770 breaker by FRD Furukawa Kent
$2,897.30
003
K002410200070 Plug for Fx770 breaker by FRD Furukawa Kent
$17.98
004
K002410200080 Stop Pin for Fx770 breaker by FRD Furukawa Kent
$225.08
005
K00130020118 Knock pin for F100 breaker by FRD Furukawa Kent
$25.20
006
K002410200090 Stop Pin for Fx770 breaker by FRD Furukawa Kent
$124.13
