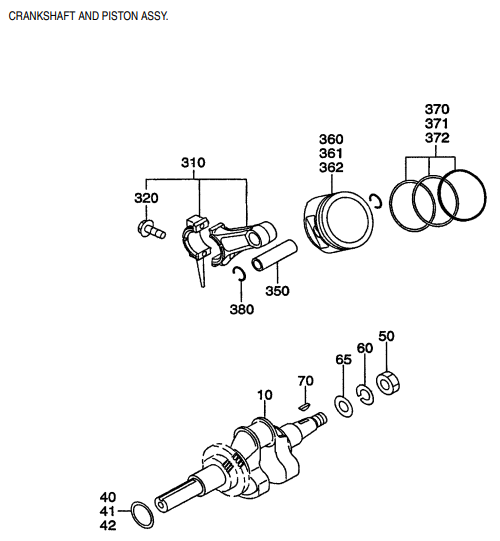

GA-6RE GA-6REA Robin EH-360YS2420 Engine Crankshaft And Piston Assembly Parts By Multiquip

GA-6RE GA-6REA Robin EH-360YS2420 Engine Crankshaft And Piston Assembly Parts By Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
10
2672070201 Crankshaft Cp for GA6RE GA6REA Portable Pipe Generators by Multiquip
Call for Price call for price call for price
40
0230350160 SPACER (T=0.6), G5710R BY MAKITA
$9.32
41
0230350170 SPACER (T=0.8), G5710R BY MAKITA
Call for Price call for price call for price
42
0230350180 SPACER (T=1.0), G5710R BY MAKITA
$9.32
50
0021818000 Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
60
0032018000 Spring Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
65
0031018000 WASHER, G5711R BY MAKITA
$5.99
70
0053205401 WOODRUFF KEY, G5710R BY MAKITA
$9.32
310
2672250110 Connecting Rod Assy.. for GA6RE GA6REA Portable Pipe Generators by Multiquip
$190.05
320*
0010508400 FLANGE BOLT BY MAKITA
$9.32
350
2632330103 PISTON PIN, G12000R BY MAKITA
$11.18
360
2672340103 Piston, Std. for GA6RE GA6REA Portable Pipe Generators by Multiquip
$84.52
361
2672340203 Piston, 0.25 O.S for GA6RE GA6REA Portable Pipe Generators by Multiquip
$228.17
362
2672340303 Piston, 0.50 O.S. for GA6RE GA6REA Portable Pipe Generators by Multiquip
$86.15
370
2672350107 Piston Ring Set, Std. for GA6RE GA6REA Portable Pipe Generators by Multiquip
$93.75
371
2672350207 Piston Ring Set, 0.25 O.S for GA6RE GA6REA Portable Pipe Generators by Multiquip
$97.31
372
2672350307 Piston Ring Set, 0.50 O.S. for GA6RE GA6REA Portable Pipe Generators by Multiquip
Call for Price call for price call for price
380
0565210020 CLIP, G6100R BY MAKITA
$5.99
View full details
