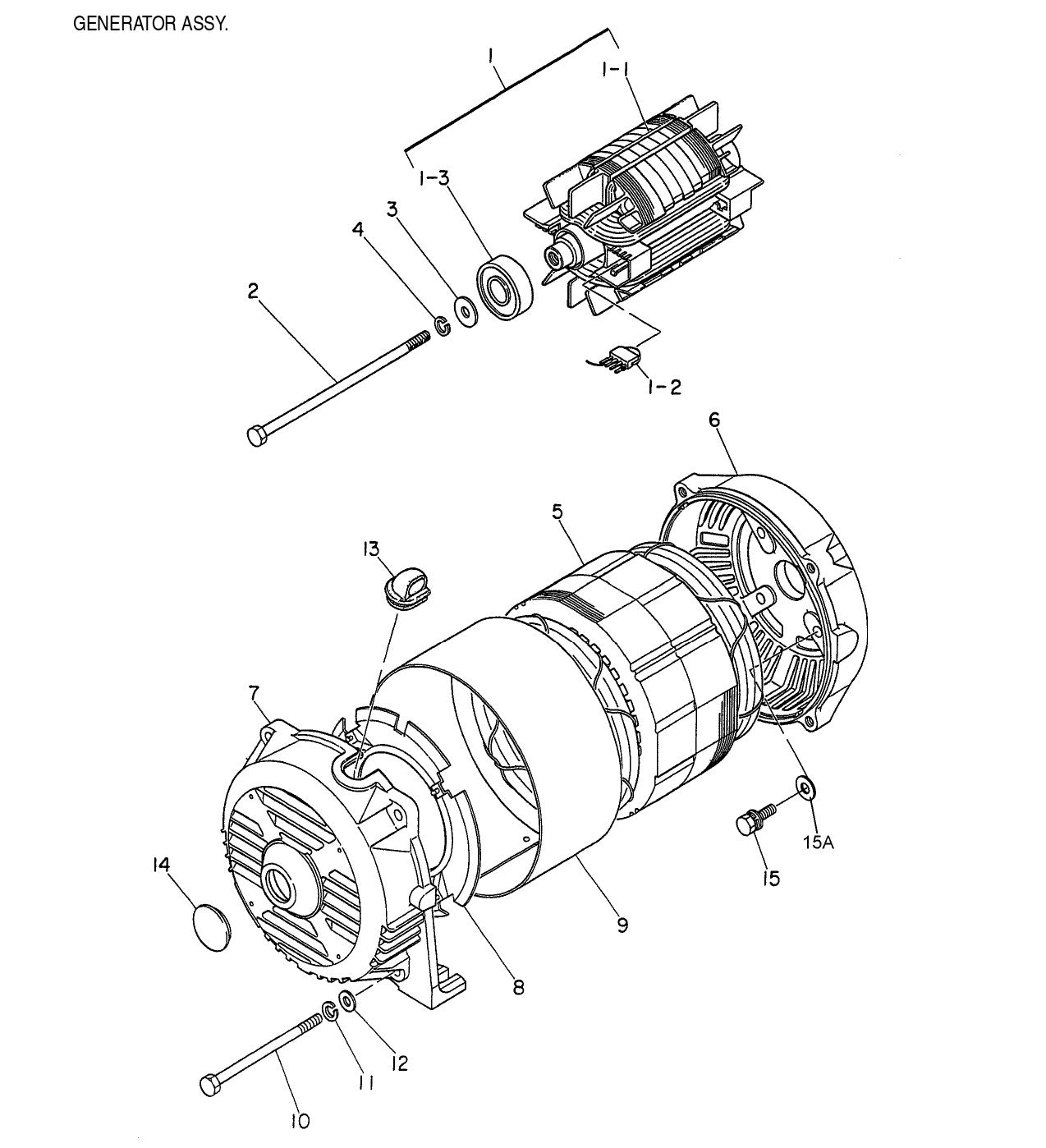

GA29R GA-2.9R Generator Assy. Parts By Multiquip

GA29R GA-2.9R Generator Assy. Parts By Multiquip

  • GA29R GA-2.9R Generator Assy. Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
7931000203 Rotor Assembly for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$487.83
1-2
0601823213 Rectifier for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$42.23
1-2
0601822638 Surge Absorber for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$6.33
1-3
0603000040 Bearing for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$37.25
2
7681017104 Set Bolt, Rotor for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$5.75
3
0801086004 Set Washer, Bearing for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$4.24
4
0040008000 Spring Washer for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$2.19
15A
0040008000 Spring Washer for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$2.19
5
7921341803 Armature Assembly for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$1,085.56
5
A2135000203 Armature Assembly for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$762.71
6
7931315002 End Bracket (C Side) for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$745.69
7
7931315102 End Bracket (B Side) for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$156.66
8
7875021523 Guide Panel, Air for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$9.09
9
7681331003 Cover for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$19.43
10
7681344204 Set Bolt, Stator for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$2.95
11
0040006000 Spring Washer for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$2.19
12
0041206000 Plain Washer for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$2.19
13
7871329514 Grommet for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$6.70
14
0601851760 Cap for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$7.25
15
0013608025 Hex. Head Bolt for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$5.45
15
0013608020 Hex. Head Bolt for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$6.33
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
