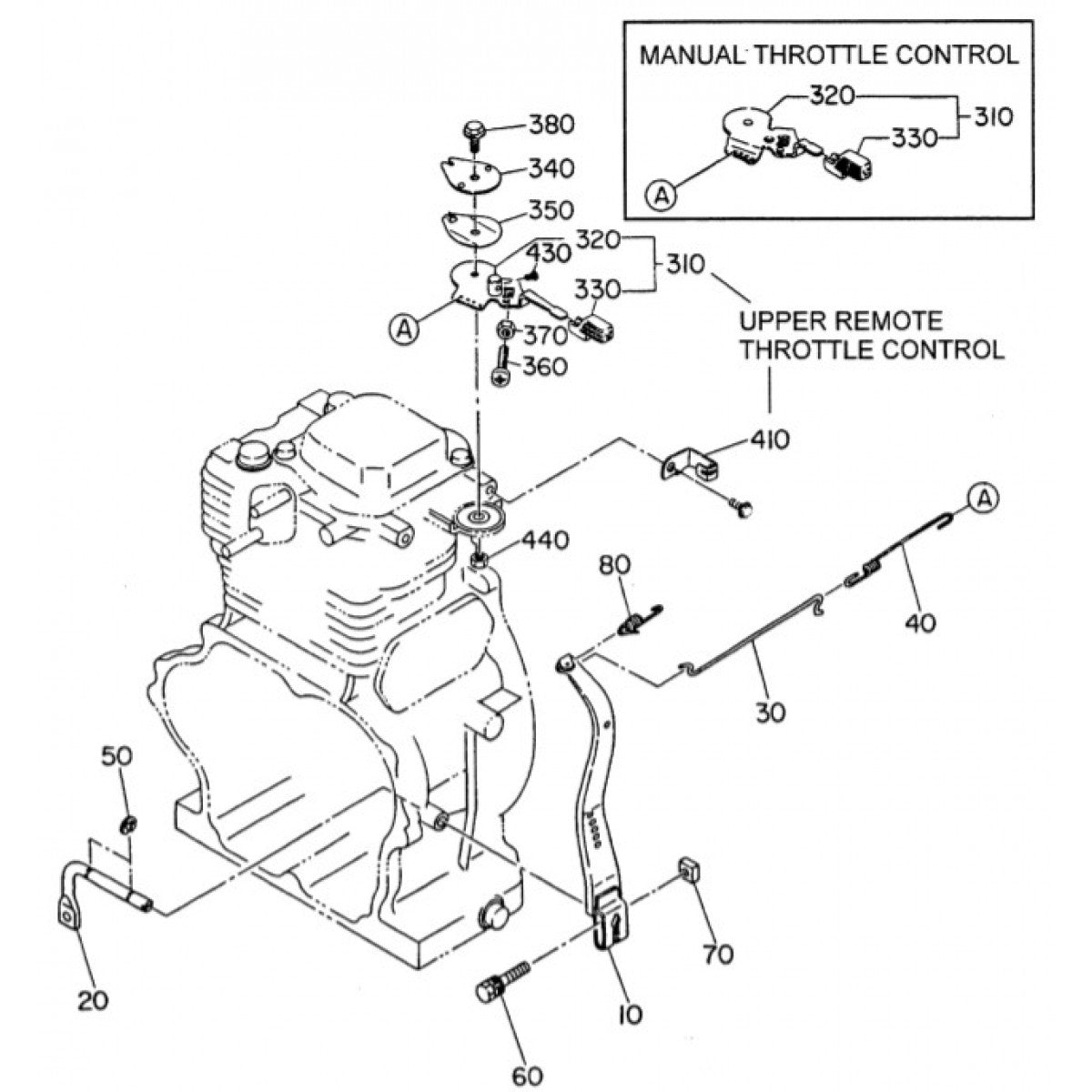

GA36RZ2 GA-3.6RZ2 Robin EH-25 Engine - Governor Assembly Parts by Multiquip

GA36RZ2 GA-3.6RZ2 Robin EH-25 Engine - Governor Assembly Parts by Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
10
2544230101 Governor Lever for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$16.91
20
2464220103 Governor Shaft for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
30
2544270101 Governor Rod for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$12.39
40
2544280103 Rod Spring for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$5.83
50
0031306000 Clip for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
60
0011406250 Bolt & Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
70
0186060020 Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
80
2544250113 Governor Spring for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$5.75
310
2274330200 Speed Control Assembly for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$20.94
320
2274330201 Speed Control Cp for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
330
2274360103 Knob for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$12.63
340
2274350113 Stop Plate for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$6.50
350
2274500203 Spring Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.95
360
0043106300 Screw Panhead for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
380
0110060050 Flange Bolt for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
410
2544420001 Wire Bracket for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
430
0043500480 Screw Panhead for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
370
020106050 Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
440
020106050 Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
