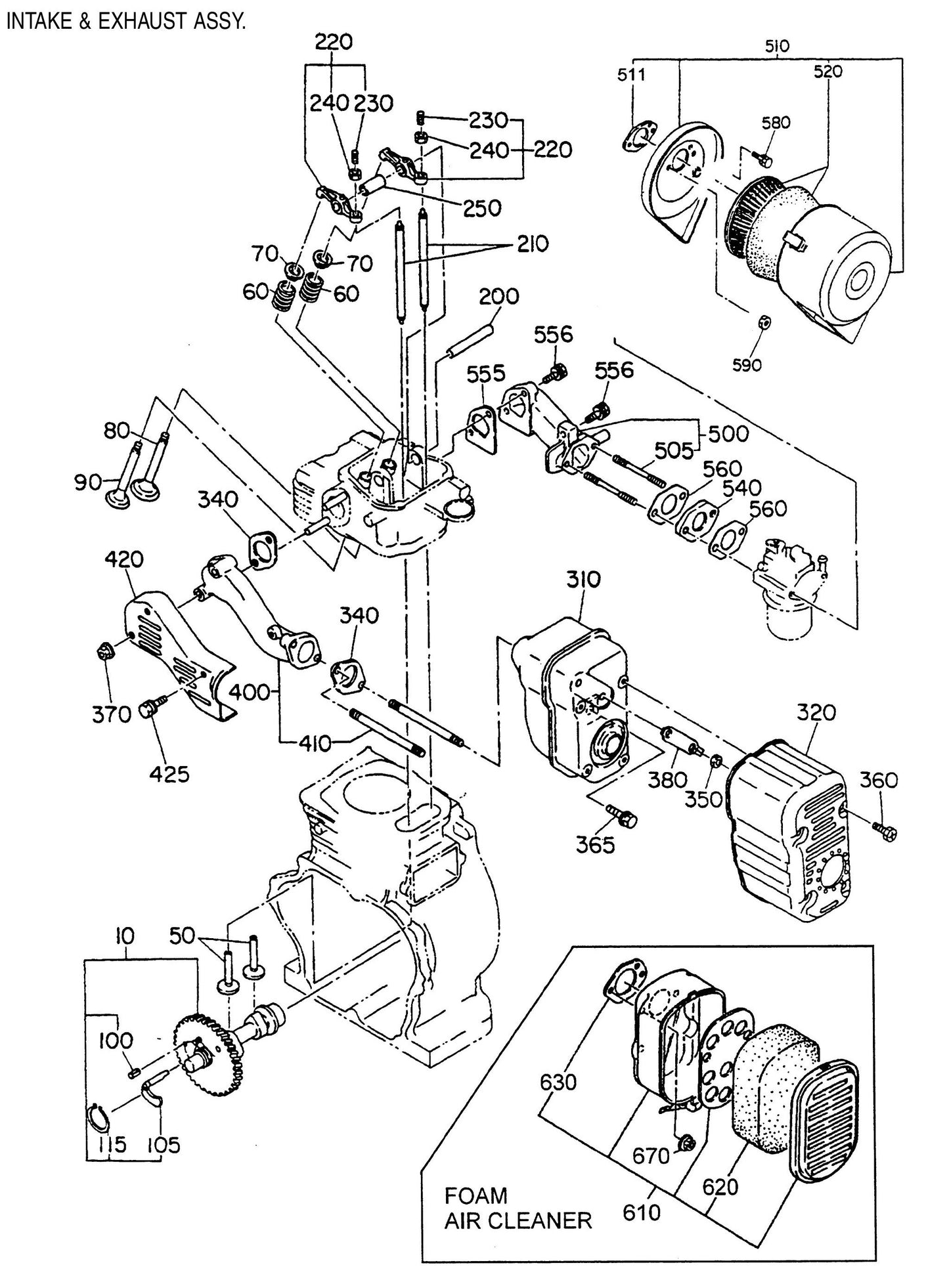

GA36RZ2 GA-3.6RZ2 Robin EH-25 Engine - Intake And Exhaust Assembly Parts by Multiquip

GA36RZ2 GA-3.6RZ2 Robin EH-25 Engine - Intake And Exhaust Assembly Parts by Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
10
2543170101 Camshaft for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$136.46
50
2543330103 Tappet for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$15.09
60
2543360103 Valve Spring for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$3.85
70
2463370113 Spring Retainer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$7.10
80
2543340103 Intake Valve for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$16.57
90
2543350103 Exhaust Valve for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$113.83
100
0051904100 Spring Pin for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
105
2543640103 Release Lever for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
115
0031522000 Snap Ring for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$3.25
200
2393500103 Rocker Shaft for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$14.88
210
2463610110 Rocker Arm for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$25.97
220
2463610110 Rocker Arm for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$25.97
230
0149080021 Adjusting Screw for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$6.33
240
0170080090 Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$6.33
250
2543612013 Spacer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
310
25430410101 Muffler for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
320
2543420101 Muffler Cover for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
340
2463520103 Gasket Muffler for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$4.24
350
0170080030 Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$3.25
360
0152050010 Tapping Screw for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
365
0011008160 Bolt& Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$6.33
370
0180080010 Flange Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$5.45
380
2543610103 Lock Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.95
400
2543400101 Exhaust Pipe for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
410
0105080410 Stud for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$6.33
420
2543480101 Exhaust Pipe Cover for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
425
0110060050 Flange Bolt for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
500
2543300101 Intake Pipe for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$102.06
505
0105060190 Stud for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$4.24
510
2543260210 Air Cleaner Assembly for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$104.16
511
2343600308 Packing for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
520
2343260407 Element for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$36.67
540
2343290103 Insulator for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$7.99
555
2463600113 Gasket Inpipe for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$6.36
556
0011308280 Bolt& Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
560
2343590203 Gasket 2 (Insulator) for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$1.99
580
0011006120 Bolt& Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
590
2263921200 Nut & Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
610
2393260110 Air Cleaner Assembly for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$90.21
620
2343600203 Element for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$26.90
630
2343600303 Gasket for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
670
0023706000 Flange Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
