GA6RZ2 GA-6RZ2— Generator Assembly Parts By Multiquip

GA6RZ2 GA-6RZ2— Generator Assembly Parts By Multiquip

  • GA6RZ2 GA-6RZ2— Generator Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
7901000503 Rotor Assy for GA6RZ2 Portable Pipe Generators by Multiquip
$764.56
1-1*
7901002403 Rotor Assembly for GA36HZ GA36H GA36HA Portable Generator with Honda Gasoline Engine by MQ Multiquip
$1,226.40
1-2*
0601823207? Rectifier, D3Sb60 for GA36HZ GA36H GA36HA Portable Generator with Honda Gasoline Engine by MQ Multiquip
Call for Price call for price call for price
0
0601822638 Surge Absorber for GA36HR Portable Generator with Honda GX240RT 2EDN2 Gasoline Engine by MQ Multiquip
$6.33
1-3*
0071706304 Bearing 6304 for GA6HB GA6HEB Portable Generator with Honda GX340R2EDN2 GX340R2EDE2 Gasoline Engine by MQ Multiquip
$198.00
2
7871017004 Set Bolt, Rotor for GA6RZ2 Portable Pipe Generators by Multiquip
$15.94
3
0801086104 Set Washer, Bearing for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$3.25
4
0040010000 Spring Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
5
7901341503 Armature Assy. for GA6RZ2 Portable Pipe Generators by Multiquip
$1,611.46
6
7901315202 End Bracket for GA6RZ2 Portable Pipe Generators by Multiquip
$251.85
7
7871315102 End Bracket .. for GA6RZ2 Portable Pipe Generators by Multiquip
$187.21
8
7875021513 Guide Panel, Air for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$8.53
9
7871331003 Cover for GA36HZ GA36H GA36HA Portable Generator with Honda Gasoline Engine by MQ Multiquip
$19.43
10
7871344204 Set Bolt, Stator for GA6RZ2 Portable Pipe Generators by Multiquip
$3.80
11
0040008000 Spring Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
12
031108160 Plain Washer M8 for Multiquip Mikasa MVC77 Plate Tamper Compactor
$2.19
13
7871329514 Grommet for GA23R2 A.C. Portable Generator by MQ Multiquip
$6.70
14
0601851760 Cap for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$7.25
15
011008020 Bolt 8X20 H, Sw for Multiquip Mikasa MT65HA Jumping Jack Rammer
$4.35
View full details

Frequently asked questions

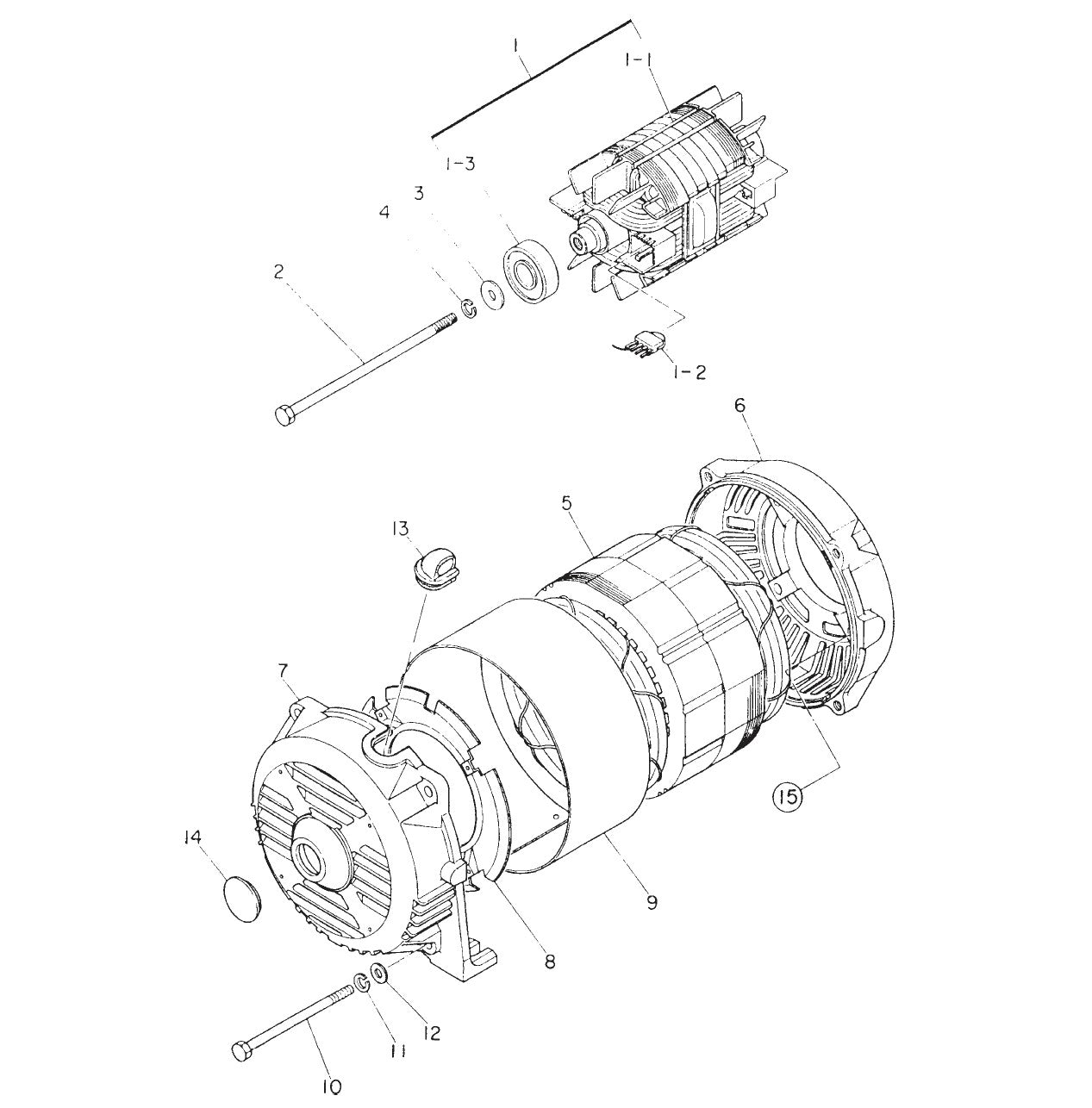

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
