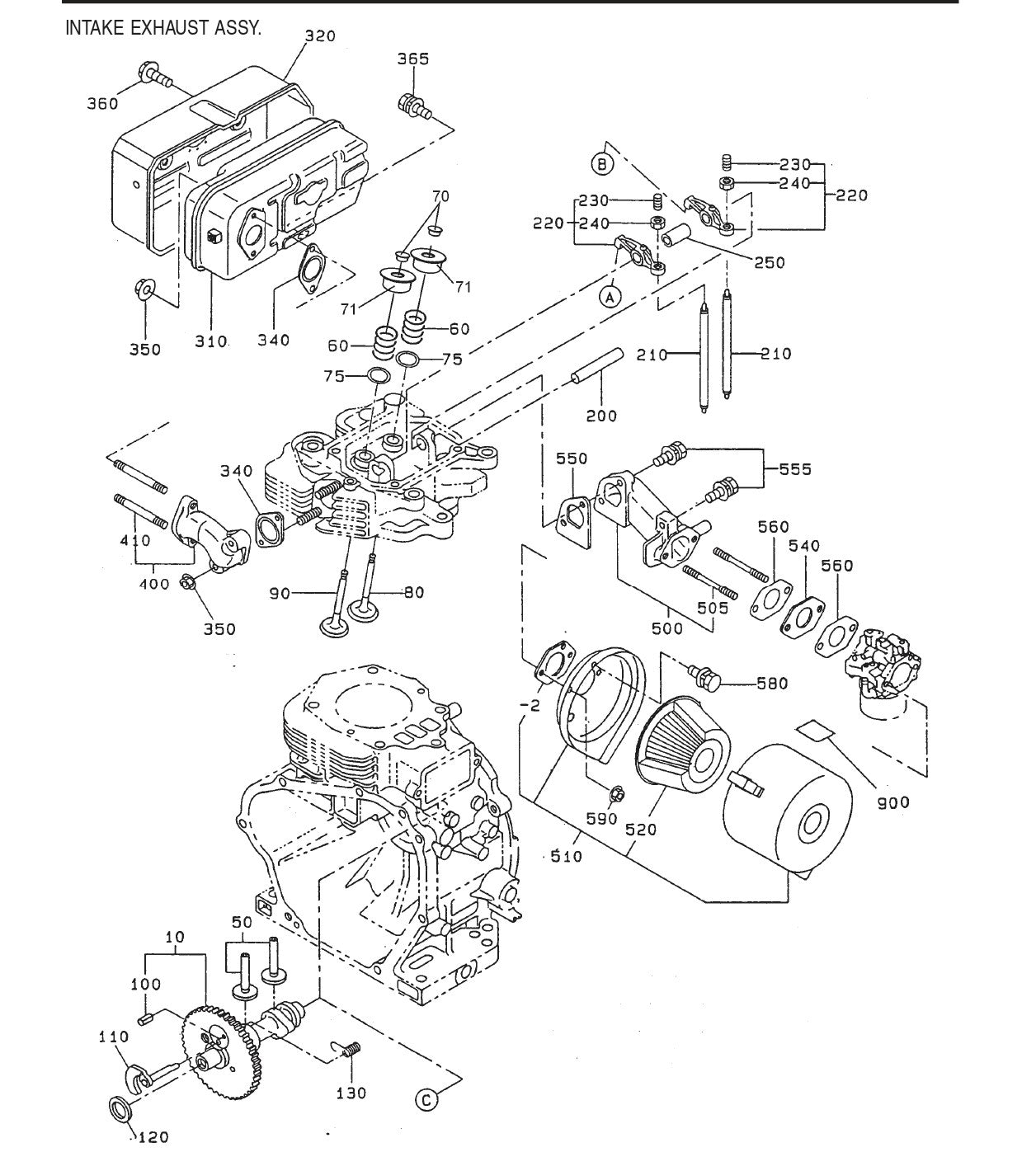

GA6RZ2 GA-6RZ2 — ROBIN EH-34 ENGINE — Intake Exhaust Assembly Parts By Multiquip

GA6RZ2 GA-6RZ2 — ROBIN EH-34 ENGINE — Intake Exhaust Assembly Parts By Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
10
2464230401 GOVERNOR LEVER CPL., G5710R BY MAKITA
$13.34
50
2464220113 GOVERNOR SHAFT, G5710R BY MAKITA
$9.63
60
2344270301 GOVERNOR ROD, G6100R BY MAKITA
$5.99
70
2464280113 ROD SPRING CPL., G6100R BY MAKITA
$5.99
71
0011406250 Bolt & Washer for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$2.19
75
0186060020 Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
80
2464250123 GOVERNOR SPRING, G5710R BY MAKITA
$7.76
90
0110060050 Flange Bolt for GA36RZ2 Portable A.C. Generator by MQ Multiquip
Call for Price call for price call for price
100
2464330111 SPEED CONTROL CPL., G5710R BY MAKITA
$11.39
110
0043105350 P.H. SCREW, G5710R BY MAKITA
$3.99
120
0022705000 NUT M5, EM4251 BY MAKITA
$5.99
120
0011008160 Bolt& Washer for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$6.33
120
2463170101 CAMSHAFT, G5710R BY MAKITA
$85.10
130
2463330103 TAPPET, G5710R BY MAKITA
$11.73
200
2463360103 VALVE SPRING, G5710R BY MAKITA
$5.99
210
2463580103 Collet, Valve for GA6RZ2 Portable Pipe Generators by Multiquip
Call for Price call for price call for price
220
2463371103 SPRING RETAINER, G5710R BY MAKITA
$5.99
230
0200200010 WASHER, G5710R BY MAKITA
$5.99
240
2463341103 INTAKE VALVE, G6101R BY MAKITA
$21.45
250
2463350103 EXHAUST VALVE, G5710R BY MAKITA
$29.90
310
0051904100 Spring Pin for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$2.19
320
2463620101 RELEASE LEVER CPL., G5710R BY MAKITA
$13.34
330
0230220050 SPACER (T=0.6), G5710R BY MAKITA
$9.32
340
0230220060 SPACER (T=0.7), G5710R BY MAKITA
$9.32
350
0230220070 SPACER (T=0.8), G5710R BY MAKITA
$9.32
360
2463670103 RETURN SPRING, G5710R BY MAKITA
$7.76
365
2393500103 Rocker Shaft for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$14.88
400
2463530111 PUSH ROD CPL., G5710R BY MAKITA
$34.85
410
2463610110 ROCKER ARM ASS'Y, G5710R BY MAKITA
$16.56
500
0149080021 ADJUSTING SCREW, G5710R BY MAKITA
$9.32
505
0170080090 Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$6.33
510
2463612003 Spacer, Rocker Shaft . for GA6RZ2 Portable Pipe Generators by Multiquip
$4.54
510
2463420121 Muffler Cover Cp for GA6RZ2 Portable Pipe Generators by Multiquip
$62.71
520
2463520103 GASKET (MUFFLER), G5710R BY MAKITA
$5.99
540
0180080010 Flange Nut for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$5.45
550
0011108160 BOLT & WASHER ASSY, G5711R BY MAKITA
$5.99
555
2463400101 EXHAUST PIPE CPL., G5710R BY MAKITA
$53.13
560
0105080360 STUD, G5710R BY MAKITA
$9.32
580
2463300101 INTAKE PIPE CPL., G5710R BY MAKITA
$44.85
590
0105060230 STUD, G5710R BY MAKITA
$14.34
900
2543260210 Air Cleaner Assembly for GA36RZ2 Portable A.C. Generator by MQ Multiquip
$104.16
