GB114BS/BP Ballast Assembly S/N G30002 & Above Parts by Multiquip

GB114BS/BP Ballast Assembly S/N G30002 & Above Parts by Multiquip

  • GB114BS/BP Ballast Assembly S/N G30002 & Above Parts by Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
A
A000017702 Ballast Assy for Gb114-Bs-Bp Lighting System by Multiquip
$1,324.32
1
A100015401 Frame for Gb114-Bs-Bp Lighting System by Multiquip
$380.03
2
A300033800 Ballast (Transformer) Cp for Gb114-Bs-Bp Lighting System by Multiquip
$342.01
3
A200020904 Case (Wire) for Gb114-Bs-Bp Lighting System by Multiquip
$104.26
4
A200018100 Case (Ballast) 1 Cp for Gb114-Bs-Bp Lighting System by Multiquip
$406.43
5
A400079400 Cable (Lamp) Cp for Gb114-Bs-Bp Lighting System by Multiquip
$80.23
8
A300066700 Cable (Main) Cp for Gb114-Bs-Bp Lighting System by Multiquip
$38.37
9
A400037502 Switch Assy for Gb114-Bs-Bp Lighting System by Multiquip
$85.44
10
1406000700 Rubber Cap for Gb114-Bs-Bp Lighting System by Multiquip
$11.87
12
A300083600 Cable (Lamp) Cp for Gb114-Bs-Bp Lighting System by Multiquip
$278.65
13
E000028200 S-Hook for Gb114-Bs-Bp Lighting System by Multiquip
$1.82
14
E000045000 Cable Clamp for Gb114-Bs-Bp Lighting System by Multiquip
$7.31
17
A100013500 Case (Ballast) 2 Cp for Gb114-Bs-Bp Lighting System by Multiquip
$332.06
19
A300038400 Capacitor, 24 Μf @ 480 Vdc for Gb114-Bs-Bp Lighting System by Multiquip
$21.74
20
A200018200 Holder for Gb114-Bs-Bp Lighting System by Multiquip
$80.50
23
1367020430 Groundingterminal for Gb114-Bs-Bp Lighting System by Multiquip
$4.39
6
*0023303008 Screw & Washer (M3X8L) for Gb114-Bs-Bp Lighting System by Multiquip
$6.59
11
*0023306012 Screw (M6X12L) for Gb114-Bs-Bp Lighting System by Multiquip
$4.39
15
*0023304012 Screw & Washer (M4X12L) for Gb114-Bs-Bp Lighting System by Multiquip
$6.59
16
*0013510025 Bolt & Washer (M10X25) for Gb114-Bs-Bp Lighting System by Multiquip
$8.83
18
*0023305090 Screw& Washer (M5X90) for Gb114-Bs-Bp Lighting System by Multiquip
$4.39
21
*0033104000 Nut (M4) for Gb114-Bs-Bp Lighting System by Multiquip
$6.59
22
*0043204000 Washer, Lock (M4) for Gb114-Bs-Bp Lighting System by Multiquip
$6.59
View full details

Frequently asked questions

How do I use this diagram?

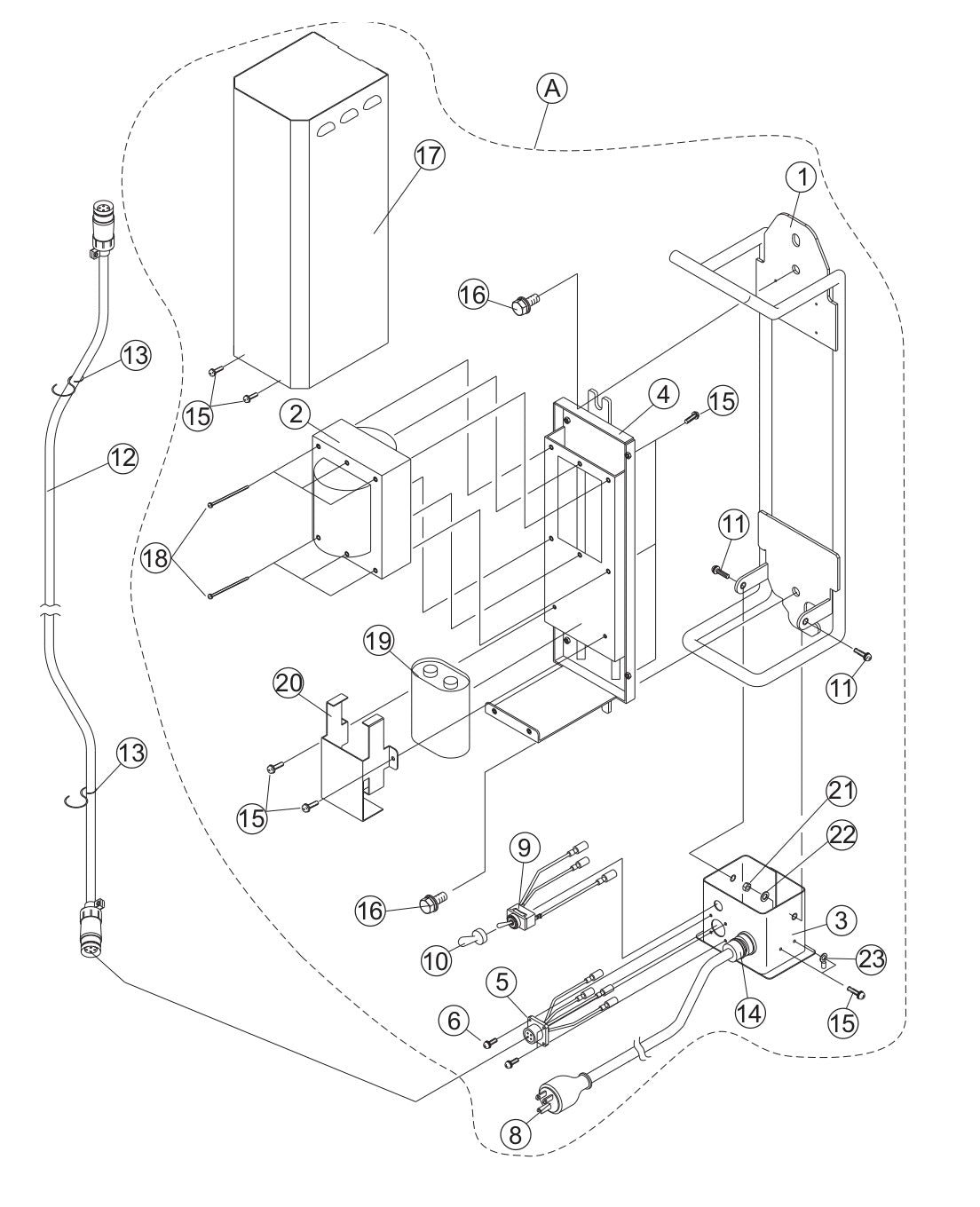

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
