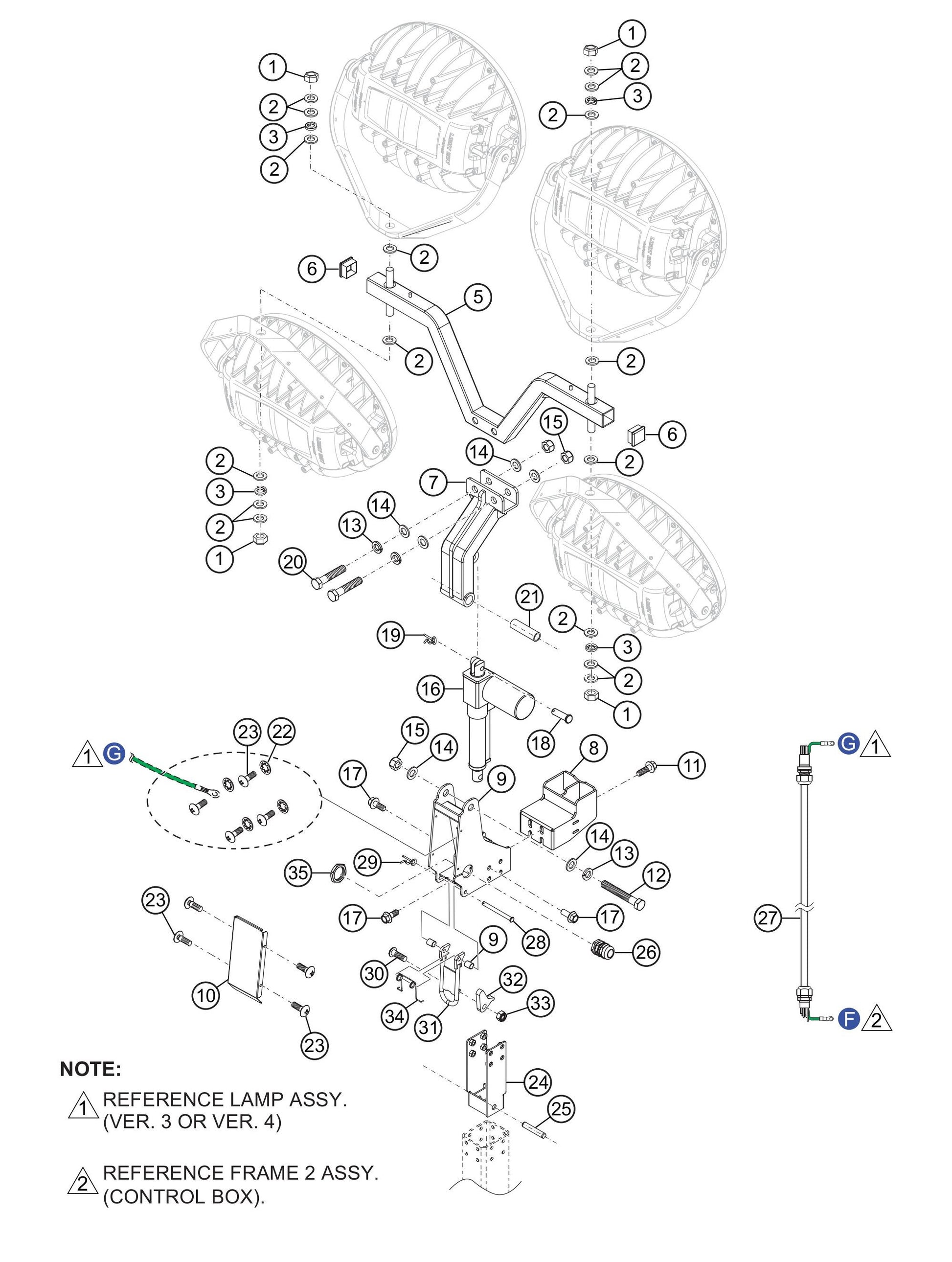

GBX12SK GloBug Lighting System Lamp Stand Assembly Parts by Multiquip

GBX12SK GloBug Lighting System Lamp Stand Assembly Parts by Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
*0034116000 Nut M16, Low for Gbx12Sk Lighting System by Multiquip
$8.83
2
E000144001 Washer M16, Fluorine for Gbx12Sk Lighting System by Multiquip
$20.55
3
1042000230 Spring for Gb43Sc Lighting System by Multiquip
$61.24
4
E000245500 Spacer for Gbx12Sk Lighting System by Multiquip
$4.39
6
E000237400 Insert, Square Pipe for Gbx12Sk Lighting System by Multiquip
$6.59
11
*0013808025 Flange Bolt M8 X 25 for Gbx12Sk Lighting System by Multiquip
$11.61
13
*0043216000 Lock Washer M16 for Gbx12Sk Lighting System by Multiquip
$6.59
14
*0043116000 Washer, M16 for Gbx12Sk Lighting System by Multiquip
$6.59
15
*0033216000 Self-Lock Nut, M16 for Gbx12Sk Lighting System by Multiquip
$15.40
17
*0013808020 Flange Bolt, M8 X 20 for Gbx12Sk Lighting System by Multiquip
$6.59
19
*0053510000 Cotter Pin 10 for Gbx12Sk Lighting System by Multiquip
$4.39
21
A400430200 Spacer for Gbx12Sk Lighting System by Multiquip
$361.93
22
*0043904000 Toothed Lock Washer, M4 for Gbx12Sk Lighting System by Multiquip
$6.59
23
*0026004010 Truss Head Screw, M4 X 10 for Gbx12Sk Lighting System by Multiquip
$6.59
25
A400430000 Parallel Pin for Gbx12Sk Lighting System by Multiquip
$46.22
27
A200160500 Lamp Cable 12S W/Cable Gland for Gbx12Sk Lighting System by Multiquip
$2,230.14
28
E000241300 Hinge Pin for Gbx24Bk Lighting System by Multiquip
$15.40
29
*0053508000 Cotter Pin 8 for Gbx12Sk Lighting System by Multiquip
$4.39
30
*0015305015 Slim Head Screw, M5 X 15 for Gbx12Sk Lighting System by Multiquip
$6.59
32
A400497301 Plate, Stopper for Gbx12Sk Lighting System by Multiquip
$8.83
33
*0033205000 Self-Lock Nut, M5 for Gbx12Sk Lighting System by Multiquip
$6.59
34
A400488201 Return Spring for Gbx12Sk Lighting System by Multiquip
$111.05
5
Call for Price call for price call for price
7
Call for Price call for price call for price
8
Call for Price call for price call for price
9
Call for Price call for price call for price
10
Call for Price call for price call for price
12
Call for Price call for price call for price
16
Call for Price call for price call for price
18
Call for Price call for price call for price
20
Call for Price call for price call for price
24
Call for Price call for price call for price
26
Call for Price call for price call for price
31
Call for Price call for price call for price
35
Call for Price call for price call for price
View full details
