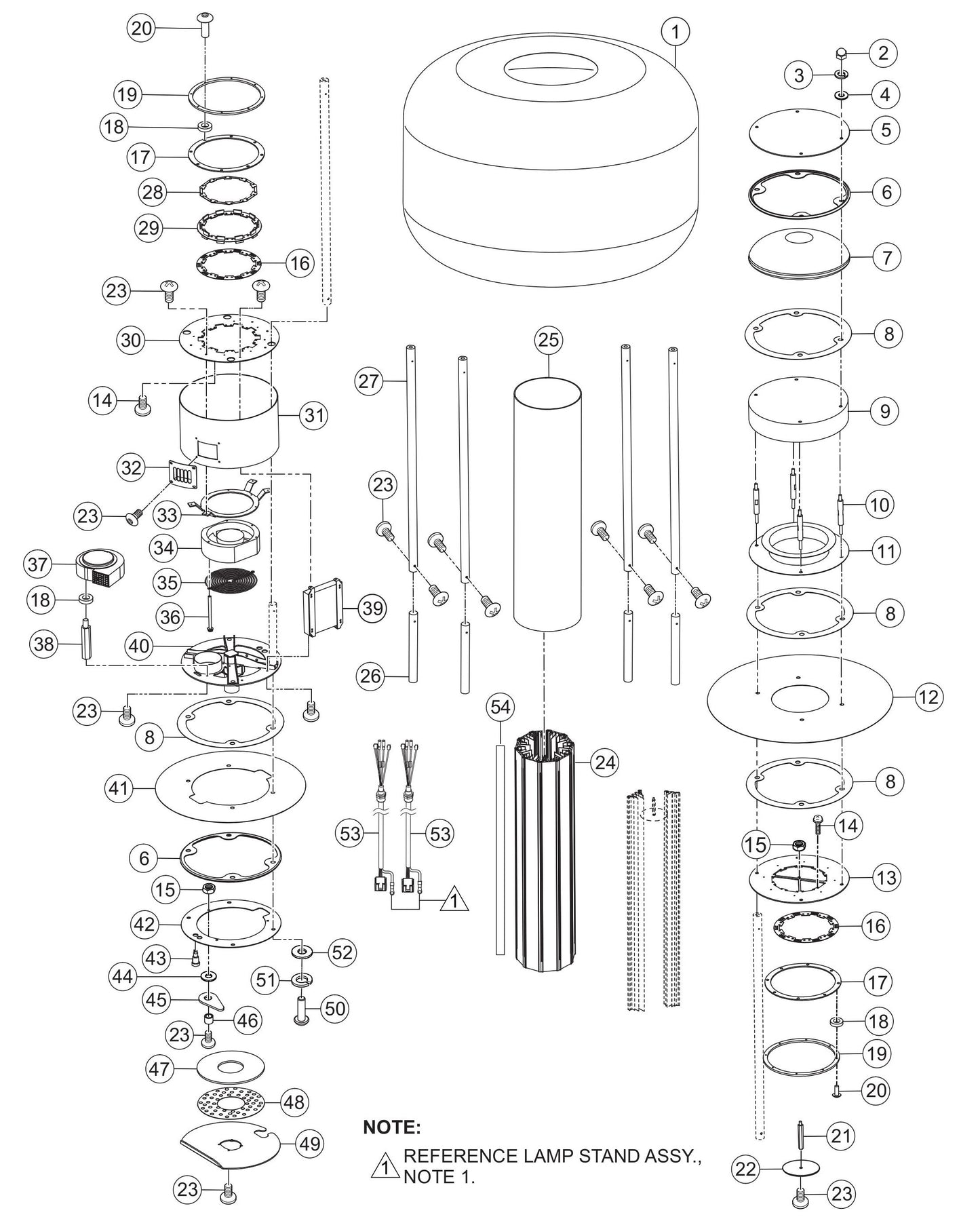

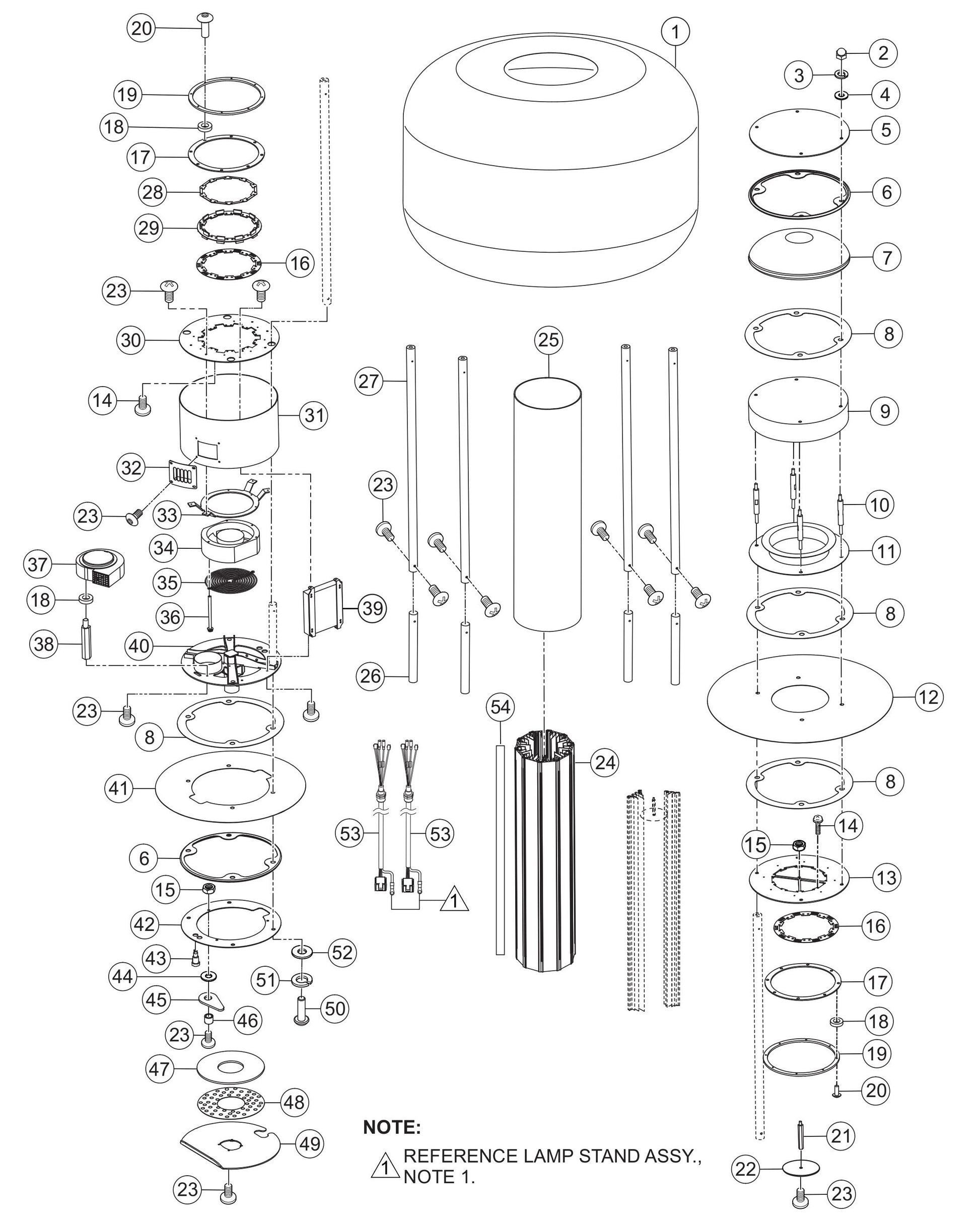

GBX24BK GloBug Lighting System Lamp Assembly Part by Multiquip

GBX24BK GloBug Lighting System Lamp Assembly Part by Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
A100140900 Main Balloon Bag for Gbx24Bk Lighting System by Multiquip
$440.00
2
*0030308000 Cap Nut, M8 for Gbx24Bk Lighting System by Multiquip
$8.83
3
*0043208000 Washer, Lock M8 for Gbx24Bk Lighting System by Multiquip
$4.39
4
E000132100 Sus Bdwasher, M8 for Gbx24Bk Lighting System by Multiquip
$15.40
5
2204220130 Top Cap Plate for Gbx24Bk Lighting System by Multiquip
$283.31
6
2204500230 Seal, Packing for Gbx24Bk Lighting System by Multiquip
$191.38
7
A100146600 Vinyl Balloon Cover for Gbx24Bk Lighting System by Multiquip
$595.41
8
2204500130 Seal, Normal for Gbx24Bk Lighting System by Multiquip
$159.28
9
A200137101 Bezel, Top for Gbx24Bk Lighting System by Multiquip
$975.48
10
A400463701 Spacer, Top for Gbx24Bk Lighting System by Multiquip
$268.88
11
A200140200 Plate, Top for Gbx24Bk Lighting System by Multiquip
$1,401.95
12
A100144600 Top Zipper Sheet for Gbx24Bk Lighting System by Multiquip
$528.18
13
A200144201 Plate, Lamp Top for Gbx24Bk Lighting System by Multiquip
$1,029.67
14
*0023004015 Pan Hd Scr. And Washer Assy. M4X15 for Gbx24Bk Lighting System by Multiquip
$6.59
15
*0033104000 Nut, M4 for Gbx24Bk Lighting System by Multiquip
$6.59
16
A400385101 Gasket, In for Gbx24Bk Lighting System by Multiquip
$1,421.13
17
A300379601 Gasket, Guard for Gbx24Bk Lighting System by Multiquip
$923.00
18
E000205600 Spacer for Gbx24Bk Lighting System by Multiquip
$8.83
19
A300379501 Frame, Guard for Gbx24Bk Lighting System by Multiquip
$1,275.36
20
*0024304010 Truss Screw, M4X10 W/Loctite for Gbx24Bk Lighting System by Multiquip
$6.59
21
E000194800 Support Bolt, M4X50 F-M for Gbx24Bk Lighting System by Multiquip
$20.00
22
A400462900 Plate, Heatsink for Gbx24Bk Lighting System by Multiquip
$239.86
23
*0024304008 Truss Screw, M4X8 W/Loctite for Gbx24Bk Lighting System by Multiquip
$6.59
24
A000082100 Heatsink Assy. for Gbx24Bk Lighting System by Multiquip
$2,790.43
25
A300378500 Guard, Led for Gbx24Bk Lighting System by Multiquip
$1,116.17
26
A400463600 Spacer, Bottom for Gbx24Bk Lighting System by Multiquip
$55.66
27
A300387702 Pole Complete for Gbx24Bk Lighting System by Multiquip
$60.50
28
A300380001 Gasket, Circuit Board for Gbx24Bk Lighting System by Multiquip
$1,224.34
29
A000083600 Adapter, Circuit Board for Gbx24Bk Lighting System by Multiquip
$1,443.40
30
A200144301 Plate, Lamp Bottom for Gbx24Bk Lighting System by Multiquip
$975.48
32
A300379800 Cover, Bezel for Gbx24Bk Lighting System by Multiquip
$1,063.02
33
A200140400 Bracket, Fan for Gbx24Bk Lighting System by Multiquip
$1,301.82
34
A300394100 Dc Fan Motor Assy. for Gbx24Bk Lighting System by Multiquip
$430.22
35
E000205300 Fan Guard for Gbx24Bk Lighting System by Multiquip
$35.00
36
*0023304060 Pan Hd Scr. And Washer Assy. M4X60 for Gbx24Bk Lighting System by Multiquip
$6.59
37
A300394200 Dc Blower Assy. for Gbx24Bk Lighting System by Multiquip
$430.22
38
E000194900 Support Bolt, M4X30 F-M for Gbx24Bk Lighting System by Multiquip
$14.25
40
A100144501 Flange for Gbx24Bk Lighting System by Multiquip
$3,203.55
41
A100144700 Balloon Sheet, Bottom for Gbx24Bk Lighting System by Multiquip
$427.57
42
A300379701 Plate, Bottom for Gbx24Bk Lighting System by Multiquip
$921.28
44
E000119300 Wave Washer, M6 for Gbx24Bk Lighting System by Multiquip
$6.59
45
A400030700 Stopper, Filter for Gbx24Bk Lighting System by Multiquip
$8.50
47
A400454700 Filter for Gbx24Bk Lighting System by Multiquip
$101.30
48
A300384900 Plate, Air for Gbx24Bk Lighting System by Multiquip
$615.41
49
A300379201 Cover, Bottom for Gbx24Bk Lighting System by Multiquip
$865.32
50
*0014710035 Button Bolt, M10X35 for Gbx24Bk Lighting System by Multiquip
$12.61
51
*0043210000 Washer, Lock M10 for Gbx24Bk Lighting System by Multiquip
Call for Price call for price call for price
52
*0043110000 Washer, M10 for Gbx24Bk Lighting System by Multiquip
$6.59
53
A300388502 Power Cable, Led 2400 for Gbx24Bk Lighting System by Multiquip
$478.26
6
Call for Price call for price call for price
31
Call for Price call for price call for price
39
Call for Price call for price call for price
43
Call for Price call for price call for price
46
Call for Price call for price call for price
54
Call for Price call for price call for price
View full details
