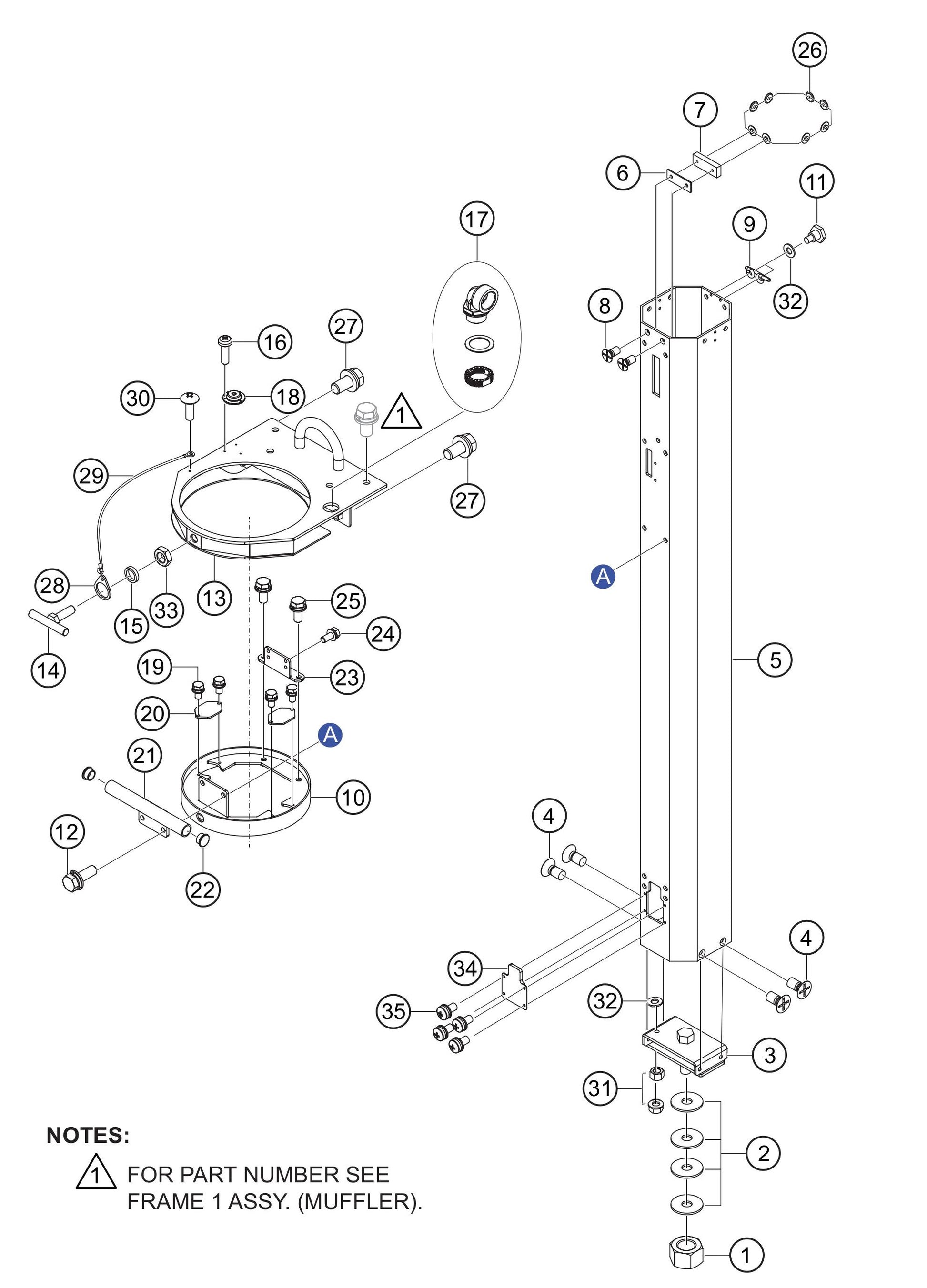

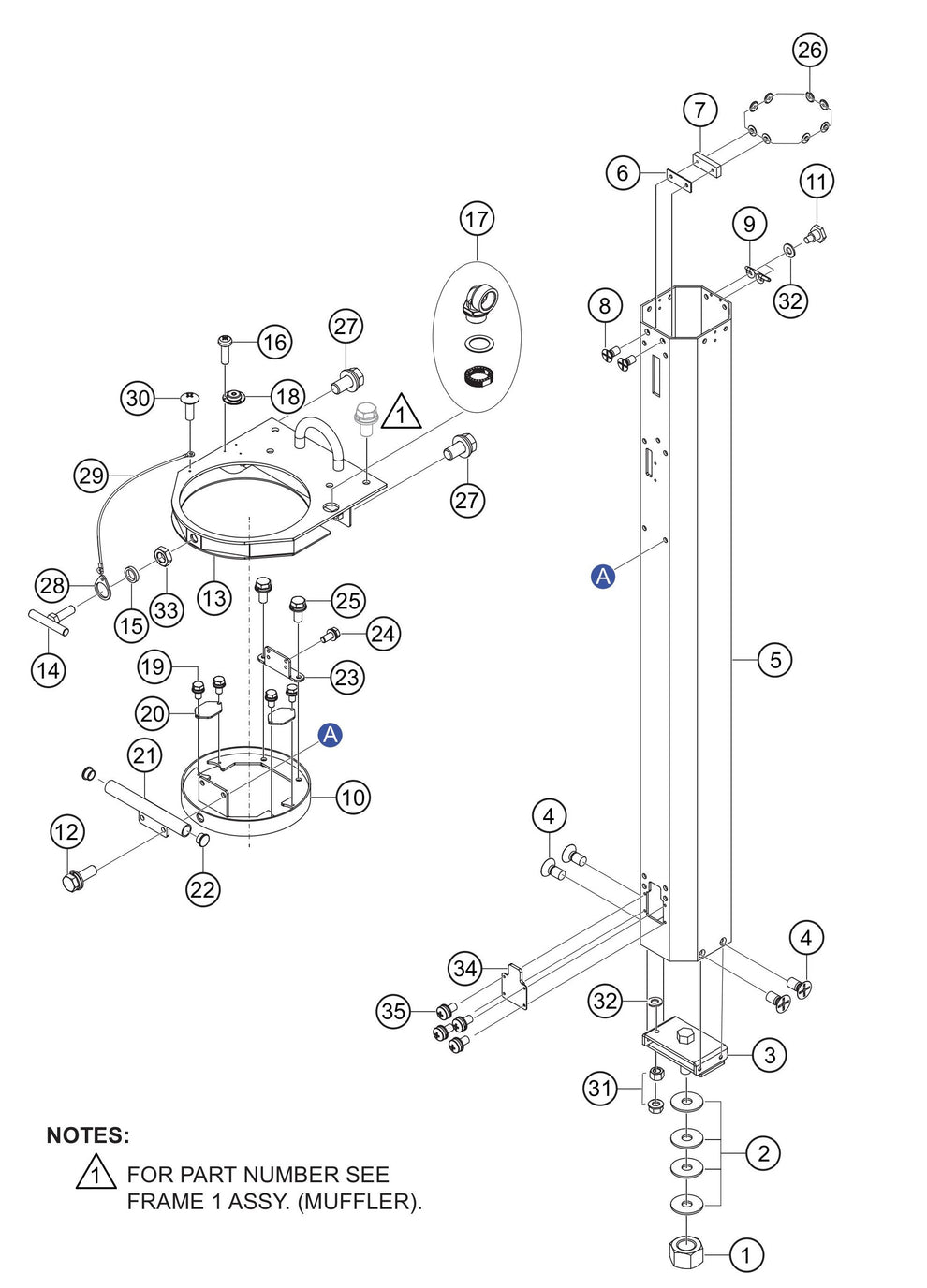

GBX24BK GloBug Lighting System Mast Group 1 Assembly Parts by Multiquip

GBX24BK GloBug Lighting System Mast Group 1 Assembly Parts by Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
*0035220000 Self-Lock Nut, M20 for Gbx24Bk Lighting System by Multiquip
Call for Price call for price call for price
2
A400362100 Washer, Mast for Gbx24Bk Lighting System by Multiquip
$79.83
3
A200145601 Bracket, Mast 2 for Gbx24Bk Lighting System by Multiquip
$865.32
4
*0025008016 Countersunk Screw, M8X16 for Gbx24Bk Lighting System by Multiquip
$8.83
6
A400427200 Plate 1-2, Slider for Gbx24Bk Lighting System by Multiquip
Call for Price call for price call for price
7
A400362501 Plate, Slider for Gbx24Bk Lighting System by Multiquip
$93.51
8
*0025006012 Countersunk Screw, M6X12 for Gbx24Bk Lighting System by Multiquip
$6.59
9
A400430801 Cable Bracket, Mast 2 for Gbx24Bk Lighting System by Multiquip
$101.30
10
A100153301 Guide, Mast 2 for Gbx24Bk Lighting System by Multiquip
$921.28
11
A400434000 Bolt, Cable for Gbx24Bk Lighting System by Multiquip
$8.35
12
*0013510030 Bolt And Washer Assy. M10X30 for Gbx24Bk Lighting System by Multiquip
$8.83
13
A100149902 Main Guide, Mast 1 for Gbx24Bk Lighting System by Multiquip
$1,443.40
14
A400497402 Mast Locking Knob for Gbx24Bk Lighting System by Multiquip
$148.06
15
A300417001 Motorwinch Connector for Gbx24Bk Lighting System by Multiquip
$440.15
16
*0023103010 Screw, M3X10 for Gbx24Bk Lighting System by Multiquip
$6.59
17
E000215300 Cable Gland W/Washer And Nut for Gbx24Bk Lighting System by Multiquip
$183.43
18
E000182900 Bubble Level Guide for Gbx24Bk Lighting System by Multiquip
$155.46
19
*0013505010 Bolt And Washer Assy. M5X10 for Gbx24Bk Lighting System by Multiquip
$6.59
20
A400503200 Plate, Cap for Gbx24Bk Lighting System by Multiquip
$30.00
21
A300419600 Mast Handle for Gbx24Bk Lighting System by Multiquip
$121.48
22
E000241000 Inner Cap for Gbx24Bk Lighting System by Multiquip
$11.39
23
A400507400 Bracket, Mast Guide for Gbx24Bk Lighting System by Multiquip
Call for Price call for price call for price
24
*0013505012 Bolt And Washer Assy. M5X12 for Gbx24Bk Lighting System by Multiquip
$6.59
25
*0013508020 Bolt And Washer Assy. M8X20 for Gbx24Bk Lighting System by Multiquip
$6.59
26
A400423800 Slider for Gbx24Bk Lighting System by Multiquip
$8.83
27
*0013512025 Bolt And Washer Assy. M12X25 for Gbx24Bk Lighting System by Multiquip
$9.98
28
A400510800 Rotating Bracket for Gbx24Bk Lighting System by Multiquip
$30.00
29
A400520000 T Lock Wire for Gbx24Bk Lighting System by Multiquip
$140.66
30
*0026004012 Truss Head Screw, M4X10 for Gbx24Bk Lighting System by Multiquip
$4.39
31
*0033808000 Hardlock Nut, M8 for Gbx24Bk Lighting System by Multiquip
$29.44
32
*0043108000 Washer, M8 for Gbx24Bk Lighting System by Multiquip
$4.39
33
*0034116000 Nut M16, Low for Gbx24Bk Lighting System by Multiquip
$8.83
35
*0023305010 Screwand Washer Assy. M5X10 for Gbx24Bk Lighting System by Multiquip
$6.59
5
Call for Price call for price call for price
5
Call for Price call for price call for price
34
Call for Price call for price call for price
View full details
