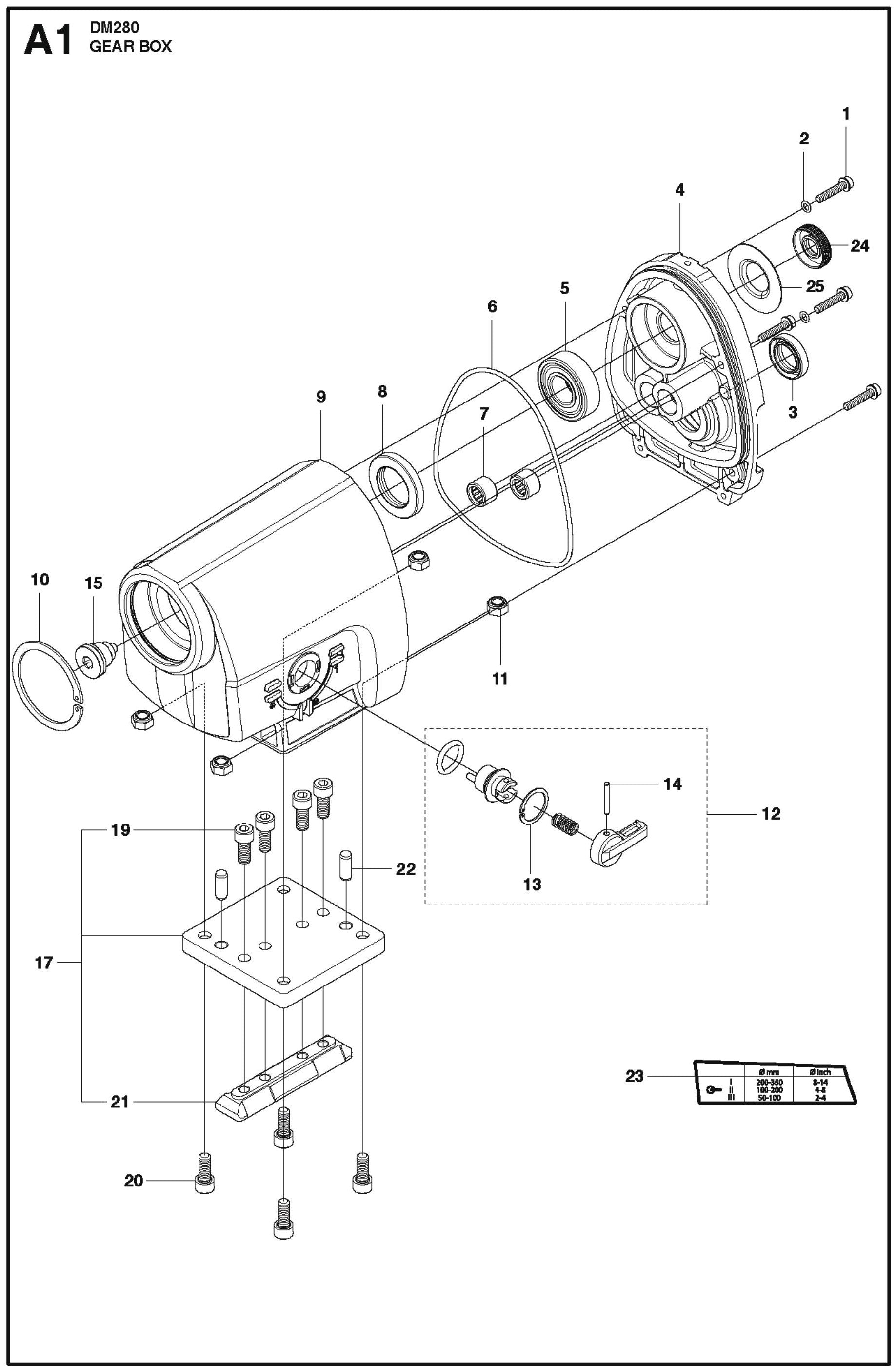

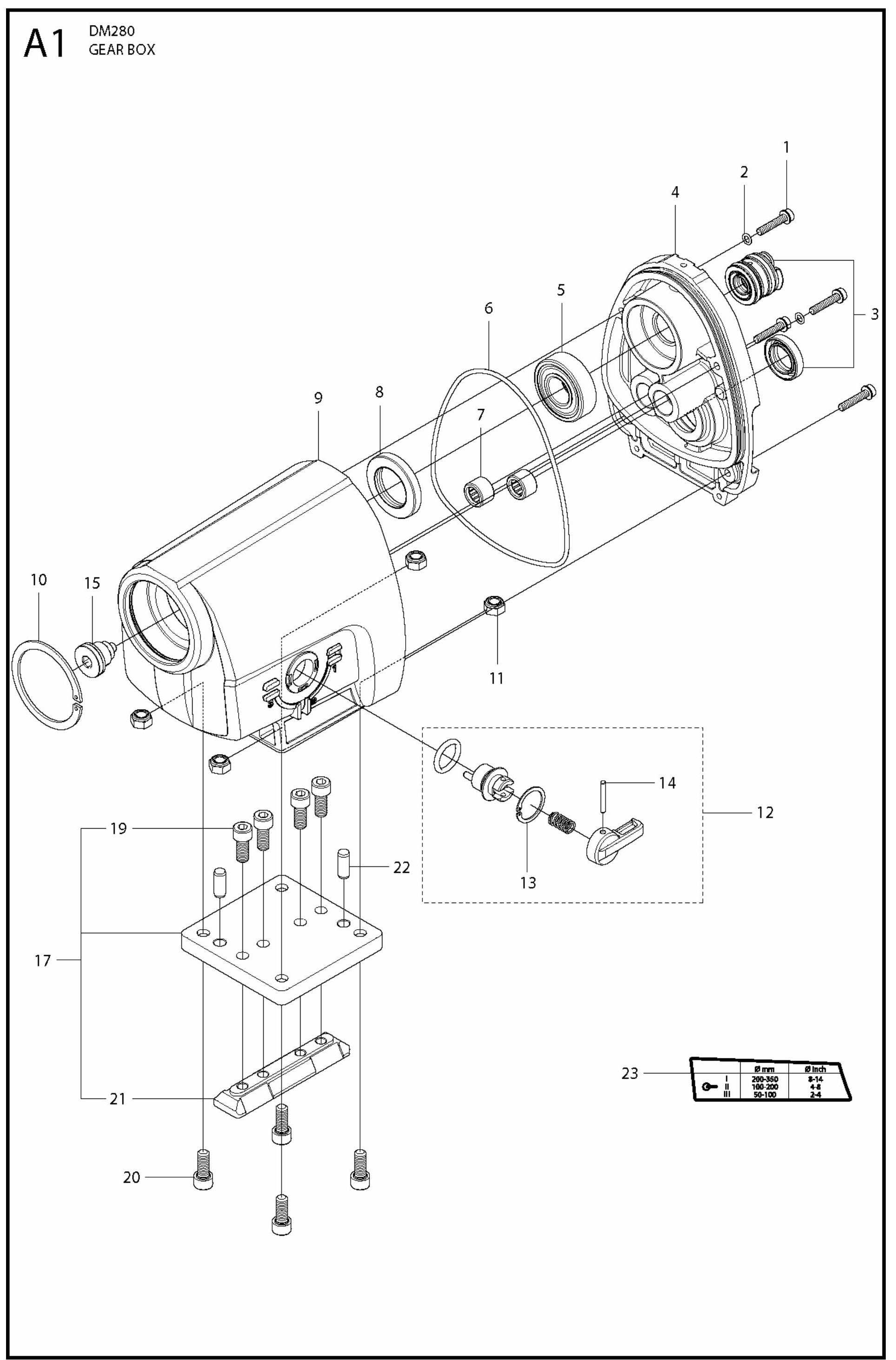

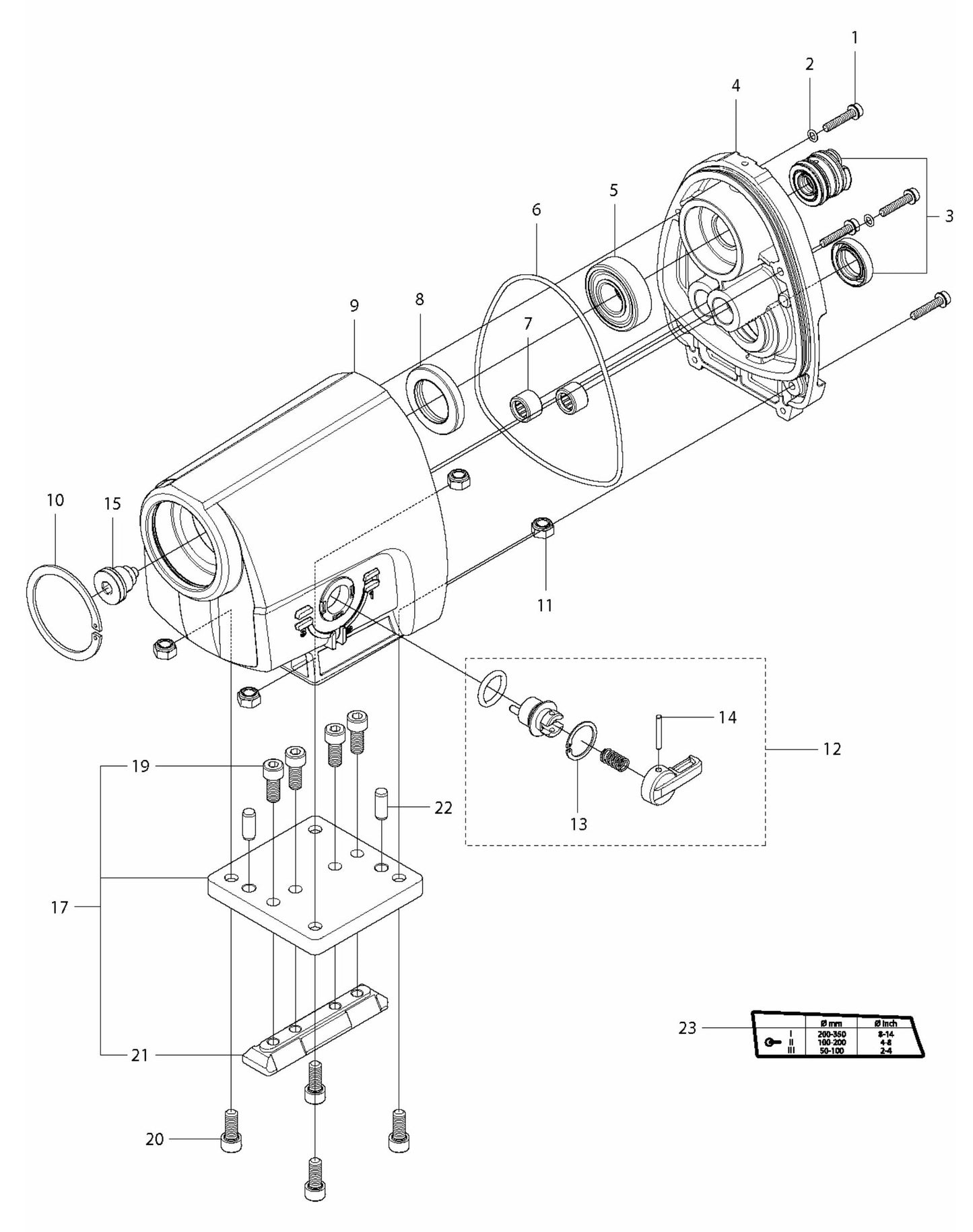

DM 280 Gearbox Assembly-1 Parts

DM 280 Gearbox Assembly-1 Parts

  • DM 280 Gearbox Assembly-1 Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
503200325 SCREW IHSCFM, M5X25 12.9 TBO FOR CORE DRILL BY HUSQVARNA
$2.90
2
740420300 O-RING 5.1X1.6 NITRILE RUBBER FOR POWER CUTTERS BY HUSQVARNA
$4.89
4
581565801 COVER, GEAR HOUSING DM280/340 FOR CORE DRILL BY HUSQVARNA
$83.07
5
738220419 BALL BEARING FOR CORE DRILL BY HUSQVARNA
$10.78
7
503255301 NEEDLE BEARING FOR POWER CUTTERS BY HUSQVARNA
$21.95
10
502497001 CIRCLIP FOR CORE DRILL BY HUSQVARNA
$8.70
11
732251801 HEXAGON LOCKING NUT for FS309 Walk Behind Floor Saw Husqvarna Products
$3.99
12
588569001 GEAR SHIFT LEVER ASSY, DMS340 FOR CORE DRILL BY HUSQVARNA
$85.40
13
735312241 CIRCLIP FOR CORE DRILL BY HUSQVARNA
$5.63
14
720127606 PARALLEL PIN FOR CORE DRILL BY HUSQVARNA
$2.81
15
525481001 OIL PLUG, 1/4" FOR POWER CUTTERS BY HUSQVARNA
$29.44
17
575808201 MOTOR BRACKET ASSY FOR CORE DRILL BY HUSQVARNA
$94.10
19
725545101 Screw Ihscm for PG280 Floor Grinder and Polisher by Husqvarna
$9.84
20
725545101 Screw Ihscm for PG280 Floor Grinder and Polisher by Husqvarna
$9.84
6
502496503 O-RING 134.4X3.1 NBR FOR CORE DRILL BY HUSQVARNA
$4.36
8
502496302 SEALING RING FOR CORE DRILL BY HUSQVARNA
$18.00
9
581565601 GEAR HOUSING, DM280/340 FOR CORE DRILL BY HUSQVARNA
$229.46
21
575808101 WEDGE FOR CORE DRILL BY HUSQVARNA
$32.98
22
720140106 PARALLEL PIN FOR CORE DRILL BY HUSQVARNA
$2.81
23
505429801 LABEL FOR CORE DRILL BY HUSQVARNA
$7.26
23
505406001 LABEL FOR CORE DRILL BY HUSQVARNA
$7.26
3
Call for Price call for price call for price
View full details
