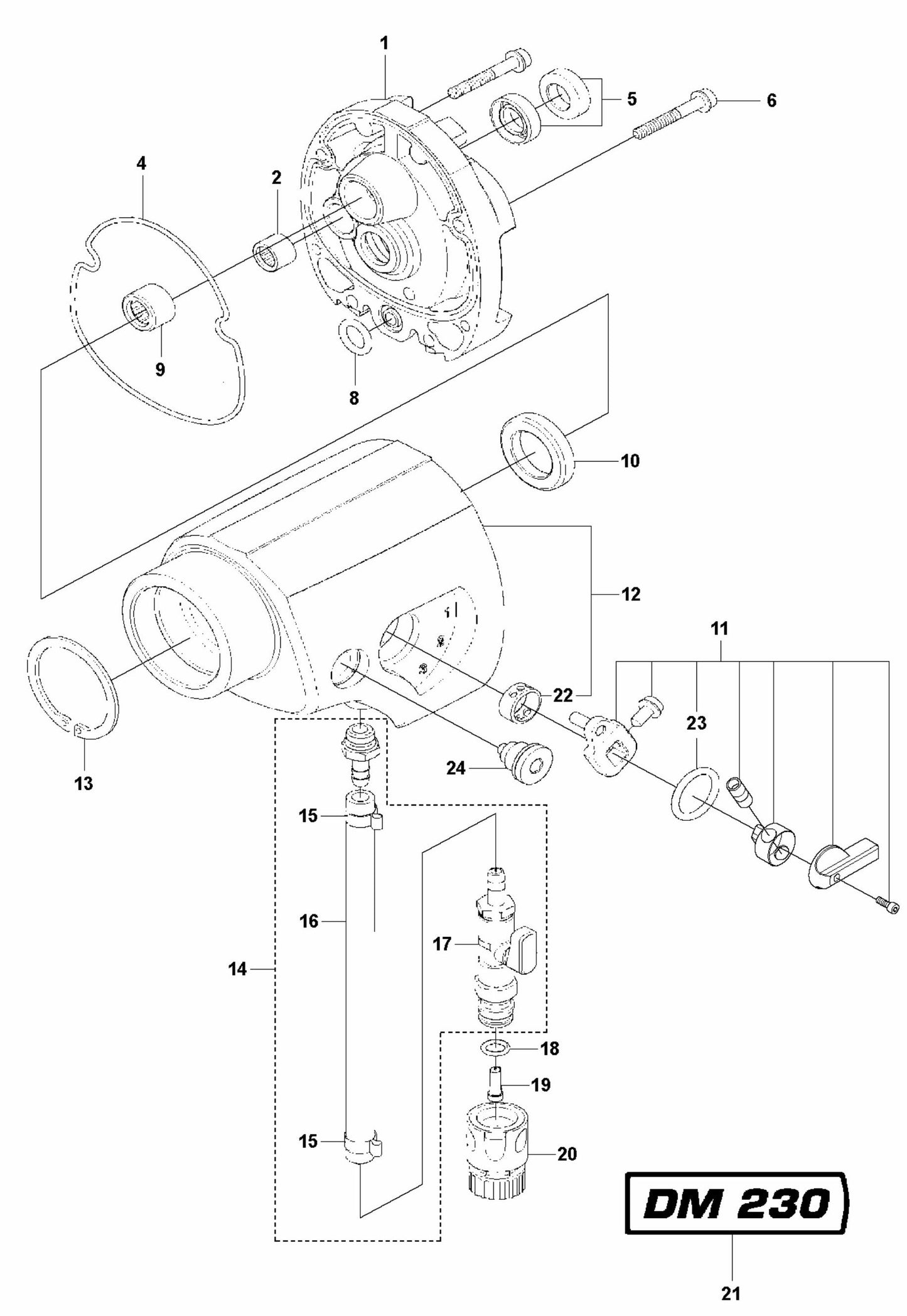

DM 230 Gear Box Assembly Parts-1 by Husqvarna

DM 230 Gear Box Assembly Parts-1 by Husqvarna

  • DM 230 Gear Box Assembly Parts-1 by Husqvarna
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
586796001 COVER, GEAR HOUSING, DM230 FOR CORE DRILL BY HUSQVARNA
$225.15
2
503254201 NEEDLE BEARING FOR CORE DRILL BY HUSQVARNA
$26.70
4
503263030 O-Ring for DM 230 Drill Motors by Husqvarna
Call for Price call for price call for price
4
586812101 ORING, GEARBOX, DM230 FOR CORE DRILL BY HUSQVARNA
$7.26
5
586068101 Sealing for DM 230 Drill Motors by Husqvarna
$17.29
6
503207440 SCREW FOR CORE DRILL BY HUSQVARNA
$11.61
8
586911801 SEALING GEARBOX, WATER DM230 FOR CORE DRILL BY HUSQVARNA
$32.30
9
503255301 NEEDLE BEARING FOR POWER CUTTERS BY HUSQVARNA
$21.95
10
575557901 RADIAL SEAL 25X35X7 NBR FOR CORE DRILL BY HUSQVARNA
$22.61
13
735314010 Circlip for Husqvarna FS3500 G Walk Behind Concrete Saw
$12.30
14
501072201 HOSE ASSY, WATER CONNECTION FOR CORE DRILL BY HUSQVARNA
$85.12
15
576129701 HOSE CLAMP FOR POWER CUTTERS BY HUSQVARNA
$10.14
16
581893601 HOSE, PVC 8X13, L=230MM FOR POWER CUTTERS BY HUSQVARNA
$5.60
17
587437802 VALVE ASSY FOR CORE DRILL BY HUSQVARNA
$70.02
18
505103501 O-Ring Fits Husqvarna K760 Handheld Concrete Power Cutter Saw
$10.14
19
506298801 SCREEN, WATER FITTING FOR POWER CUTTERS BY HUSQVARNA
$11.65
20
503266003 COUPLER, QUICK, ORANGE FOR POWER CUTTERS BY HUSQVARNA
$10.60
20
503266004 1/2" HOSE COUPLER FOR POWER CUTTERS BY HUSQVARNA
$13.52
21
502635401 LABEL FOR CORE DRILL BY HUSQVARNA
$5.80
22
544130001 INSERT, DM230 FOR CORE DRILL BY HUSQVARNA
$13.97
23
502496505 O-RING, 19X3.15 NBR FOR CORE DRILL BY HUSQVARNA
$4.36
24
525481001 OIL PLUG, 1/4" FOR POWER CUTTERS BY HUSQVARNA
$33.82
12
588613101 GEAR HOUSING FOR CORE DRILL BY HUSQVARNA
$268.85
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
