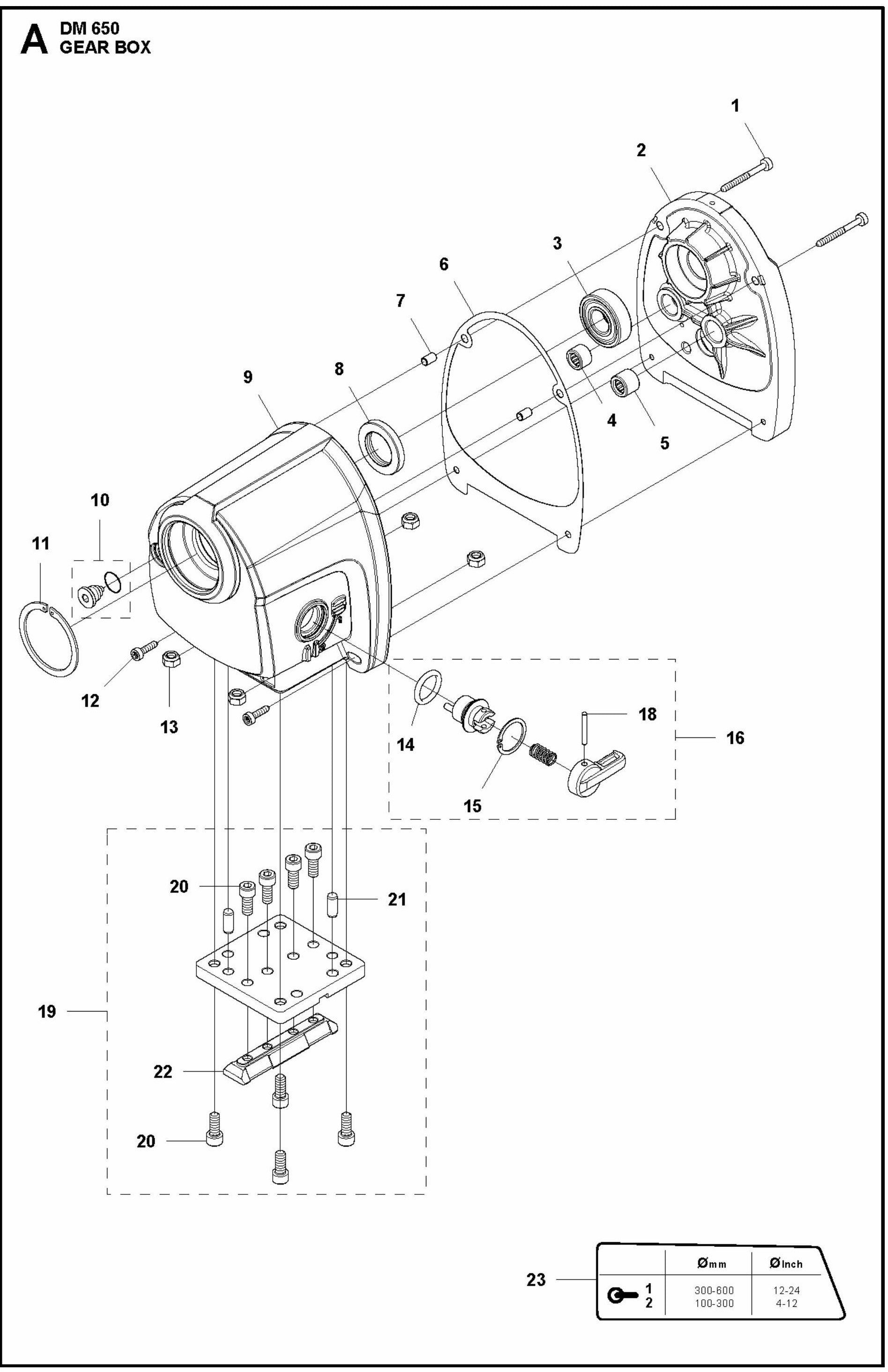

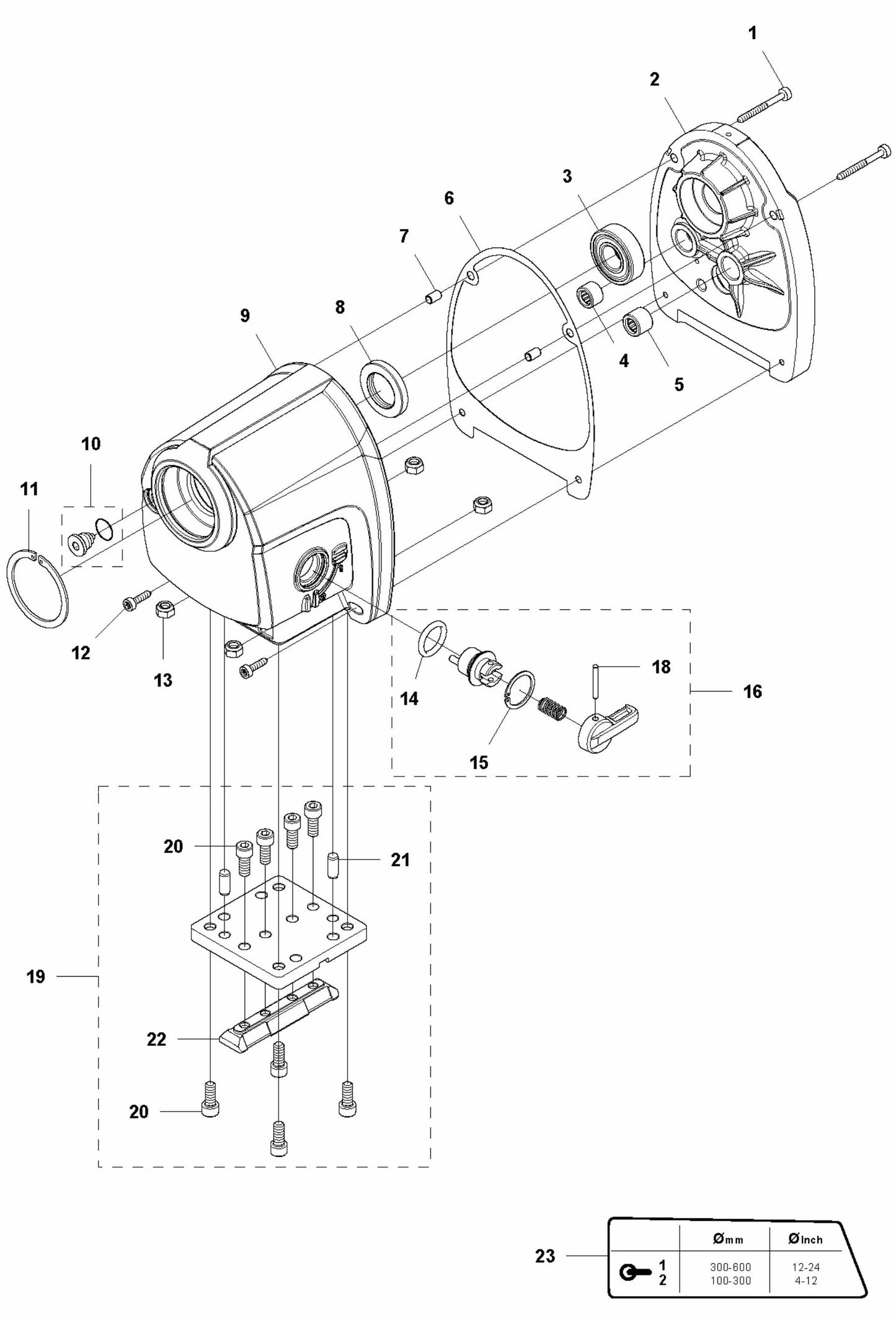

DM 650 Gearbox Assembly Parts by Husqvarna

DM 650 Gearbox Assembly Parts by Husqvarna

  • DM 650 Gearbox Assembly Parts by Husqvarna
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
501981002 SCREW FOR CORE DRILL BY HUSQVARNA
$5.80
2
586501401 COVER, GEAR HOUSING FOR CORE DRILL BY HUSQVARNA
$390.45
3
738220419 BALL BEARING FOR CORE DRILL BY HUSQVARNA
$11.02
4
503255301 NEEDLE BEARING FOR POWER CUTTERS BY HUSQVARNA
$21.95
5
575362101 NEEDLE BEARING FOR CORE DRILL BY HUSQVARNA
$39.24
6
525395001 GASKET, GEAR HOUSING DM 650 HF FOR POWER CUTTERS BY HUSQVARNA
$8.38
7
575452401 GUIDE BUSH FOR CORE DRILL BY HUSQVARNA
$10.14
8
502496302 SEALING RING FOR CORE DRILL BY HUSQVARNA
$19.76
9
525393401 GEAR HOUSING, DM 650 HF FOR POWER CUTTERS BY HUSQVARNA
$651.70
10
525481001 OIL PLUG, 1/4" FOR POWER CUTTERS BY HUSQVARNA
$33.82
11
502497001 CIRCLIP FOR CORE DRILL BY HUSQVARNA
$8.70
12
501981004 SCREW M6 X 20 FOR CORE DRILL BY HUSQVARNA
$10.14
13
732251801 Hexagon Locking Nut for PG820 Floor Grinder and Polisher by Husqvarna
$4.99
14
740431500 O-RING 17.3 X 2.4 FOR CORE DRILL BY HUSQVARNA
$5.63
15
735313011 CIRCLIP FOR CORE DRILL BY HUSQVARNA
$5.04
16
588595701 GEAR SHIFT LEVER, DM650 FOR CORE DRILL BY HUSQVARNA
$96.90
18
720127606 PARALLEL PIN FOR CORE DRILL BY HUSQVARNA
$2.81
19
577549101 MOTOR BRACKET KIT FOR POWER CUTTERS BY HUSQVARNA
$332.50
20
725545101 Screw Ihscm for BMG 555 Floor Grinder by Husqvarna
$43.70
21
720140106 PARALLEL PIN FOR CORE DRILL BY HUSQVARNA
$2.81
22
575808101 WEDGE FOR CORE DRILL BY HUSQVARNA
$37.91
23
575009501 LABEL FOR CORE DRILL BY HUSQVARNA
$13.97
