594657101 Spring Unit Repair Kit for LT 5005 Jumping Jack Rammers by Husqvarna

594657101 Spring Unit Repair Kit for LT 5005 Jumping Jack Rammers by Husqvarna

Regular price $130.00
Regular price Sale price $130.00
Sale Sold out
Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Husqvarna

594657101 Spring Unit Repair Kit for LT 5005 Jumping Jack Rammers by Husqvarna

594657101 Spring Unit Repair Kit for LT 5005 Jumping Jack Rammers by Husqvarna

Danse #: 594657101
Mfr #: 594657101
Regular price $130.00
Regular price Sale price $130.00
Sale Sold out
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
Our Promise To You
🛠️
OEM Certified Parts
🚚
Fast Delivery
🧑‍🔧️
Expert Support
🔁
Easy Returns
🛡️
Warranty Included

Description

The Husqvarna 594657101 Repair Kit, Spring Unit is a genuine OEM spring unit repair kit designed for the Husqvarna LT 5005 tamping rammer. This kit is used to service the rammer’s spring unit assembly, which is one of the main mechanical systems responsible for delivering repeated compaction impact through the rammer leg and foot.

The LT 5005 is a light compaction rammer used for trench backfill, utility work, soil compaction, confined-area compaction, foundation work, and general construction applications. During operation, the spring unit is exposed to constant compression, rebound, vibration, and impact force. Over time, internal spring unit components can fatigue, wear, or lose performance, especially on machines used daily in rental fleets, contractor crews, or utility installation work.

A worn spring unit can affect how the rammer feels and performs. Common symptoms may include weaker impact, inconsistent jumping action, poor rebound, abnormal vibration, oil leakage around the lower assembly, or reduced compaction effectiveness. Rebuilding the spring unit with the correct repair kit helps restore the internal mechanical action of the rammer and can extend the useful service life of the machine.

Danse USA supplies the Husqvarna 594657101 spring unit repair kit for equipment owners, contractors, repair shops, and rental fleet maintenance teams servicing LT 5005 rammers. Always verify your exact model, serial number, and parts diagram before ordering to confirm this is the correct spring unit repair kit for your machine.


Key Features

  • Genuine Husqvarna OEM spring unit repair kit
  • Article number: 594 65 71-01 / 594657101
  • Official article description: REPAIR KIT Spring Unit
  • Designed for the Husqvarna LT 5005 tamping rammer
  • Used for spring unit repair, rebuild, and deeper rammer service
  • Helps restore proper compression, rebound, and impact transfer
  • Includes key spring unit service components such as springs, stops, sealing parts, and hardware
  • Suitable for contractor maintenance, rental fleet service, and repair shop rebuilds
  • Sold by Danse USA for Husqvarna light compaction equipment repair

Compatible Equipment

Brand Model Equipment Type Notes
Husqvarna LT 5005 Tamping Rammer / Compactor Spring unit repair kit

Important fitment note: This listing is written specifically for LT 5005. Do not automatically use this kit for LT 6005, LT 6005H, or LT 8005. Those models may use a different spring unit repair kit. Always verify by model, serial number, and parts diagram.


Product Specifications

Specification Details
Product Type Spring Unit Repair Kit
Brand Husqvarna
Article Number 594 65 71-01
Alternate Part Number 594657101
Article Description REPAIR KIT Spring Unit
Compatible Model Husqvarna LT 5005
GTIN / EAN 7391883784648
Gross Weight 2610 g
Net Weight 2400 g
Packaging Width 170 mm
Packaging Length 275 mm
Packaging Height 160 mm
Master Pack Quantity 1
Packaging Type Cardboard
Sold By Danse USA
Condition New Replacement Part

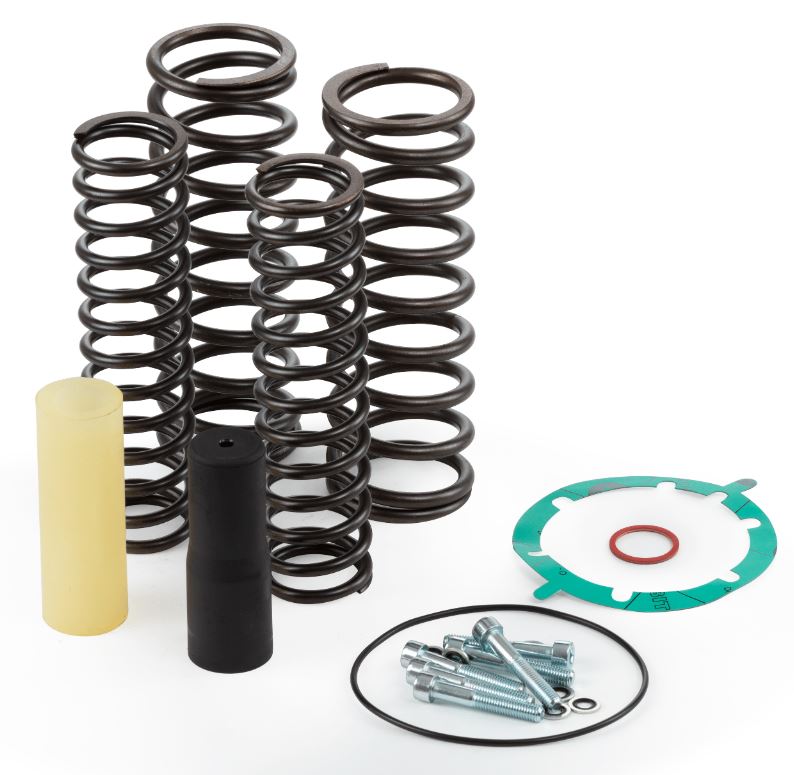

Common Kit Contents

Based on the product image and spring unit repair kit function, this kit includes components commonly used during LT 5005 spring unit service.

Component Type Purpose
Springs Help restore compression and rebound performance inside the spring unit
Stops / internal buffers Help control impact movement and protect spring unit components
Gasket Helps reseal the spring unit during reassembly
O-ring Supports sealing around the repaired assembly
Sealing washers Help reduce the risk of leakage after repair
Hardware Used to secure components during spring unit rebuild

Note: Exact contents should always be verified against the LT 5005 parts diagram and the kit packaging before installation.


Why This Part Matters

The spring unit is central to rammer performance. A tamping rammer can have a good engine and still perform poorly if the spring unit is worn, leaking, or internally damaged. The spring unit helps convert engine-driven motion into repeated impact force at the rammer foot. When it is not functioning correctly, the machine may lose hitting power, bounce irregularly, or fail to compact material efficiently.

The Husqvarna 594657101 repair kit is intended for internal spring unit service on the LT 5005. It is not a simple exterior accessory or cosmetic replacement. It is a mechanical repair kit used when the rammer requires more involved service beyond regular air filter, fuel filter, belt, or spark plug maintenance.

For contractors and rental fleets, replacing worn spring unit components can help reduce downtime and restore field performance without replacing the entire machine.

FAQs

1. What machine does Husqvarna 594657101 fit?

The Husqvarna 594657101 spring unit repair kit fits the Husqvarna LT 5005 tamping rammer.

2. Is 594657101 the same as 594 65 71-01?

Yes. 594657101 and 594 65 71-01 refer to the same Husqvarna article number. One version is written without spaces, while the other follows Husqvarna’s spaced part-number format.

3. What does the spring unit repair kit do?

This kit is used to repair or rebuild the LT 5005 spring unit assembly. The spring unit helps transfer compaction force through the rammer leg and foot during operation.

4. When should I replace or rebuild the LT 5005 spring unit?

Consider spring unit service if the rammer has weak impact, inconsistent rebound, abnormal vibration, reduced compaction performance, or oil leakage near the spring unit or rammer leg area.

5. Does this kit fit LT 6005 or LT 8005 rammers?

Do not assume fitment for LT 6005 or LT 8005. This listing is for LT 5005. Other Husqvarna rammer models may use a different spring unit repair kit, so verify your exact model and part number before ordering.
