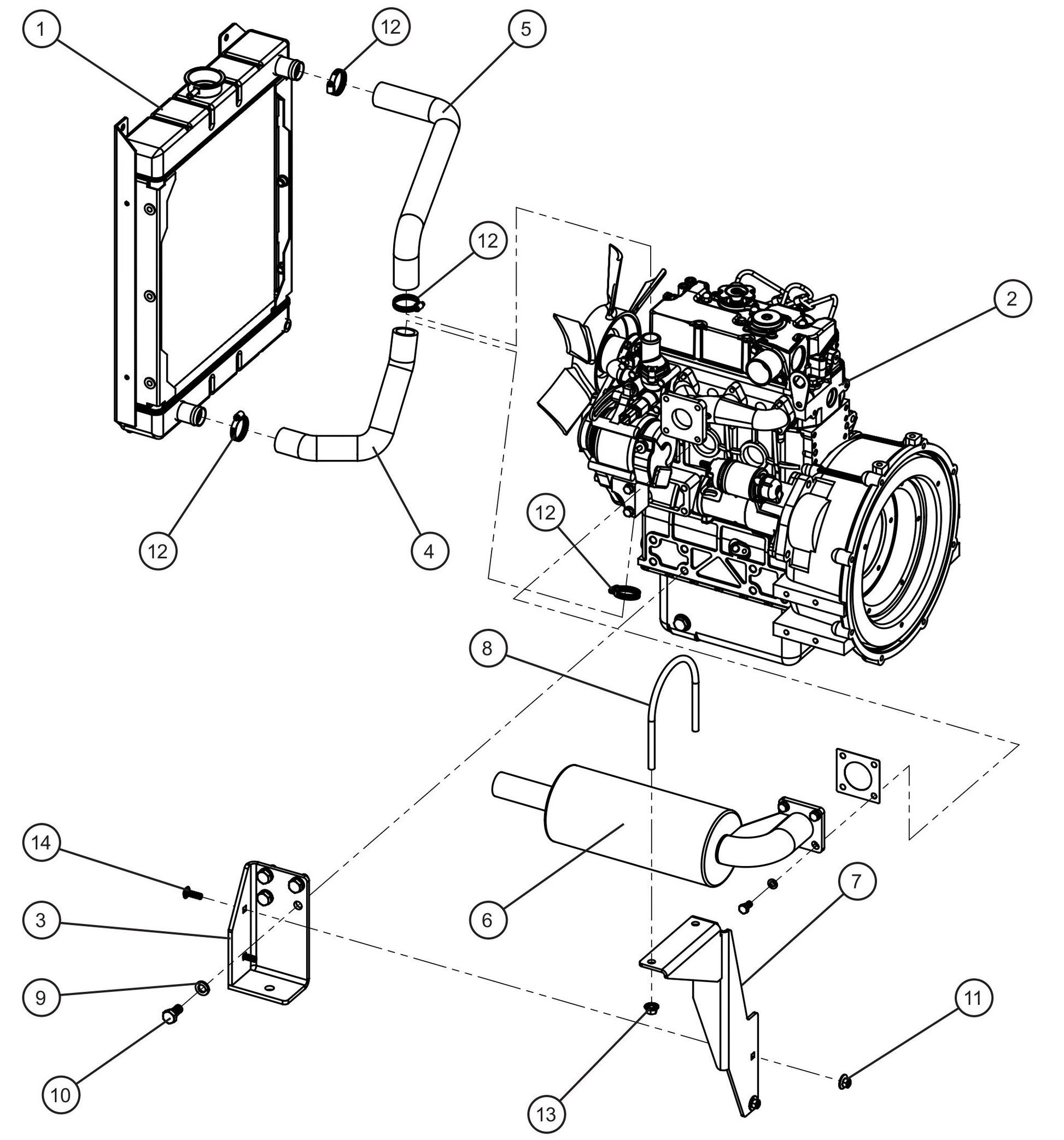

GR Series 6kW Night-Lite - CAT C1.1 Diesel Engine (1 of 4) Assembly Parts By Allmand

GR Series 6kW Night-Lite - CAT C1.1 Diesel Engine (1 of 4) Assembly Parts By Allmand

  • GR Series 6kW Night-Lite - CAT C1.1 Diesel Engine (1 of 4) Assembly Parts By Allmand
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
105393 Radiator Small Engines 1.0L / 1.1L for Night-Lite Pro Il LD-Series Light Towers by Allmand
$891.00
2
112561 Cat C1.1 Engine for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
3
108889P Engine Bracket Left Weldment for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
4
108751 Cat C1.1 Lower Radiator Hose for Night-Lite V-Series Light Towers by Allmand
$64.43
5
108750 Cat C1.1 Upper Radiator Hose for Night-Lite V-Series Light Towers by Allmand
$65.21
7
112309P Muffler Bracket Weldment for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
8
105744 4.75” Muffler U-Bolt for Night-Lite Pro Il LD-Series Light Towers by Allmand
$18.38
9
043085 1/2 Splitlock Washer Pl for Night-Lite Pro Ii V-Series Light Towers by Allmand
$2.99
10
042300 M12 X 25Mm X 1.25Mm Hex Head Cs Gr8.8 Pl for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
11
057008 5/16-18 Hex Nylock Flange Nut for Night-Lite GR-Series Liquid Cooled Light Towers by Allmand
Call for Price call for price call for price
12
045034 #16 Clamp Hose for Night-Lite GR-Series Liquid Cooled Light Towers by Allmand
$4.88
13
044029 3/8-16 Serrated Flange Nut for Night-Lite Pro Il LD-Series Light Towers by Allmand
$2.99
14
053020 5/16-18 X 1 Carriage Bolt for Night-Lite GR-Series Liquid Cooled Light Towers by Allmand
$2.99
-
110113 Cat C1.1 Engine Harness for Night-Lite Pro Il LD-Series Light Towers by Allmand
$287.03
-
113494 Cat C1.1 40Amp Charge Circuit Fuse for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
-
110112 Cat/Perkins 1.1L Schematic for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
6
Call for Price call for price call for price
View full details
