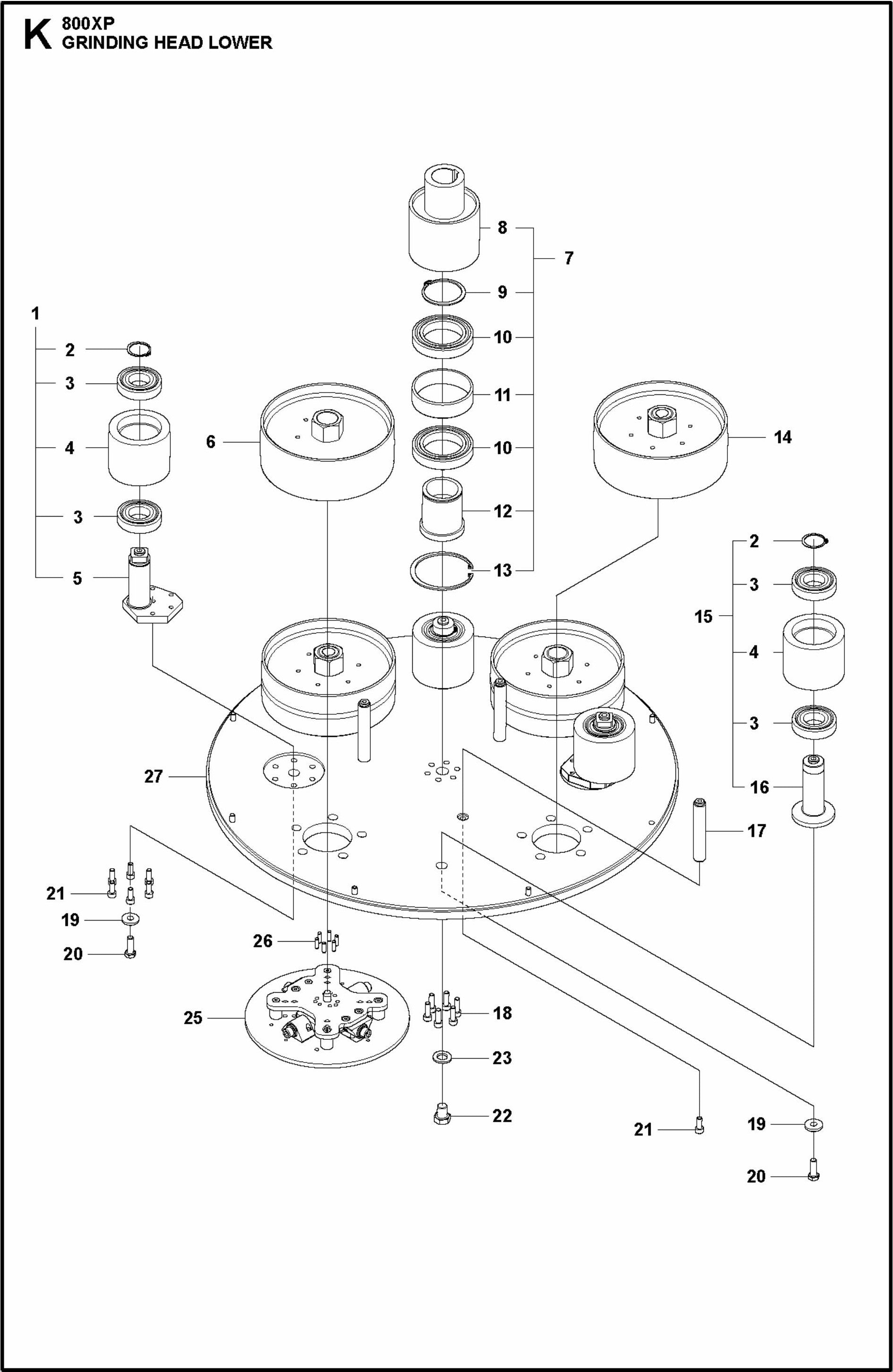

HTC 800 XP Grinding Head Lower Assembly Parts

HTC 800 XP Grinding Head Lower Assembly Parts

  • HTC 800 XP Grinding Head Lower Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
595637101 Wheel for HTC 800 XP Floor Grinder by Husqvarna
Call for Price call for price call for price
2
593498101 Circlip for PG830 Floor Grinder and Polisher by Husqvarna
$1.25
3
593385101 Ball Bearing for HTC 800 XP Floor Grinder by Husqvarna
$32.98
4
593410701 Wheel for HTC 800 XP Floor Grinder by Husqvarna
$126.47
5
598730901 Wheel for HTC 800 XP Floor Grinder by Husqvarna
Call for Price call for price call for price
6
593424401 Hub Assy for HTC 800 XP Floor Grinder by Husqvarna
$1,200.95
7
593412501 Pulley for HTC 800 XP Floor Grinder by Husqvarna
$760.84
8
593409401 Pulley for HTC 800 XP Floor Grinder by Husqvarna
$393.58
9
593502901 Circlip for PG830 Floor Grinder and Polisher by Husqvarna
$10.89
10
593411301 Ball Bearing for HTC 800 XP Floor Grinder by Husqvarna
$117.36
11
593409301 Spacer for HTC 800 XP Floor Grinder by Husqvarna
$73.35
12
593409201 Shaft for HTC 800 XP Floor Grinder by Husqvarna
$199.32
13
593503001 Circlip for PG510 Floor Grinder and Polisher by Husqvarna
$11.10
14
593412401 Hub Assy for HTC 800 XP Floor Grinder by Husqvarna
$1,189.82
15
593412601 Wheel for HTC 800 XP Floor Grinder by Husqvarna
$326.80
16
593410601 Shaft for HTC 800 XP Floor Grinder by Husqvarna
$62.32
17
593409901 Shaft for HTC 800 XP Floor Grinder by Husqvarna
$12.54
18
593499601 Screw for HTC 800 XP Floor Grinder by Husqvarna
$1.33
19
593498501 Washer for HTC 800 XP Floor Grinder by Husqvarna
$2.48
20
593499701 Screw for HTC 800 XP Floor Grinder by Husqvarna
$1.33
21
593502801 Screw for HTC 800 XP Floor Grinder by Husqvarna
$2.99
22
593505701 Screw for HTC 800 XP Floor Grinder by Husqvarna
$3.99
23
593497501 Washer for HTC 800 XP Floor Grinder by Husqvarna
$2.99
24
593319105 Tool Holder for HTC 800 XP Floor Grinder by Husqvarna
$155.10
25
593439001 Holder for HTC 800 XP Floor Grinder by Husqvarna
$604.02
26
593498901 Pin for HTC 800 XP Floor Grinder by Husqvarna
$3.59
27
595810301 Lid for HTC 800 XP Floor Grinder by Husqvarna
$2,443.38
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
