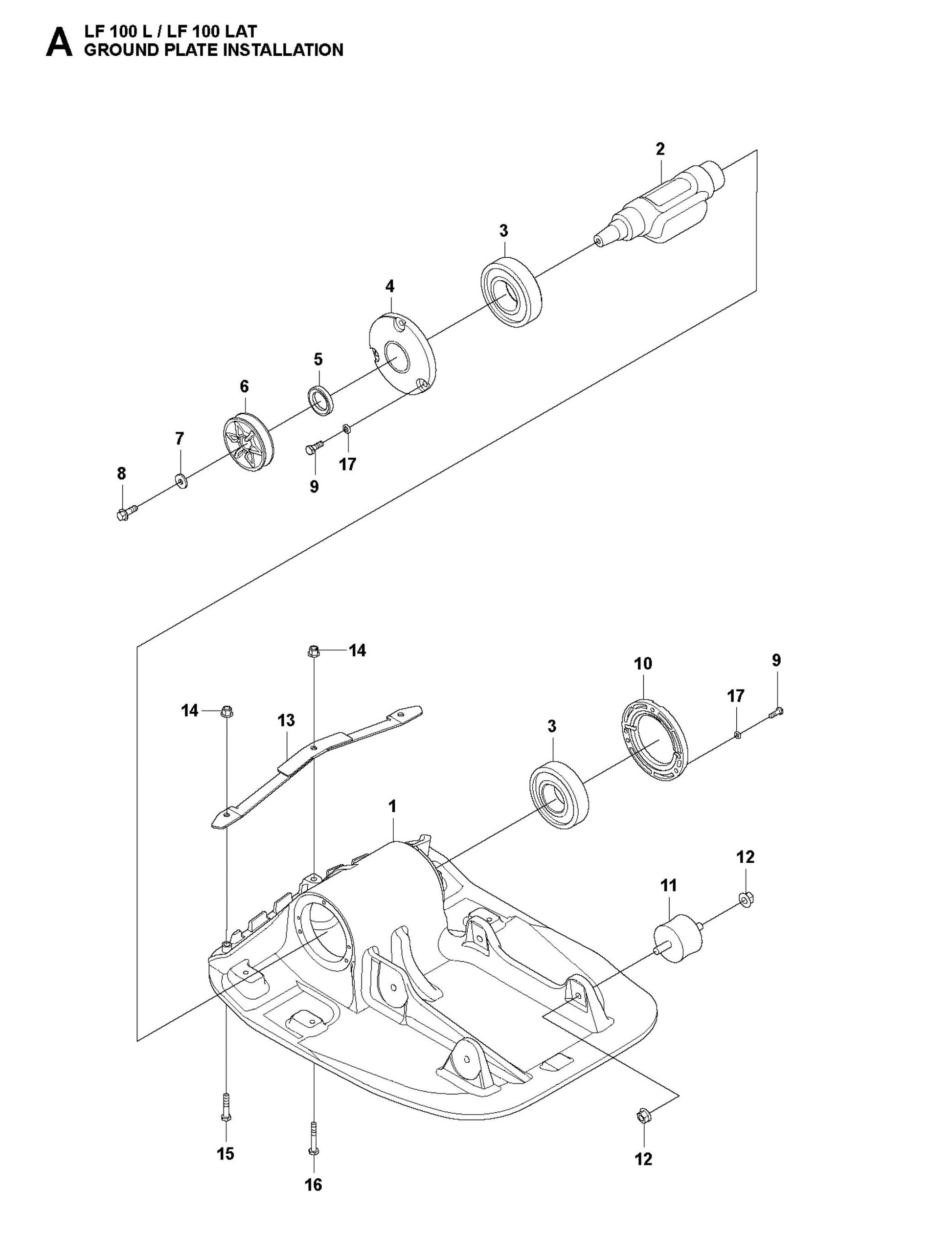

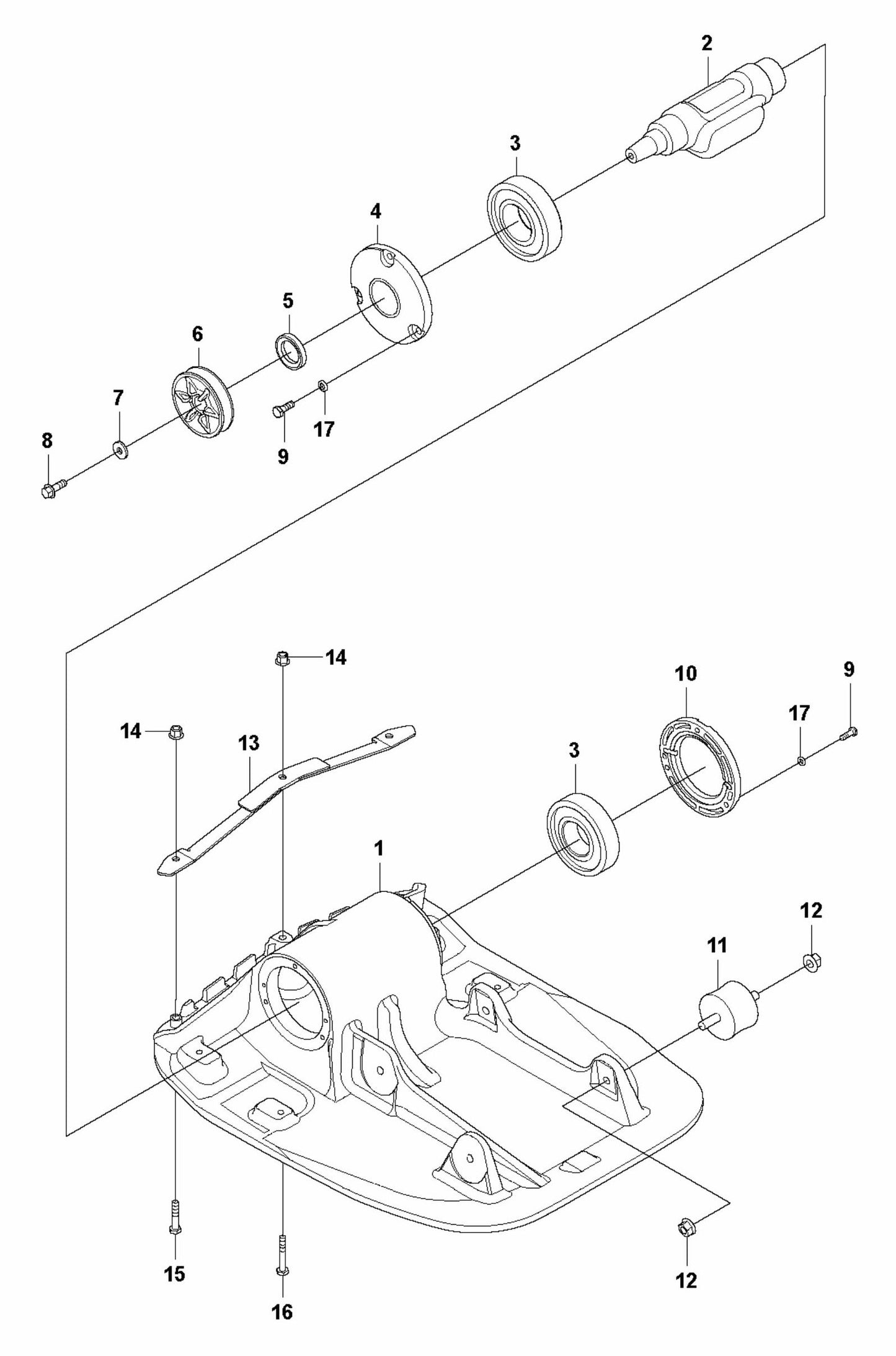

Ground Plate Installation Assembly Parts For LF 100 L Diesel By Husqvarna

Ground Plate Installation Assembly Parts For LF 100 L Diesel By Husqvarna

  • Ground Plate Installation Parts For LF 100 L Diesel By Husqvarna
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
594650901 BOTTOM PLATE FOR COMPACTION EQUIPMENT BY HUSQVARNA
$466.42
2
594643901 ECCENTRIC SHAFT FOR COMPACTION EQUIPMENT BY HUSQVARNA
$86.71
3
594526101 BALL BEARING FOR COMPACTION EQUIPMENT BY HUSQVARNA
$187.70
4
594490101 COVER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$17.58
5
594128301 LIP-TYPE OIL SEAL FOR COMPACTION EQUIPMENT BY HUSQVARNA
$9.87
6
594486701 V-BELT PULLEY FOR COMPACTION EQUIPMENT BY HUSQVARNA
$42.60
7
594123401 WASHER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$4.99
8
594120001 FLANGE SCREW QTY 10 FOR COMPACTION EQUIPMENT BY HUSQVARNA
$15.99
9
595033201 HHCS, M6X16 (8.8) FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
10
594490201 COVER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$10.14
11
594341901 SHOCKABSORBER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$16.90
12
594122601 HEXAGON NUT M10X10 FOR COMPACTION EQUIPMENT BY HUSQVARNA
$12.10
13
594653201 SPRINKLER BAR 500 MM FOR COMPACTION EQUIPMENT BY HUSQVARNA
$72.87
14
594123001 LOCK NUT FOR COMPACTION EQUIPMENT BY HUSQVARNA
$2.99
15
595033501 SCREW, CAP FOR CONCRETE PLACEMENT EQUIPMENT EQUIPMENT BY HUSQVARNA
$2.99
16
595287101 SCREW:M 8X 50;HEX HD,ZN PLT,$S FOR COMPACTION EQUIPMENT BY HUSQVARNA (Sold as a Pack of 10)
$14.60
17
594124601 LOCK WASHER M6 FOR COMPACTION EQUIPMENT BY HUSQVARNA
$4.99
