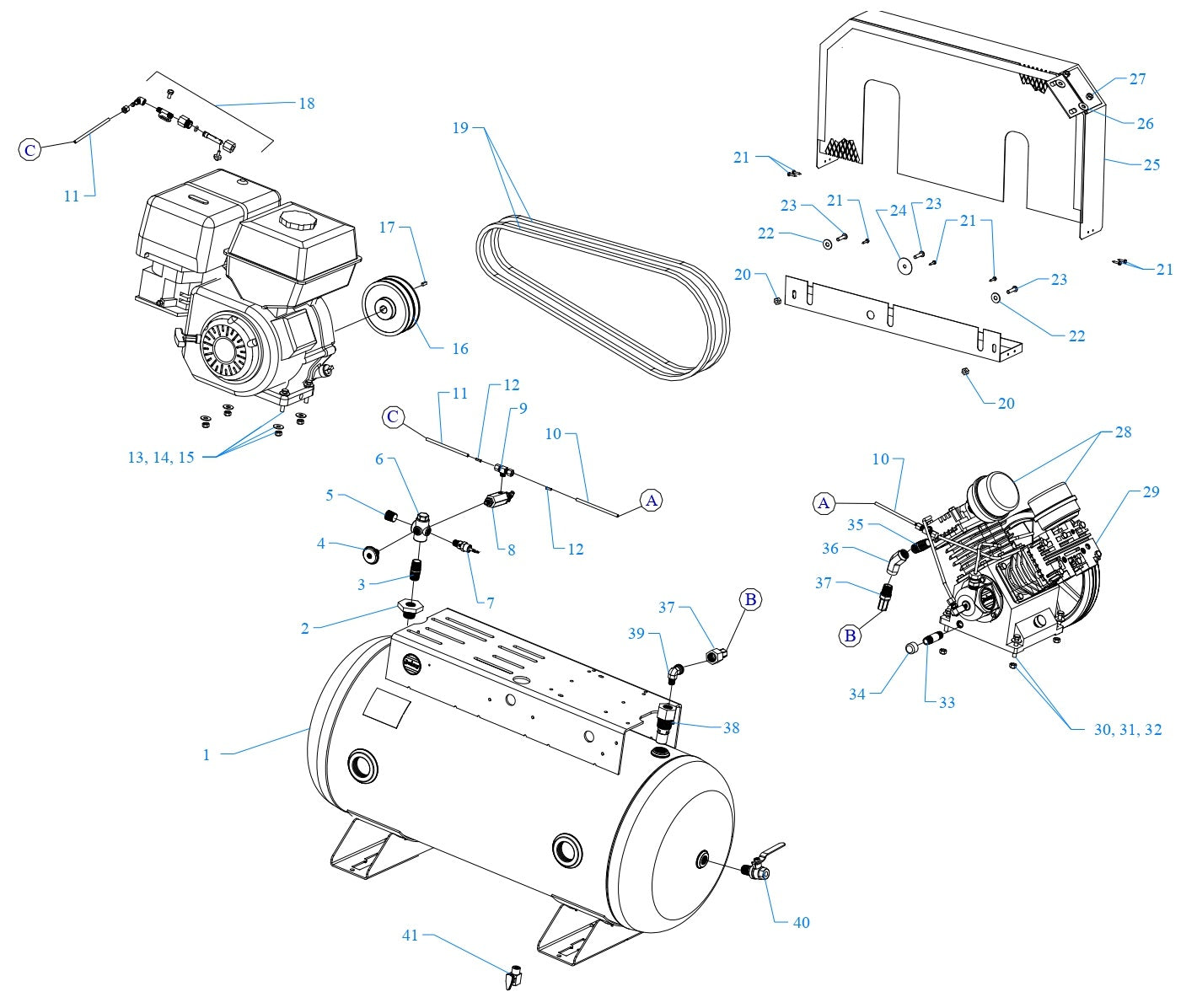

GT5HGB-30T Two Stage Air Compressor Assembly Parts By Jenny

GT5HGB-30T Two Stage Air Compressor Assembly Parts By Jenny

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
411-1055 Tank, Hrzntl, 30G, Unb, K&G&Gtg, H30U-3 for Jenny Air Compressors H30U-3 4111055
$1,009.26
2
1221071 Bushing Reducer Hex St Pltd 3/4" X 1/2"N for Jenny Air Compressors 122-1071
$19.56
3
122-1088 Nipple Steel Sch 80 Plated 1/2" X 2" for Jenny Air Compressors 1221088
$27.58
4
142-1003 Gauge, Psi, 200#, Bk Mt, Jenny, 1.5, 1/4”, Pg14 for Jenny Air Compressors PG14 1421003
$20.16
5
1221047 Plug Socket Hex St Pl 1/2" Npt for Jenny Air Compressors 122-1047
$18.81
6
220-1121 Block, Manifold, Zinc, 5 Hole, Tapped, Mc-5 for Jenny Air Compressors MC-5 2201121
$28.30
7
141-1011 Valve, Safety, Asme, 1/4”, 200 Psi, Svu200 for Jenny Air Compressors SVU200 1411011
$36.00
8
1411048 Valve Pilot With Hand Unloader 175Psi 1/4"M for Jenny Air Compressors 141-1048
$109.12
9
1211039 Tee Branch Brass 1/4"Tbx1/4"Tbx1/8"Nptm for Jenny Air Compressors 121-1039
$38.68
10
6101091 Tube Control Nylon With Sleeve 1/4"X39"Lg for Jenny Air Compressors 610-1091
$36.64
11
6101092 Tube Control Nylon W/Sleeve 1/4"X14"Lg by Jenny Air Compressors 610-1092
$25.93
12
1211048 Insert Tubing Brass 1/4"Od Nylon for Jenny Air Compressors 121-1048
$5.39
13
1201018 Screw Flange Hex Serr St Pld 5/16-18X3/4 for Jenny Air Compressors 120-1018
$10.70
14
1201075 Washer Flat Steel Plated 5/16" for Jenny Air Compressors 120-1075
$2.99
22
1201075 Washer Flat Steel Plated 5/16" for Jenny Air Compressors 120-1075
$2.99
26
1201075 Washer Flat Steel Plated 5/16" for Jenny Air Compressors 120-1075
$2.99
15
120-1119 Nut Lock Flange Hex Serr St Pltd 5/16-18 for Jenny Air Compressors 1201119
$4.04
27
120-1119 Nut Lock Flange Hex Serr St Pltd 5/16-18 for Jenny Air Compressors 1201119
$4.04
16
1541218 Pulley Ci Dg 2.3Pda 3/4Id 2Ak25X3/4 for Jenny Air Compressors 154-1218
$171.67
17
1201108 Key Steel Black 3/16X3/16X 1-1/2" Length for Jenny Air Compressors 120-1108
$3.99
18
320-1017 Control, Idle, Honda, 4-6.5Hp, Assy, Tic-5Hg for Jenny Air Compressors TIC-5HG 3201017
$56.83
19
154-4L580 Belt, Vee, A56, 4L-580 for Jenny Air Compressors 4L580 1544L580
$19.87
20
1201116 Nut Lock Flange Hex Serr St Pltd 1/4-20 for Jenny Air Compressors 120-1116
$3.99
32
1201116 Nut Lock Flange Hex Serr St Pltd 1/4-20 for Jenny Air Compressors 120-1116
$3.99
21
1201177 Screw Self Drill Hex St Pl 12 X 3/4 for Jenny Air Compressors 120-1177
$5.39
23
1201267 Screw Pan Hd Phil Steel Pltd 1/4-20 X 1" for Jenny Air Compressors 120-1267
$6.68
24
1201272 Washer Fender St Plated 1/4 X 1-1/2"Od by Jenny Air Compressors 120-1272
Call for Price call for price call for price
25
3201179 Beltguard G&Gc With Pan 3.38Wx14.63Hx28Lg for Jenny Air Compressors 320-1179
$446.50
28
320-1121 Filter, W/Decal, Assy, G154S for Jenny Air Compressors G154S 3201121
$96.39
29
421-1820 Pump Cmprsr Piston Replcmt Blue Gtu for Jenny Air Compressors 4211820
$2,473.12
30
1201009 Screw Cap Hexhd Gr5 St Pltd 1/4-20X1-1/4 for Jenny Air Compressors 120-1009
$9.84
31
1201071 Washer Flat Steel Plated Uss 1/4" for Jenny Air Compressors 120-1071
$2.99
33
1221037 Nipple Steel Sch 40 3/8" X 2" L for Jenny Air Compressors 122-1037
$18.81
34
1221127 Cap Hex Mi Plated 3/8"Npt by Jenny Air Compressors 122-1127
$32.44
35
1221042 Nipple Close Steel Sch 80 1/2"Nptm for Jenny Air Compressors 122-1042
$18.81
36
122-1063 Elbow Female Mi Pltd 45 Deg 1/2"Npt for Jenny Air Compressors 1221063
$19.56
37
360-1172 Aftercooler Hose Ss Teflon 5/8"Odx22-1/2 for Jenny Air Compressors 3601172
$120.61
38
141-1035 Valve, Check, Insert, 3/4”M X1/2”F for Jenny Air Compressors 3412 1411035
$46.89
39
1211015 Elbow Male Brass 5/8-45Saex1/2"Nptm for Jenny Air Compressors 121-1015
$57.87
40
141-1078 Valve, Ball, Lever, 1/4 Turn, 1/2Mx1/2F, Gv12 for Jenny Air Compressors GV12 1411078
$15.67
41
1411075 Valve Ball Lever 1/4 Turn 1/4"Npt by Jenny Air Compressors 141-1075
$76.59
-
63417210ZE1822 Filter Air Honda 5.5Hp 17210-Ze1-822 by Jenny Air Compressors 634-17210ZE1822
Call for Price call for price call for price
-
610-1225 Filter Element, Pkg Of 4, G54Ep for Jenny Air Compressors G54EP 6101225
$46.67
-
105-1209 Oil, Pump, Synthetic, Blue, 1 Quart, Esq for Jenny Air Compressors ESQ 1051209
$29.47
