GT8HGB-30T Two Stage Air Compressor Assembly Parts By Jenny

GT8HGB-30T Two Stage Air Compressor Assembly Parts By Jenny

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
411-1159 Tank, Hrzntl, 30G, Um, G&Gc&Gt&J&W for Jenny Air Compressors 4111159
$956.59
2
360-1086 Drain, Tank, Bucket High, Vehicle, Service for Jenny Air Compressors BHTD 3601086
$37.49
3
141-1078 Valve, Ball, Lever, 1/4 Turn, 1/2Mx1/2F, Gv12 for Jenny Air Compressors GV12 1411078
$15.67
4
141-1077 Valve Ball Lever 1/4 Turn 1/4"M X 1/4"F for Jenny Air Compressors 1411077
$49.46
6
142-1003 Gauge, Psi, 200#, Bk Mt, Jenny, 1.5, 1/4”, Pg14 for Jenny Air Compressors PG14 1421003
$20.16
7
6101087 Tube Control Nylon With Sleeve 1/4"X33"Lg for Jenny Air Compressors 610-1087
$36.88
8
1411048 Valve Pilot With Hand Unloader 175Psi 1/4"M for Jenny Air Compressors 141-1048
$109.12
9
1211039 Tee Branch Brass 1/4"Tbx1/4"Tbx1/8"Nptm for Jenny Air Compressors 121-1039
$38.68
10
1211048 Insert Tubing Brass 1/4"Od Nylon for Jenny Air Compressors 121-1048
$5.39
11
6101092 Tube Control Nylon W/Sleeve 1/4"X14"Lg by Jenny Air Compressors 610-1092
$25.93
12
3601385 Aftercooler Hose Ss Teflon 5/8"Odx11-1/2 by Jenny Air Compressors 360-1385
$111.92
13
1411105 Valve Check 1" X 2 Ea 1/2" Ports by Jenny Air Compressors 141-1105
$158.59
14
141-1011 Valve, Safety, Asme, 1/4”, 200 Psi, Svu200 for Jenny Air Compressors SVU200 1411011
$36.00
15
1201009 Screw Cap Hexhd Gr5 St Pltd 1/4-20X1-1/4 for Jenny Air Compressors 120-1009
$9.84
16
1201071 Washer Flat Steel Plated Uss 1/4" for Jenny Air Compressors 120-1071
$2.99
17
1201116 Nut Lock Flange Hex Serr St Pltd 1/4-20 for Jenny Air Compressors 120-1116
$3.99
31
1201116 Nut Lock Flange Hex Serr St Pltd 1/4-20 for Jenny Air Compressors 120-1116
$3.99
18
421-1820 Pump Cmprsr Piston Replcmt Blue Gtu for Jenny Air Compressors 4211820
$2,473.12
19
1221039 Nipple Steel Sch 40 3/8" X 5" L for Jenny Air Compressors 122-1039
$18.81
20
1221084 Cap Female Mi 3/8"Npt for Jenny Air Compressors 122-1084
$32.44
21
1211021 Elbow Brass Male 45Deg 5/8-45Saex1/2"Npt for Jenny Air Compressors 121-1021
$80.37
22
1201018 Screw Flange Hex Serr St Pld 5/16-18X3/4 for Jenny Air Compressors 120-1018
$10.70
23
1201075 Washer Flat Steel Plated 5/16" for Jenny Air Compressors 120-1075
$2.99
36
1201075 Washer Flat Steel Plated 5/16" for Jenny Air Compressors 120-1075
$2.99
24
120-1119 Nut Lock Flange Hex Serr St Pltd 5/16-18 for Jenny Air Compressors 1201119
$4.04
37
120-1119 Nut Lock Flange Hex Serr St Pltd 5/16-18 for Jenny Air Compressors 1201119
$4.04
25
6101408 Drain Engine Honda 8-13Hp Assy by Jenny Air Compressors 610-1408
$202.08
26
320-1020 Control, Idle, Honda, 8Hp, Assy, Tic-8Hg for Jenny Air Compressors TIC-8HG 3201020
$57.14
27
154-1041 Pulley Ci Dg 3.7Pda 1Id 2Ak41X1 for Jenny Air Compressors 1541041
$242.53
28
1201109 Key Steel Black 5/16X5/16X 1-1/2" Length for Jenny Air Compressors 120-1109
$3.99
29
154-4L580 Belt, Vee, A56, 4L-580 for Jenny Air Compressors 4L580 1544L580
$19.87
30
320-1121 Filter, W/Decal, Assy, G154S for Jenny Air Compressors G154S 3201121
$96.39
32
1201072 Washer Fender St Plated 1/4"X1-1/2"Od for Jenny Air Compressors 120-1072
$3.99
33
1201267 Screw Pan Hd Phil Steel Pltd 1/4-20 X 1" for Jenny Air Compressors 120-1267
$6.68
34
1201177 Screw Self Drill Hex St Pl 12 X 3/4 for Jenny Air Compressors 120-1177
$5.39
35
3201180 Beltguard Gt With Pan 4.13Wx14.89Hx30.25Lg for Jenny Air Compressors 320-1180
Call for Price call for price call for price
38
1311022 Engine Gas Honda 8 Hp E/S Gx240Kiqae2 by Jenny Air Compressors 131-1022
Call for Price call for price call for price
-
63417210ZE282 Filter Air Honda 8Hp 17210-Ze2-821 by Jenny Air Compressors 634-17210-ZE2-82
Call for Price call for price call for price
-
610-1225 Filter Element, Pkg Of 4, G54Ep for Jenny Air Compressors G54EP 6101225
$46.67
-
105-1209 Oil, Pump, Synthetic, Blue, 1 Quart, Esq for Jenny Air Compressors ESQ 1051209
$29.47
5
1211189 Tee Street Brass 1/4"Npt by Jenny Air Compressors 121-1189
$29.89
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

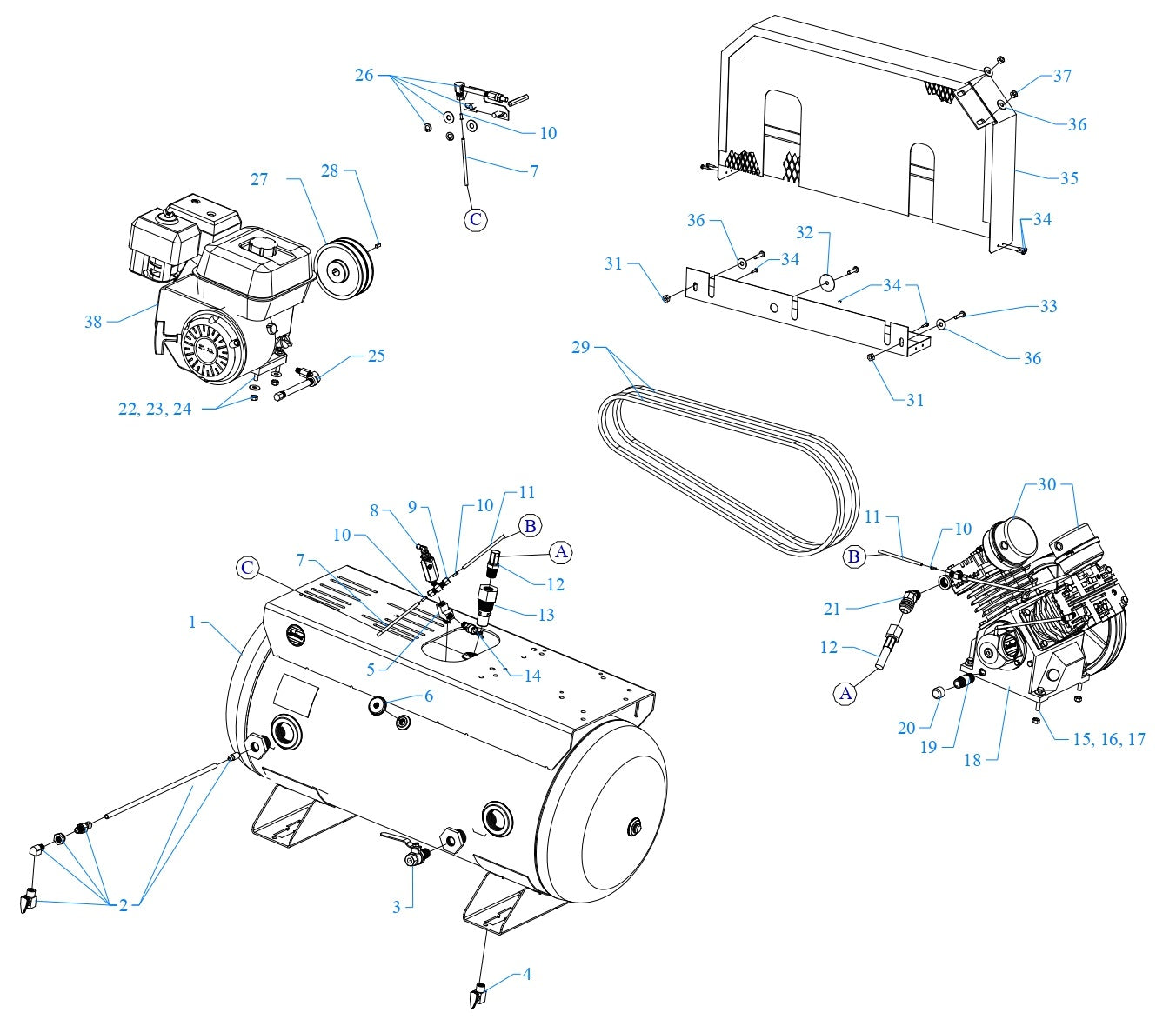

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
