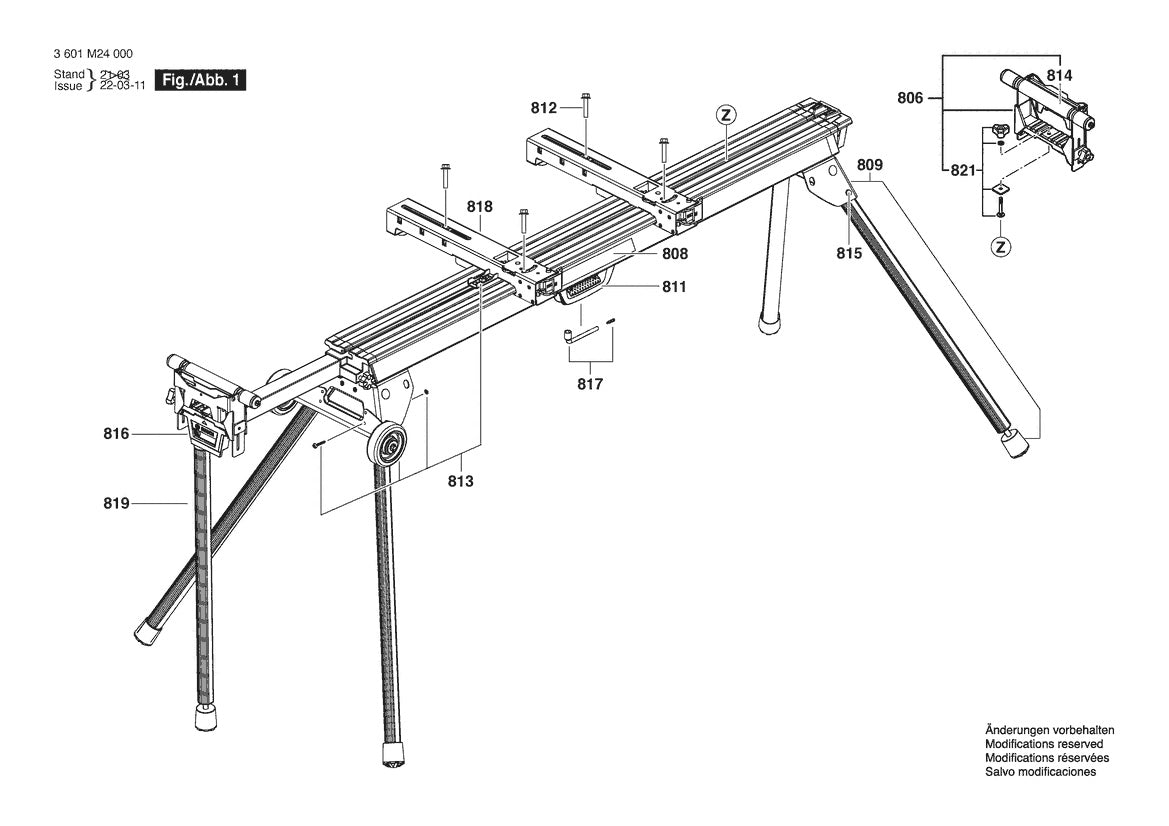

GTA3800 Bosch Folding Leg Miter Saw Stand Bosch Miter Saw Parts Diagram

GTA3800 Bosch Folding Leg Miter Saw Stand Bosch Miter Saw Parts Diagram

  • GTA3800 Bosch Folding Leg Miter Saw Stand Bosch Miter Saw Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
812
1609B01859 Hardware Package by Bosch
$4.89
814
1609B01861 Roller Set | Genuine OEM Bosch Part
$17.96
816
1609B01864 End Cap | Genuine OEM Bosch Part
$14.33
817
1609B01857 Wrench Attachment by Bosch
$9.32
818
1609B02007 Mounting Device by Bosch
$70.27
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

View the Bosch GTA3800 Bosch Folding Leg Miter Saw Stand parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
