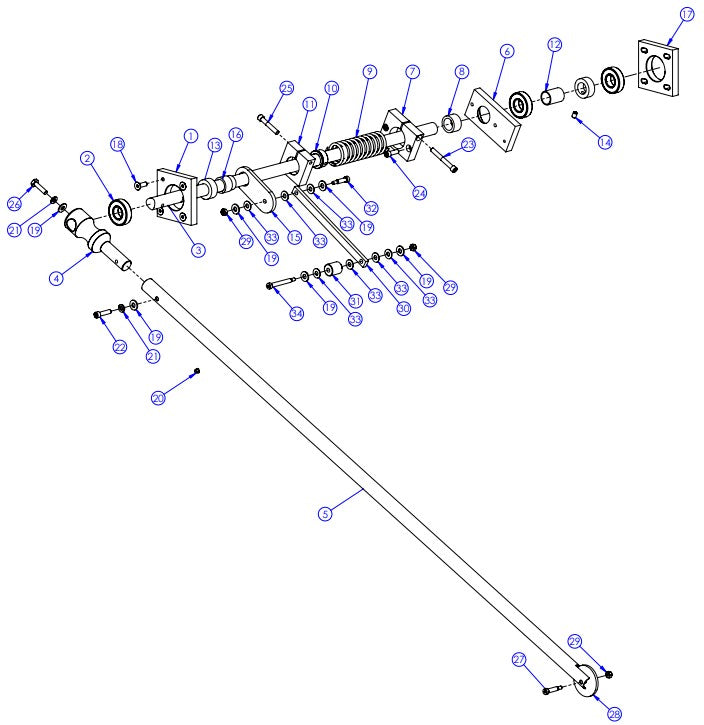

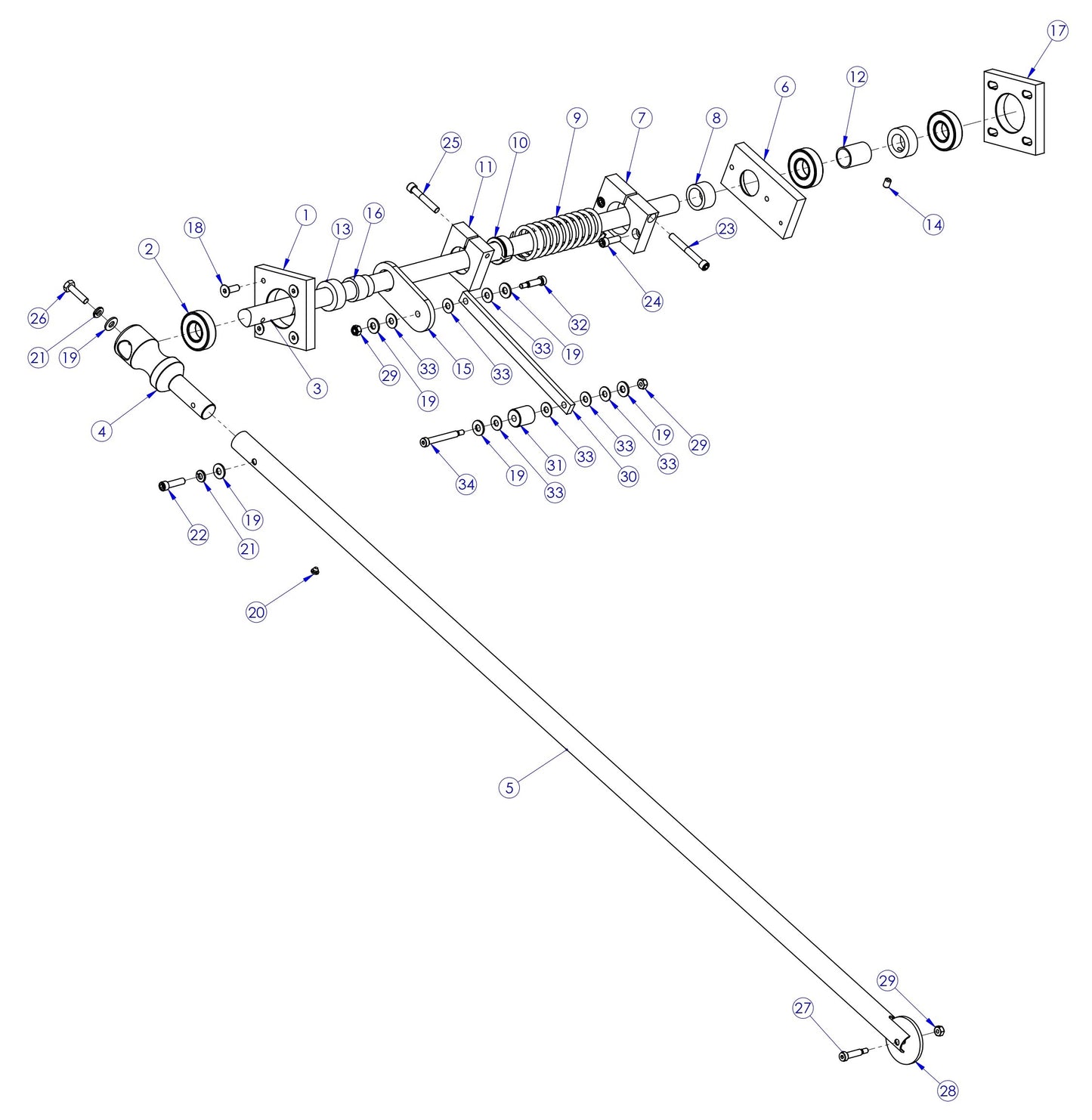

Guide Arm Assembly parts-GX4200 By Husqvarna

Guide Arm Assembly parts-GX4200 By Husqvarna

  • Guide Arm Assembly parts-GX4200 By Husqvarna
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
505713701 PLATE MOUNTING GUIDE ARM FOR EARLY ENTRY SAW BY HUSQVARNA
$54.18
2
505736101 BALL BEARING, 3/4"ID, R12-2RS FOR EARLY ENTRY SAW BY HUSQVARNA
$16.83
3
505763901 SHAFT GUIDE ARM FOR EARLY ENTRY SAW BY HUSQVARNA
$74.46
4
505769901 GUIDE MTG BLK ONE PIECE NEW FOR EARLY ENTRY SAW BY HUSQVARNA
$237.77
5
505763801 GUIDE TUBE FOR EARLY ENTRY SAW BY HUSQVARNA
$146.45
6
505717101 SPRING BLOCK G.A. FOR EARLY ENTRY SAW BY HUSQVARNA
$62.32
7
505717201 BLOCK G.A. RETURN FOR EARLY ENTRY SAW BY HUSQVARNA
$68.49
8
505717501 BUSHING G.A. FOR EARLY ENTRY SAW BY HUSQVARNA
$35.48
9
505774901 GUIDE SPRING FOR EARLY ENTRY SAW BY HUSQVARNA
$34.20
10
505717401 BUSHING SPLIT G.A. FOR EARLY ENTRY SAW BY HUSQVARNA
$41.76
11
505717301 BLOCK G.A.RET(SMALL) FOR EARLY ENTRY SAW BY HUSQVARNA
$79.40
12
505716201 BUSHING G.A. FOR EARLY ENTRY SAW BY HUSQVARNA
$8.34
13
505718401 COLLAR, SHAFT, 3/4"ID X 1/2"W FOR EARLY ENTRY SAW BY HUSQVARNA
$19.63
14
505733801 Washer for Soff Cut GX4200 Walk Behind Floor Saw by Husqvarna
Call for Price call for price call for price
15
505719101 PLATE, HOOD SUPPORT FOR EARLY ENTRY SAW BY HUSQVARNA
$24.76
16
505719301 BUSHING, HOOD SUPPORT, DELRIN FOR EARLY ENTRY SAW BY HUSQVARNA
$20.08
17
505713801 PLATE MOUNT/GUIDE ARM ADJ. FOR EARLY ENTRY SAW BY HUSQVARNA
$56.25
18
505628601 FHS 1/4-20 X 3/4 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$7.26
19
505632001 WASHER, 1/4" FLAT S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$5.90
20
505775701 RUBBER BUMPER FOR GUIDE FOR EARLY ENTRY SAW BY HUSQVARNA
$3.85
21
505632801 LK WASH 1/4 SPLIT SS for Husqvarna Soff Cut 2500 Walk Behind Saw
$5.90
22
505627901 SHCS .25-20 X 1 S.S. FOR FASTENERS BY HUSQVARNA
$5.80
23
505728901 SHCS 1/4-20 X 2 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$15.90
24
505627801 SHCS .25-20 X .75 S.S. FOR FASTENERS BY HUSQVARNA
$4.84
25
505728801 SHCS 1/4-20 X 1 1/2 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$12.80
26
505727301 HHB, 1/4-20 X 1 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$5.80
27
505771701 SHSB 1/4 X 7/8 FOR EARLY ENTRY SAW BY HUSQVARNA
$28.13
28
505614201 WHEEL, GUIDE FOR EARLY ENTRY SAW BY HUSQVARNA
$50.10
29
505630401 NYLOC NUT #10-24 CAD.PL. for Husqvarna Soff Cut 2500 Walk Behind Saw
$4.99
30
505765501 THROTTLE EXTENSION FOR EARLY ENTRY SAW BY HUSQVARNA
$21.25
31
505767001 HOOD STOP SPACER FOR EARLY ENTRY SAW BY HUSQVARNA
$23.37
32
505725801 SHSB 1/4 X 3/4 BLK STL for Husqvarna Soff Cut 2500 Walk Behind Saw
$11.70
33
505634401 WASHER, DELRIN, .60X.253X.040 FOR EARLY ENTRY SAW BY HUSQVARNA
$7.90
34
505771601 SHSB 1/4 X 1 3/4 FOR EARLY ENTRY SAW BY HUSQVARNA
$35.51
