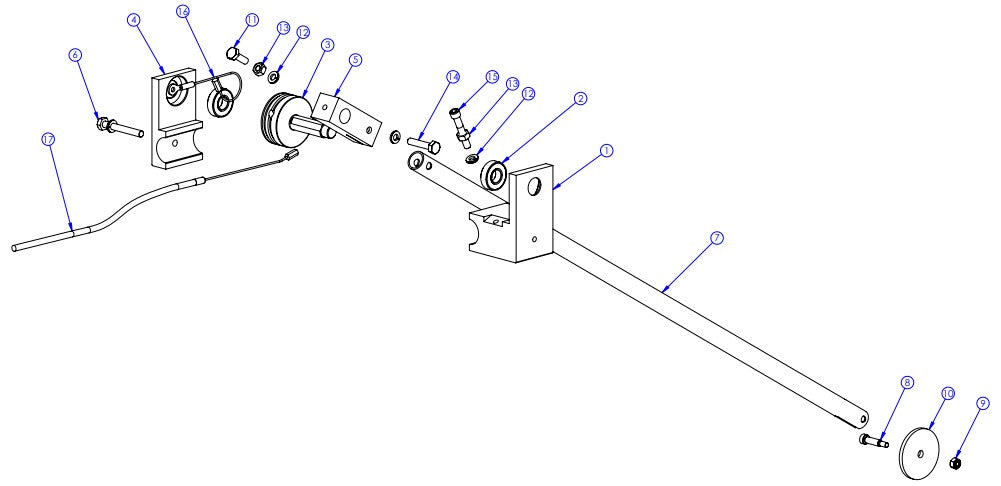

Guide Arm Assembly parts-X750 By Husqvarna

Guide Arm Assembly parts-X750 By Husqvarna

  • Guide Arm Assembly parts-X750 By Husqvarna
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
510345801 BLOCK, GA MOUNT FOR EARLY ENTRY SAW BY HUSQVARNA
$142.36
2
505654801 BALL BEARING, 1/2"ID, R8-2RS FOR EARLY ENTRY SAW BY HUSQVARNA
$29.82
3
505816101 GUIDE ARM PULLEY FOR EARLY ENTRY SAW BY HUSQVARNA
$137.60
4
510345901 BLOCK, PULLEY MOUNT FOR EARLY ENTRY SAW BY HUSQVARNA
$106.24
5
505816201 GUIDE ARM MOUNTING BLOCK FOR EARLY ENTRY SAW BY HUSQVARNA
$74.46
6
505728101 HHB, 1/4-20 X 2 ALL THRD S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$5.80
7
505677301 TUBE, GUIDE ARM FOR EARLY ENTRY SAW BY HUSQVARNA
$85.40
8
505725801 SHSB 1/4 X 3/4 BLK STL FOR EARLY ENTRY SAW BY HUSQVARNA
$11.70
9
505630401 NYLOC NUT #10-24 CAD.PL. for Husqvarna Soff Cut 2500 Walk Behind Saw
$4.99
10
505614201 WHEEL, GUIDE FOR EARLY ENTRY SAW BY HUSQVARNA
$50.10
11
505627501 HHB, 1/4-20 X 3/4 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$7.26
12
505632801 LK WASH 1/4 SPLIT SS for Husqvarna Soff Cut 2500 Walk Behind Saw
$5.90
13
505631901 NUT, JAM .25-20 S.S. FOR FASTENERS BY HUSQVARNA
$7.01
14
505728301 HHB,1/4-20 X 1 1/4 ALL THRD SS FOR EARLY ENTRY SAW BY HUSQVARNA
$5.90
15
505728801 SHCS 1/4-20 X 1 1/2 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$12.80
16
505823301 CABLE, GUIDE RETURN FOR EARLY ENTRY SAW BY HUSQVARNA
$27.25
17
505823101 CABLE, GUIDE FOR SOFF CUT 4000 SAW BY HUSQVARNA
$70.69
View full details
