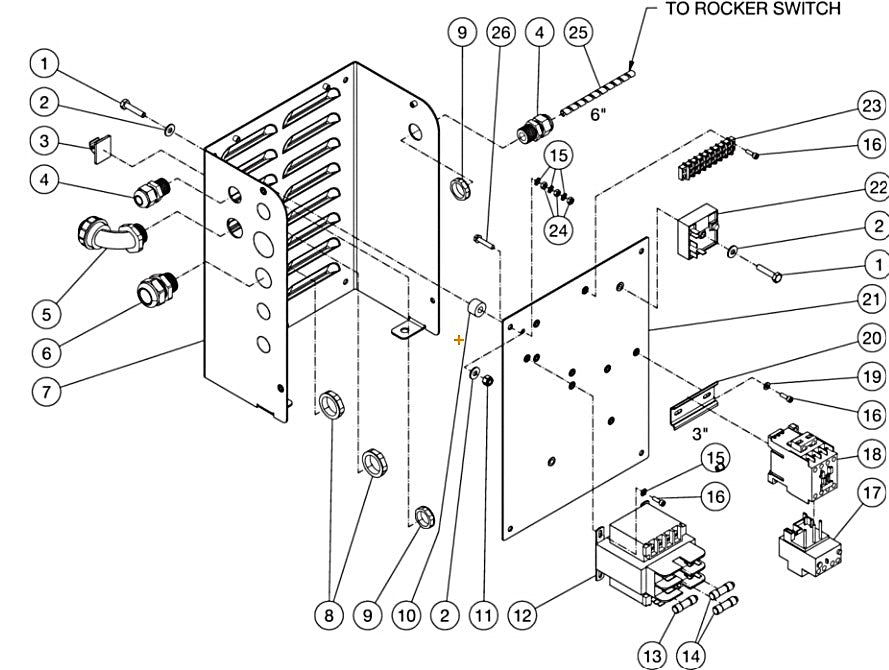

HAE-2503-0E4G, HAE-2503-0E4G CW Electric Box Assembly Parts By Mi-T-M

HAE-2503-0E4G, HAE-2503-0E4G CW Electric Box Assembly Parts By Mi-T-M

  • HAE-2503-0E4G, HAE-2503-0E4G CW Electric Box Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-0017 Bolt for MiTM Pressure Washers by MiTM 270017
$4.49
2
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
3
33-0264 Wire Clip for Mi-T-M CA-2703-8MRB by MiTM 330264
$4.85
4
32-0487 CONDUIT ELBOW BY MITM
$12.83
5
9-0046 Bushing 3/4 Elec .5-.75 Cord for AC1-PH65-08M Air Compressor by Mi-T-M 90046
$18.41
6
20-1601A18 ELECTRICAL BOX BY MITM
$172.08
7
32-0292 LOCKNUT BY MITM
Call for Price call for price call for price
8
33-0431 SPACER BY MITM
$8.51
9
32-0735 Transformer 100Va for MiTM Pressure Washers 320735
$404.00
10
32-0743 Fuse-Fla 6-1/4 for MiTM Pressure Washers 320743
$101.37
11
32-0467 Fuse 0.5A for AC1-PH65-08M Air Compressor by Mi-T-M 320467
$29.14
12
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
13
27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
14
32-0482 Overload Relay (Cx-0111) for MiTM Pressure Washers by MiTM 320482
$122.18
15
32-0481 Overload Relay (Cx-0110) for MiTM Pressure Washers by MiTM 320481
$138.62
16
32-0327 Contactor - 18Amp (Cx-0110/0111) for MiTM Pressure Washers by MiTM 320327
$166.94
17
28-0010 Washer for MiTM Pressure Washers by MiTM 280010
$4.49
18
32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316
$22.49
19
20-1600A06 CONTROL PANEL BACKPLATE BY MITM
$85.91
20
32-0800 Switch-Timer 6 Amp 24 Volt for MiTM Pressure Washers by MiTM 320800
$167.82
21
30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
22
33-0114 WRAP 1/4 OD SPIRAL *(ONE FOOT REQUIRED) BY MITM
$14.45
23
27-8807 Bolt for MiTM Pressure Washers by MiTM 278807
$4.49
