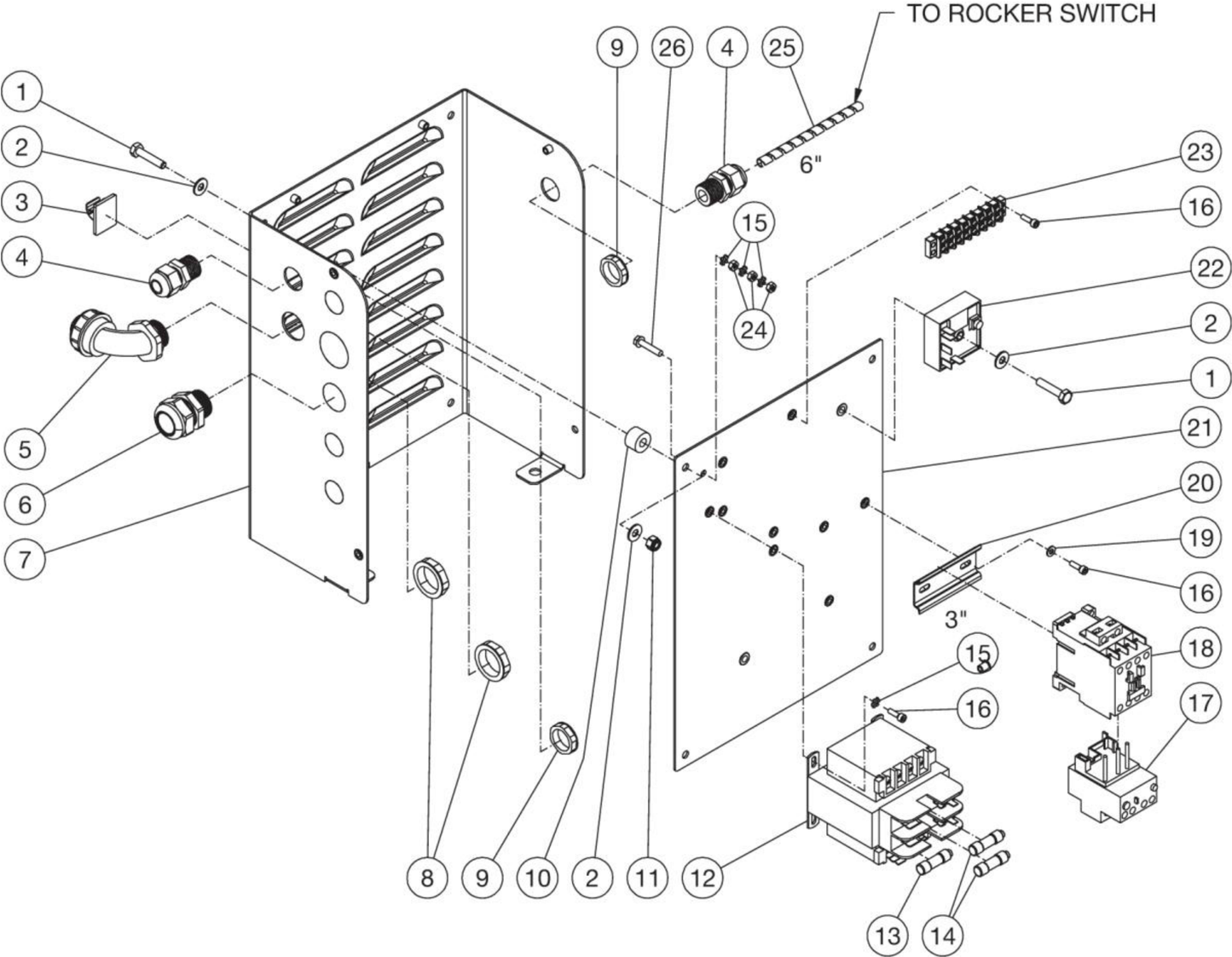

HAE-2503-0E4G, HAE-3004-0E4G CW Electric Box Assembly Parts By Mi-T-M

HAE-2503-0E4G, HAE-3004-0E4G CW Electric Box Assembly Parts By Mi-T-M

  • HAE-2503-0E4G, HAE-3004-0E4G CW Electric Box Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-0017 Bolt for MiTM Pressure Washers by MiTM 270017
$4.49
2
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
3
33-0264 Wire Clip for Mi-T-M CA-2703-8MRB by MiTM 330264
$4.85
4
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
5
32-0487 Conduit Elbow for MiTM Pressure Washers by MiTM 320487
$43.85
6
9-0046 Bushing 3/4 Elec .5-.75 Cord for AC1-PH65-08M Air Compressor by Mi-T-M 90046
$18.41
7
20-1601A18 Electrical Box for MiTM Pressure Washers 201601A18
$258.12
8
32-0292 Locknut Elect 3/4"-Diecast for AC1-PH65-08M Air Compressor by Mi-T-M 320292
$2.85
9
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
10
33-0431 Spacer for MiTM Pressure Washers 330431
$17.01
11
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
12
32-0735 Transformer 100Va for MiTM Pressure Washers 320735
$404.00
13
32-0743 Fuse-Fla 6-1/4 for MiTM Pressure Washers 320743
$101.37
14
32-0467 Fuse 0.5A for AC1-PH65-08M Air Compressor by Mi-T-M 320467
$29.14
15
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
16
27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
17
32-0482 Overload Relay (Cx-0111) for MiTM Pressure Washers by MiTM 320482
$122.18
17
32-0481 Overload Relay (Cx-0110) for MiTM Pressure Washers by MiTM 320481
$138.62
18
32-0327 Contactor - 18Amp (Cx-0110/0111) for MiTM Pressure Washers by MiTM 320327
$166.94
19
28-0010 Washer for MiTM Pressure Washers by MiTM 280010
$4.49
20
32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316
$22.49
21
20-1600A06 Control Panel Backplate for MiTM Pressure Washers 201600A06
$128.87
22
32-0800 Timer Switch for MiTM Pressure Washers by MiTM 320800
$167.82
23
32-0436 20 Amp Terminal Strip 8 Pair for AC1-HE02-05M by Mi-T-M 320436
$13.31
24
30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
25
33-0114 WRAP 1/4 OD SPIRAL *(ONE FOOT REQUIRED) BY MITM
$14.45
26
27-8807 Bolt for MiTM Pressure Washers by MiTM 278807
$4.49
