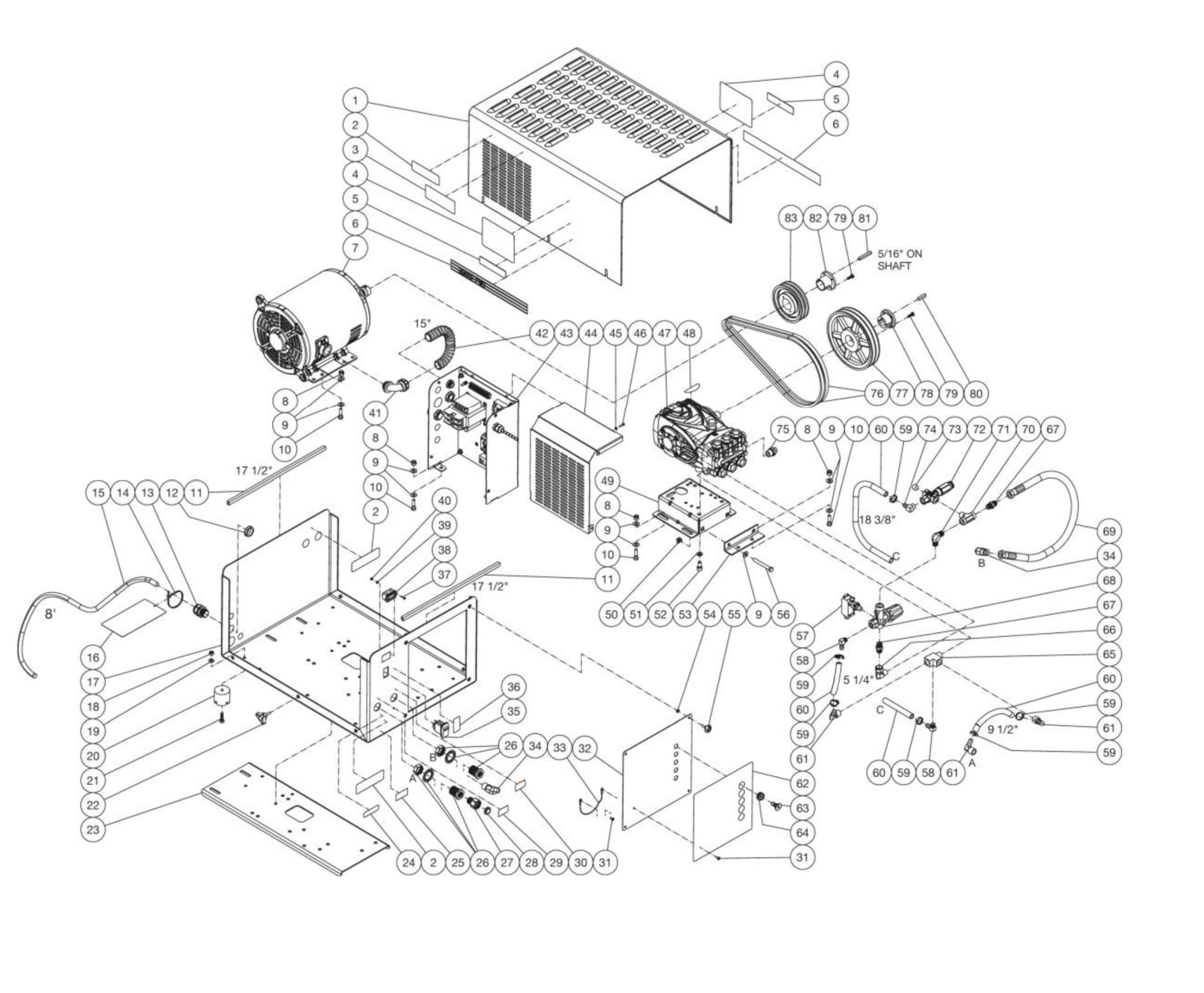

HAE-2503-0E4G, HAE-3004-0E4G, DH-2503-AE0E4G, DH-3004-AE0E4G CW Unit Assembly Parts By Mi-T-M

HAE-2503-0E4G, HAE-3004-0E4G, DH-2503-AE0E4G, DH-3004-AE0E4G CW Unit Assembly Parts By Mi-T-M

  • HAE-2503-0E4G, HAE-3004-0E4G, DH-2503-AE0E4G, DH-3004-AE0E4G CW Unit Assembly Parts By Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
21-0337 Hood for MiTM Pressure Washers 210337
$633.53
7
2-0210 Motor (3004 Three Phase, Cx-0077) for MiTM Pressure Washers 20210
$2,885.07
7
2-0208 MOTOR 6HP 230V 3PH ODP (1805/2004-0E3G/4G) BY MITM
$1,193.07
8
30-5159 Nut for MiTM Pressure Washers 305159
$7.65
9
28-0123 Washer for MiTM Pressure Washers 280123
$7.65
10
27-9563 Bolt for MiTM Pressure Washers 279563
$15.30
11
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
12
32-0292 Locknut Elect 3/4"-Diecast for AC1-PH65-08M Air Compressor by Mi-T-M 320292
$2.85
13
9-0046 Bushing 3/4 Elec .5-.75 Cord for AC1-PH65-08M Air Compressor by Mi-T-M 90046
$18.41
14
33-0022 Cable Tie for MiTM Pressure Washers 330022
$4.41
15
32-0025 Cord 12/4 So Per Ft for AC1-PH65-08M Air Compressor by Mi-T-M 320025
$13.61
17
21-0193 Frame for MiTM Pressure Washers 210193
$1,549.11
18
30-5158 Locknut for MiTM Pressure Washers 305158
$7.65
19
28-0122 Washer for MiTM Pressure Washers 280122
$5.93
20
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
21
27-5024 Bolt for MiTM Pressure Washers 275024
$7.65
22
7-0168 Knob for MiTM Pressure Washers 70168
$30.60
23
21-0240 Plate (3004 Only) for MiTM Pressure Washers 210240
$425.43
25
34-3553 Decal - Made In Usa for MiTM Pressure Washers by MiTM 343553
$2.99
27
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
31
53-0009 Rivet for MiTM Pressure Washers 530009
$9.54
32
21-0194 Service Panel for MiTM Pressure Washers 210194
$215.85
33
33-0424 Lanyard-12 Long W/2 3/16 Eyes for MiTM Pressure Washers 330424
$41.64
35
32-0801 Switch Rocker 15 Amp 24 Volt for MiTM Pressure Washers by MiTM 320801
$69.92
35
32-0731 ROCKER SWITCH BY MITM
$23.49
37
32-0668 Hour Meter/Digital for AC1-PE03-20M Air Compressor by Mi-T-M 320668
$47.99
38
32-0487 CONDUIT ELBOW BY MITM
$12.83
39
32-0486 Conduit 3/4" Black for AC1-PH65-08M Air Compressor by Mi-T-M 320486
$8.14
41
20-1637A18 ELECTRIC BOX CAP BY MITM
$60.38
42
28-0010 Washer for MiTM Pressure Washers by MiTM 280010
$4.49
45
28-0010 Washer for MiTM Pressure Washers by MiTM 280010
$4.49
43
27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
44
3-0202 BELTGUARD-PUMP (3-0202 PUMP ONLY) BY MITM
$80.00
44
3-0203 PUMP 4.0 GPM AT 3500 PSI BY MITM
$1,388.70
46
5-0153A18 Pump Hat BY MITM
$34.43
47
30-6025 CLIP NUT BY MITM
$7.13
49
27-8471 BOLT BY MITM
$7.65
50
20-0584A18 Tension Bracket BY MITM
$10.13
52
28-1045 WASHER BY MITM
$2.55
57
62-0057 Knob W/Stud M6-1.00P X 16Mm for AC1-PH65-08M Air Compressor by Mi-T-M 620057
$4.85
58
15-0007 HOSE *(TWO FEET REQUIRED) BY MITM
$3.51
60
23-0418 Elbow 1/2 Mnpt X 1/2 Barb for Mi-T-M CA-2703-8MRB by MiTM 230418
$15.76
60
18-0402 Nozzle 00045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180402
$7.95
60
18-0403 Nozzle 15045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180403
$7.95
60
18-0404 Nozzle 25045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180404
$7.95
60
18-0405 Nozzle 40045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180405
$7.95
60
18-0392 Nozzle 00035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180392
$11.93
60
18-0393 Nozzle 15035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180393
$11.93
60
18-0395 Nozzle 25035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180395
$11.93
63
18-0396 Nozzle 40035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180396
$11.93
65
24-0046 Elbow 3/8Mx1/2Jic Fs 90 Steel for AC2-PH11-20M Air Compressor by Mi-T-M 240046
$33.30
67
24-0184 TEE BY MITM
$24.30
68
24-0131 Elbow 3/8Mnpt X 3/8Mnpt-Steel for MiTM Pressure Washers by MiTM 240131
$24.15
69
22-0507 REGULAR VALVE BY MITM
$125.55
70
23-0244 Plug 3/8 Hex Socket Head Brass for AC1-PR07-20M Air Compressor by Mi-T-M 230244
$19.70
71
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
72
22-0371 Valve-Thermal Relief 1/2M 190F for AM2-PH09-20M Air Compressor by Mi-T-M 220371
$35.85
73
10-0007 Sheave 2Ak84H for AC2-SV11-30M Air Compressor by Mi-T-M 100007
$124.92
74
10-0104 Sheave for MiTM Pressure Washers 100104
$161.63
74
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
77
43-0174 Key for MiTM Pressure Washers 430174
$78.33
78
43-0166 Key (2004) for MiTM Pressure Washers 430166
$35.67
79
9-0008 Bushing H X 1 3/8 Motor for AC1-PH65-20M Air Compressor by Mi-T-M 90008
$21.01
80
10-0041 Sheave 2Ak54H for MI-T-M 3004-0ME1 CW Series by MiTM 100041
$64.45
81
71-3001 DECAL SET (3004) BY MITM
$21.60
81
23-0365 Adapter for ABS Air Compressor by Mi-T-M 230365
Call for Price call for price call for price
26
24-0074 90° Elbow Fitting for ABS Air Compressor by Mi-T-M 240074
$16.62
28
29-0055 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290055
$1.99
34
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
48
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
53
23-0119 Elbow 1/4M 1/2 Barb for AC1-HE02-05M by Mi-T-M 230119
$20.10
54
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
55
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
56
23-0388 23-0124 Street Tee Tapped for AC1-HE02-05M by Mi-T-M 230388
$36.69
61
15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221
$40.69
62
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
66
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
64
Call for Price call for price call for price
