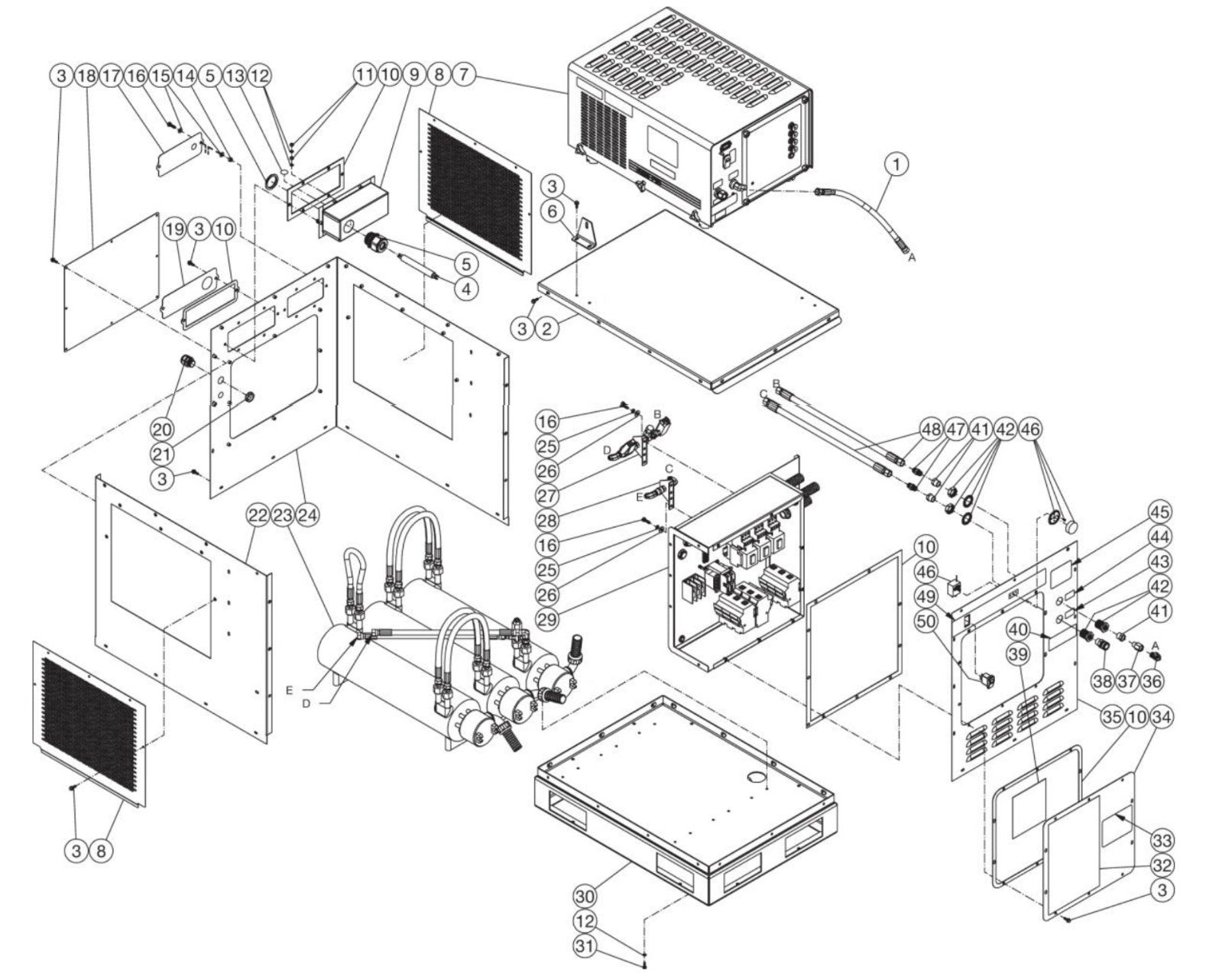

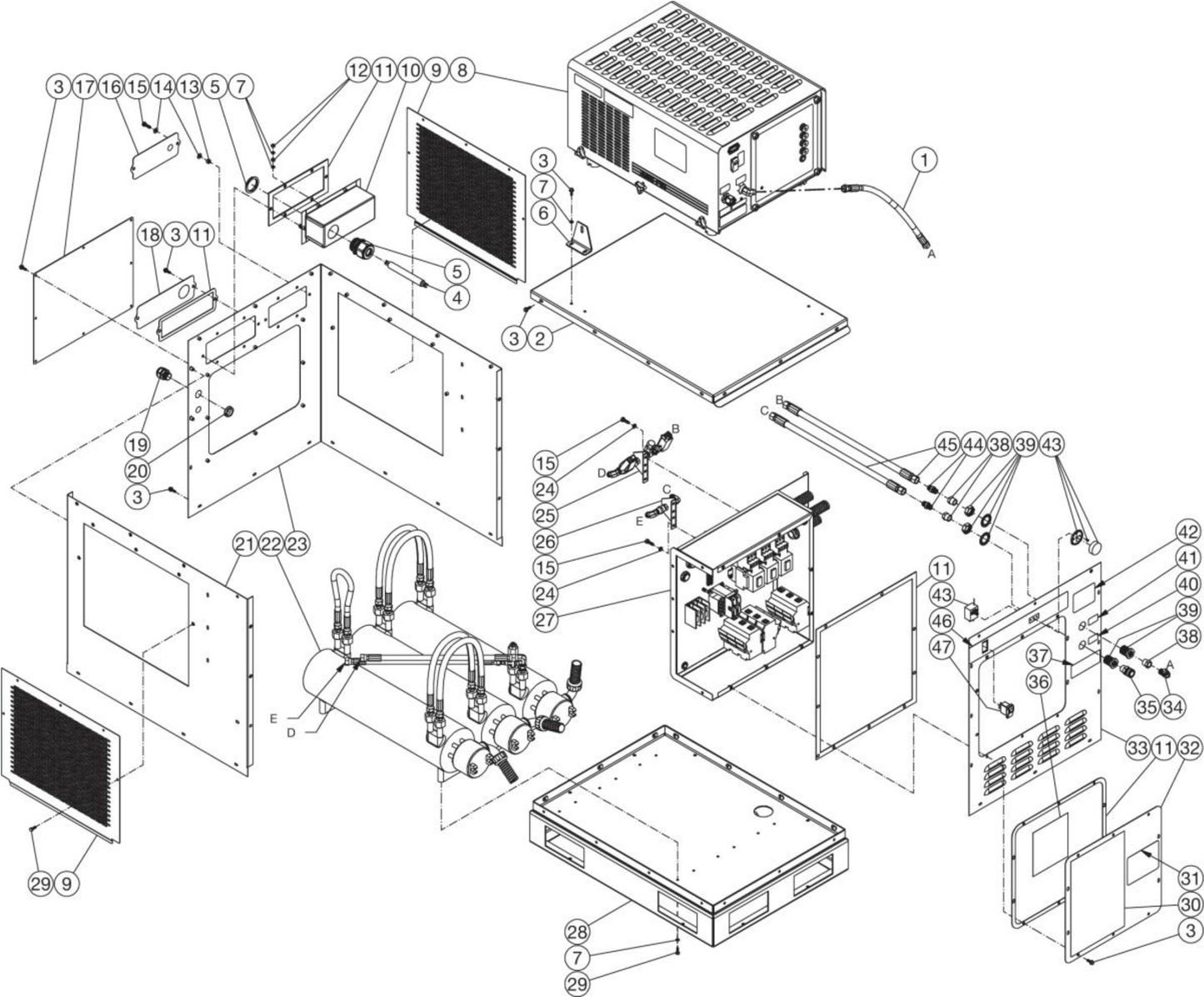

HAE-2503-0E4G, HAE-3004-0E4G, DH-2503-AE0E4G, DH-3004-AE0E4G Unit Assembly Parts By Mi-T-M

HAE-2503-0E4G, HAE-3004-0E4G, DH-2503-AE0E4G, DH-3004-AE0E4G Unit Assembly Parts By Mi-T-M

  • HAE-2503-0E4G, HAE-3004-0E4G, DH-2503-AE0E4G, DH-3004-AE0E4G Unit Assembly Parts By Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
15-0368 20” HP HOSE BY MITM
$26.00
2
20-1483A18 CAP PLATE BY MITM
$198.32
3
27-1200 BOLT BY MITM
$1.52
4
32-1202 CORD *(FOUR FEET REQUIRED) BY MITM
$41.52
5
32-1201 CORD GRIP BY MITM
$121.85
8
20-1552A18 PRESSURE SWITCH ASSEMBLY BY MITM
$57.38
9
20-1461A18 JUNCTION BOX BY MITM
$73.11
10
26-0405 GASKET SET BY MITM
$69.33
11
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
12
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
14
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
17
20-1668A18 COVER PLATE BY MITM
$8.18
18
20-1458A18 PANEL - BACK BY MITM
$29.84
19
20-1462A18 COVER PLATE BY MITM
$8.18
20
9-0046 Bushing 3/4 Elec .5-.75 Cord for AC1-PH65-08M Air Compressor by Mi-T-M 90046
$18.41
21
32-0292 Locknut Elect 3/4"-Diecast for AC1-PH65-08M Air Compressor by Mi-T-M 320292
$2.85
22
20-1454A18 SECONDARY BODY PANEL BY MITM
$126.98
26
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
30
20-1452A18 BASE FRAME BY MITM
$444.09
34
20-1459A18 E-BOX COVER PANEL BY MITM
$39.83
35
20-1455A18 FRONT PANEL BY MITM
$94.85
37
24-0366 ADAPTER BY MITM
$4.59
38
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
39
41-0184 PLASTIC ZIPLOCK BAG BY MITM
Call for Price call for price call for price
46
32-0734 ADJUSTABLE THERMOSTAT BY MITM
$50.90
48
15-0254 Hose 3/8X24.5" 6000Psi R2 Blac for AM2-PE05-08AB Air Compressor by Mi-T-M 150254
$43.41
50
32-0731 ROCKER SWITCH BY MITM
$23.49
50
32-0732 ROCKER SWITCH (HX-0298) BY MITM
$23.97
15
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
16
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
25
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
31
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
36
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
41
23-0016 Bushing 1/2M X 3/8F Hex Brass for AC1-HE02-05M by Mi-T-M 230016
$6.03
42
23-0365 Adapter for ABS Air Compressor by Mi-T-M 230365
Call for Price call for price call for price
47
Call for Price call for price call for price
View full details
