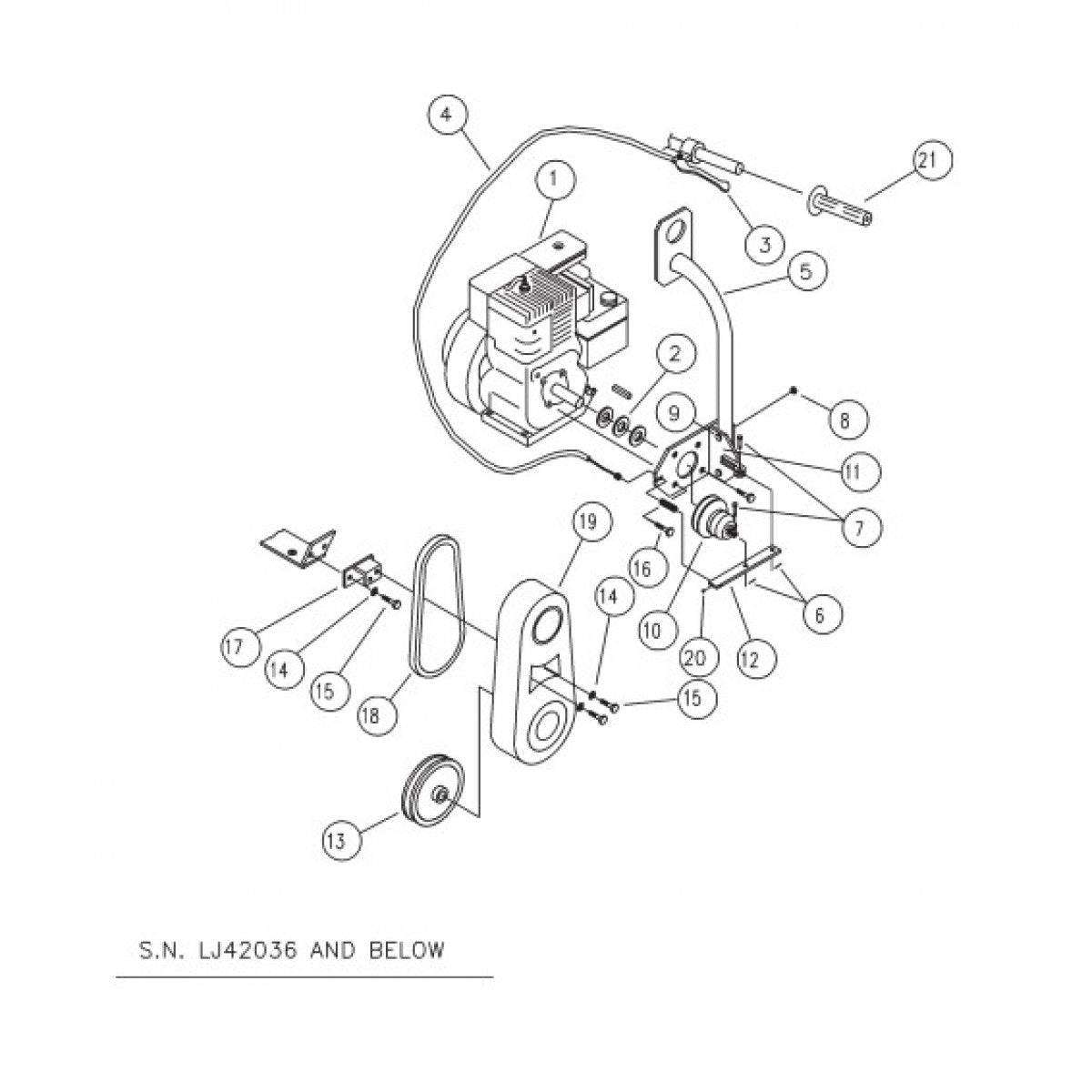

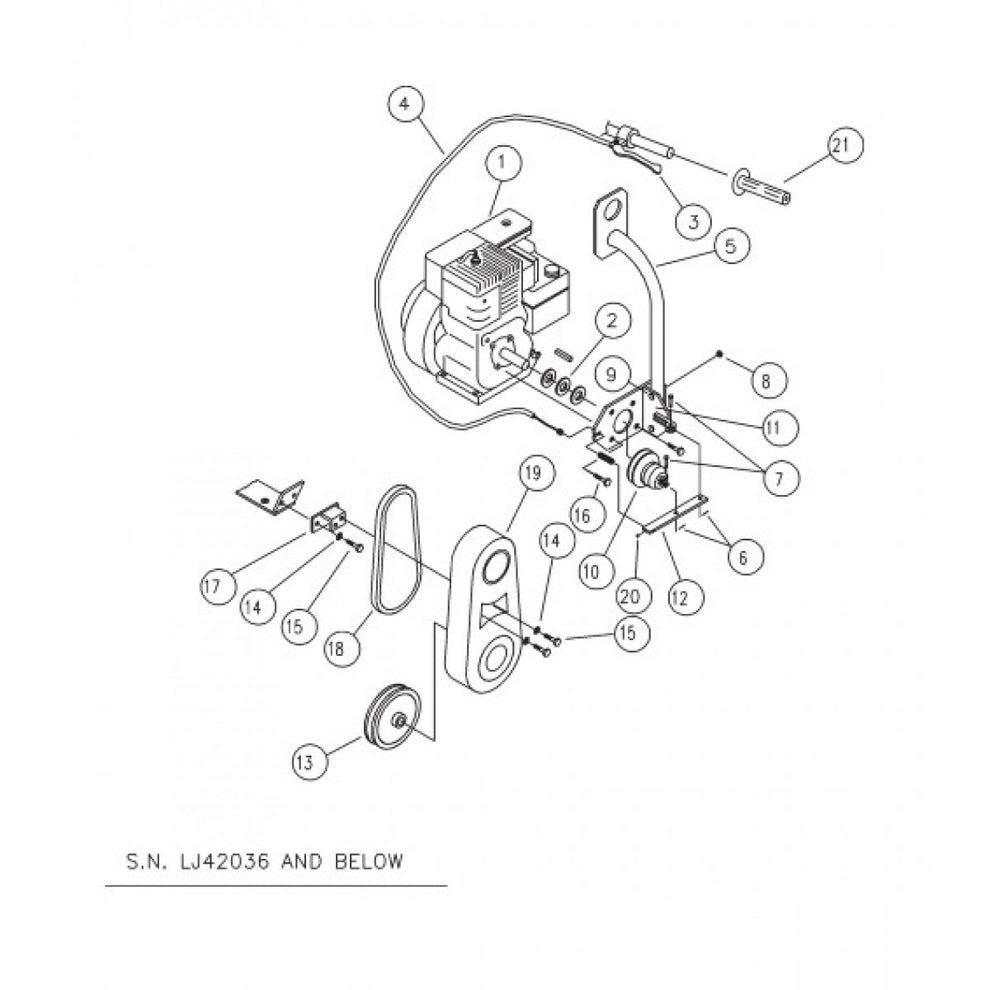

J-Series Hand Clutch Assembly with S/N LJ42036 and Below Parts by Multiquip Whiteman

J-Series Hand Clutch Assembly with S/N LJ42036 and Below Parts by Multiquip Whiteman

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
4
10086 Hand Clutch Cable Assy for J Series Walk Behind Trowels by Multiquip Whiteman
$108.91
5
C8202 Lifting Bale Assy for J Series Walk Behind Trowels by Multiquip Whiteman
Call for Price call for price call for price
7
5133 Clevis Pin 1/4"X7/8" for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
8
1063 Lock Nut 3/8-24 for J Series Walk Behind Trowels by Multiquip Whiteman
$2.99
9
0478 Hhcs 3/8-24X2.1/4" for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
10
2805 Hand Clutch 3/4" Bore for J Series Walk Behind Trowels by Multiquip Whiteman
$457.92
11
10102 Lift Bracket Plate for J Series Walk Behind Trowels by Multiquip Whiteman
$89.29
12
10096 Clutch Arm for J Series Walk Behind Trowels by Multiquip Whiteman
$23.15
13
2454 Pulley (Robin) for J Series Walk Behind Trowels by Multiquip Whiteman
$50.03
14
0181B Lock Washer 1/4 for HTH Series Walk Behind Trowels by Multiquip Whiteman
$2.19
15
4514 Hhcs 1/4-20X5/8" for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
16
1847 Fhscs 5/16-24X3/4" for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
17
2865 Belt Guard Mount (Honda, B&S) for J Series Walk Behind Trowels by Multiquip Whiteman
$33.21
17
2863 Belt Guard Mount (Robin) for J Series Walk Behind Trowels by Multiquip Whiteman
$38.21
19
2491 Belt Guard for J Series Walk Behind Trowels by Multiquip Whiteman
$54.66
21
2267 Grip for J Series Walk Behind Trowels by Multiquip Whiteman
$5.25
2
0939 Spacer for Epoxy Series Trowels by Multiquip Whiteman
$4.39
2
0939 Spacer for Epoxy Series Trowels by Multiquip Whiteman
$4.39
3
1512 Hand Clutch Hand Lever for J Series Walk Behind Trowels by Multiquip Whiteman
$97.70
6
5117 Cotter Pin 1/16"X1/2" for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
13
0740 Pulley (Honda, B&S) for J Series Walk Behind Trowels by Multiquip Whiteman
$43.86
18
1390 Belt (A26)(Honda, B&S) for J Series Walk Behind Trowels by Multiquip Whiteman
$21.03
18
2343 Belt (A25)(Robin) for J Series Walk Behind Trowels by Multiquip Whiteman
$15.89
20
10450 Shss 10-32X1/4" for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
