Hand Saw (CCW) Parts List Drawing #3

Hand Saw (CCW) Parts List Drawing #3

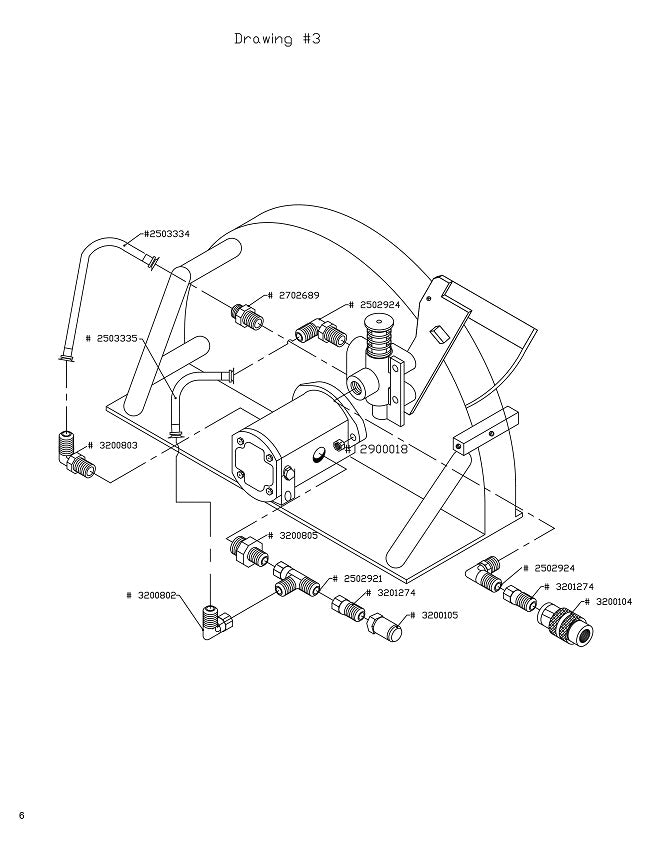

  • Hand Saw (CCW) Part List Drawing 3
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2502921 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
2502924 Elbow Fitting, 1/2" MORB x 1/2" MJIC 90 Deg. for CS-2000-100 CURB SAW Core Cut by Diamond Products
$14.93
3
2503334 Tube Assembly for CW Hydraulic Hand Saw Core Cut by Diamond Products
$109.00
4
2503335 Tube Assembly for CW Hydraulic Hand Saw Core Cut by Diamond Products
$104.67
5
2702689 Fitting for CW Hydraulic Hand Saw Core Cut by Diamond Products
$6.91
6
3200104 1/2inch QD Coupler - 1/2NPSM (Flat Face Style) for CW Hand Saw by Diamond Products
$102.89
7
3200105 Male QD for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$59.14
8
3200802 08MJ X 08FJS 90DG for HS-20 Hand Saw by Diamond Products
$15.07
9
3200803 Bushing UHMW for HS-16-10 HyDRAULic HAND SAW Core Cut by Diamond Products
$15.07
10
3200805 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$21.52
11
3201274 1/2" Swivel Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$20.45
