Hand Saw (CCW) Parts List Drawing #1

Hand Saw (CCW) Parts List Drawing #1

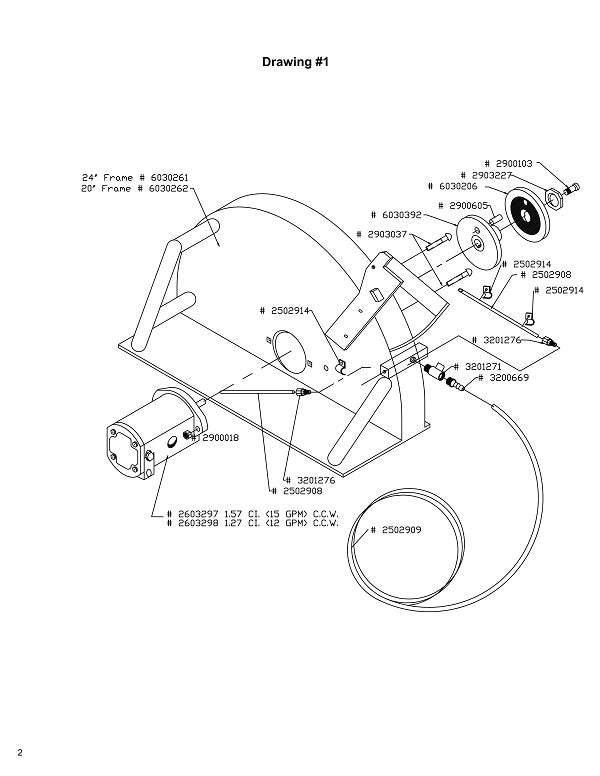

  • HAND SAW (CCW) PARTS LIST DRAWING #1
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2502908 Water Way Tubing for CW Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
2502909 Water Hose for CW Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
3
2502914 1/4" Cable/Hose Loop Clamp for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$6.48
4
Diamond Products CASAPPA MOTOR 1.57CI RH CCW ROTATION, BEARING BLOCK MOTOR 2603297
$1,542.42
6
2900018 Locknut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900103 Cap Screw, Soc. Hd., 5/16-18 x 1" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$3.99
8
2900605 3/8 x 7/8 Dowel Pin for HS-20-8 Hydraulic Hand Saw Core Cut by Diamond Products
$6.16
9
2903037 Carriage Bolt for CW Hydraulic Hand Saw Core Cut by Diamond Products
$4.99
10
Diamond Products 1"-14 JAM NUT ZINC PLATE GRADE 5 2903227
$12.91
11
3200669 Hose Barb for CW Hydraulic Hand Saw Core Cut by Diamond Products
$6.85
12
3201271 Water Valve for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$32.28
13
3201276 Compression Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$12.00
14
6030206 Outer Flange 4" for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$59.62
15
6030261 24" Hand Saw Frame for CW Hydraulic Hand Saw Core Cut by Diamond Products
$1,000.89
16
6030262 20" Hand Saw Frame for CW Hydraulic Hand Saw Core Cut by Diamond Products
$965.25
17
Diamond Products LD INNER HUB & SHAFT RH 6030392
$469.26
5
Call for Price call for price call for price
