HDB-3004-0H6G, HDB-3004-0K7G Unit Assembly For HDB-3004 Parts By Mi-T-M

HDB-3004-0H6G, HDB-3004-0K7G Unit Assembly For HDB-3004 Parts By Mi-T-M

  • HDB-3004-0H6G, HDB-3004-0K7G Unit Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
2
27-0071 Bolt for MiTM Pressure Washers 270071 27-0071 Bolt for MiTM Pressure Washers 270071
$5.93
3
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003 28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
4
30-0157 Locknut for MiTM Pressure Washers 300157 30-0157 Locknut for MiTM Pressure Washers 300157
$5.93
5
14-0110 ISOLATOR BY MITM 14-0110 ISOLATOR BY MITM
$6.75
7
30-6027 Clip Nut BY MITM 30-6027 Clip Nut BY MITM
$1.22
8
27-1200 BOLT BY MITM 27-1200 BOLT BY MITM
$1.52
9
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM 33-0020 EDGING *(FOUR FEET REQUIRED) BY MITM
$6.57
10
21-0302 FRONT PANEL (0H6G) BY MITM 21-0302 FRONT PANEL (0H6G) BY MITM
$226.47
10
21-0292 FRONT PANEL - DUAL TANK (0K7G) BY MITM 21-0292 FRONT PANEL - DUAL TANK (0K7G) BY MITM
$196.16
11
20-1182A18 BRACKET BY MITM 20-1182A18 BRACKET BY MITM
$4.46
12
28-0002 Washer for MiTM Pressure Washers 280002 28-0002 Washer for MiTM Pressure Washers 280002
$5.93
13
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015 27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
14
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155 30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
15
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004 17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
16
20-1168A18 WATER OUTLET BRACKET BY MITM 20-1168A18 WATER OUTLET BRACKET BY MITM
$19.25
17
5-0294 HDD_HDB WHEEL KIT FRAME BY MITM 5-0294 HDD_HDB WHEEL KIT FRAME BY MITM
Call for Price call for price call for price
18
15-0008 FUEL HOSE *(NINE FEET REQUIRED) (VANGUARD) BY MITM 15-0008 FUEL HOSE *(NINE FEET REQUIRED) (VANGUARD) BY MITM
$4.05
18
15-0008 FUEL HOSE *(TEN FEET REQUIRED) (HONDA) BY MITM 15-0008 FUEL HOSE *(TEN FEET REQUIRED) (HONDA) BY MITM
$4.05
19
42-0004 HOSE CLAMP BY MITM 42-0004 HOSE CLAMP BY MITM
$5.82
21
20-1164A18 FUEL TANK STRAP BY MITM 20-1164A18 FUEL TANK STRAP BY MITM
$16.34
22
20-1165A18 HOSE HANGER BY MITM 20-1165A18 HOSE HANGER BY MITM
$34.64
23
39-0234 PLUG BY MITM 39-0234 PLUG BY MITM
$0.68
24
39-0238 PLUG BY MITM 39-0238 PLUG BY MITM
$0.68
25
20-1135A18 BATTERY TRAY BY MITM 20-1135A18 BATTERY TRAY BY MITM
$49.89
26
33-0093 Battery Box-22F 13X9X10-3/4H for AC1-PE02-08M Air Compressor by Mi-T-M 330093 33-0093 Battery Box-22F 13X9X10-3/4H for AC1-PE02-08M Air Compressor by Mi-T-M 330093
$25.87
27
32-0097 Terminal 4Ga 5/16 Ring for AC1-PE03-20M Air Compressor by Mi-T-M 320097 32-0097 Terminal 4Ga 5/16 Ring for AC1-PE03-20M Air Compressor by Mi-T-M 320097
$5.99
28
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065 32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
28
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065 32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
29
32-0744 Terminal Ring BY MITM 32-0744 Terminal Ring BY MITM
$3.59
30
33-0508 TERMINAL PROTECTOR BY MITM 33-0508 TERMINAL PROTECTOR BY MITM
$6.08
31
27-3062 Screw for MiTM Pressure Washers 273062 27-3062 Screw for MiTM Pressure Washers 273062
$5.93
32
20-1166A18 GUN/ WAND HOLDER BY MITM 20-1166A18 GUN/ WAND HOLDER BY MITM
$11.48
33
15-0202 Hp Hose 3/8X22.5" 5800Psi R2 for AC1-SE05-60M Air Compressor by Mi-T-M 150202 15-0202 Hp Hose 3/8X22.5" 5800Psi R2 for AC1-SE05-60M Air Compressor by Mi-T-M 150202
$48.68
34
27-0020 Bolt for MiTM Pressure Washers 270020 27-0020 Bolt for MiTM Pressure Washers 270020
$5.93
35
28-0022 WASHER BY MITM 28-0022 WASHER BY MITM
$5.18
36
27-0122 Bolt for ABS Air Compressor by Mi-T-M 270122 27-0122 Bolt for ABS Air Compressor by Mi-T-M 270122
Call for Price call for price call for price
38
30-0159 LOCKNUT BY MITM 30-0159 LOCKNUT BY MITM
$0.68
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

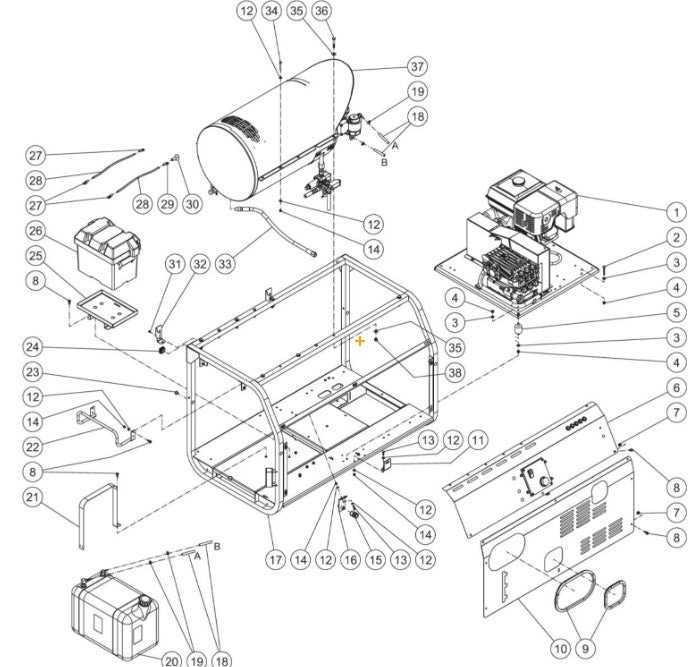

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
