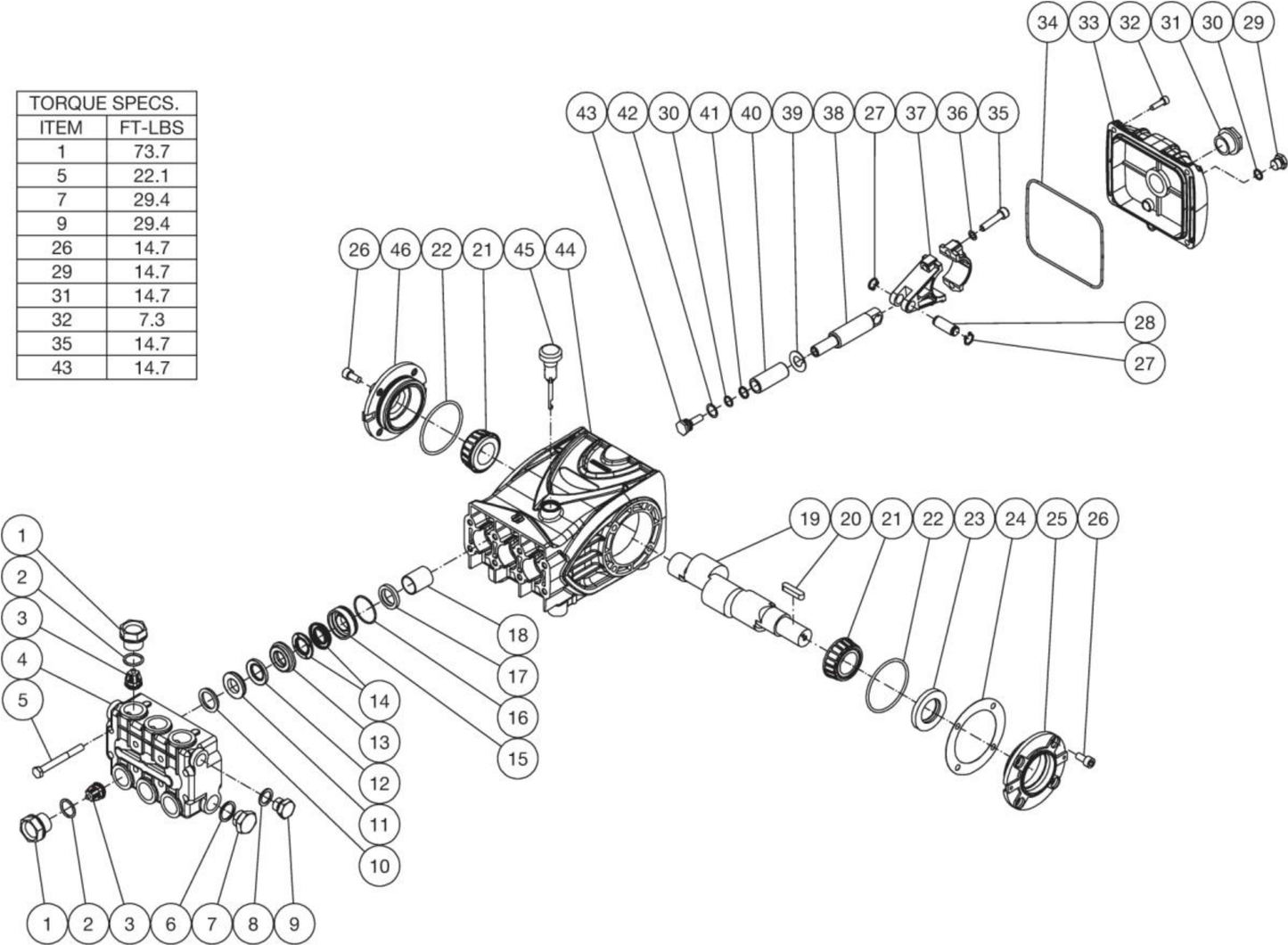

HDB-3004-0H6G (sn:15161384-99999999), HDB-3004-0K7G (sn:15161384-99999999) Pump Assembly Parts By Mi-T-M

HDB-3004-0H6G (sn:15161384-99999999), HDB-3004-0K7G (sn:15161384-99999999) Pump Assembly Parts By Mi-T-M

  • HDB-3004-0H6G (sn:15161384-99999999), HDB-3004-0K7G (sn:15161384-99999999) Pump Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
-
46-0889 Cap Valve for AC1-PE02-20M Air Compressor by Mi-T-M 460889 46-0889 Cap Valve for AC1-PE02-20M Air Compressor by Mi-T-M 460889
$51.14
-
*25-0012 O-Ring 20.69 X 2.62Mm for MI-T-M 3004-0ME1 CW Series by MiTM 250012 *25-0012 O-Ring 20.69 X 2.62Mm for MI-T-M 3004-0ME1 CW Series by MiTM 250012
$1.99
-
25-0056 O-Ring 1-3/8 X 1-9/16 for AC2-PR09-08AB Air Compressor by Mi-T-M 250056 25-0056 O-Ring 1-3/8 X 1-9/16 for AC2-PR09-08AB Air Compressor by Mi-T-M 250056
$8.99
-
27-8185 Bolt for MiTM Pressure Washers by MiTM 278185 27-8185 Bolt for MiTM Pressure Washers by MiTM 278185
$17.55
-
28-1038 Washer for MiTM Pressure Washers by MiTM 281038 28-1038 Washer for MiTM Pressure Washers by MiTM 281038
$15.93
-
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019 39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
-
28-1002 Washer for MiTM Pressure Washers by MiTM 281002 28-1002 Washer for MiTM Pressure Washers by MiTM 281002
$14.01
-
33-0018 Cap Hub 5/8" for AM2-SR09-30M Air Compressor by Mi-T-M 330018 33-0018 Cap Hub 5/8" for AM2-SR09-30M Air Compressor by Mi-T-M 330018
$11.82
-
70-0030 Head Ring Kit (Inc. 3 Each 16) for MiTM Pressure Washers 700030 70-0030 Head Ring Kit (Inc. 3 Each 16) for MiTM Pressure Washers 700030
$101.63
-
70-0030 Head Ring Kit (Inc. 3 Each 16) for MiTM Pressure Washers 700030 70-0030 Head Ring Kit (Inc. 3 Each 16) for MiTM Pressure Washers 700030
$101.63
-
26-0098 V-Packing 20 X 35 X 7.5/4.5 for AC1-PH65-08M Air Compressor by Mi-T-M 260098 26-0098 V-Packing 20 X 35 X 7.5/4.5 for AC1-PH65-08M Air Compressor by Mi-T-M 260098
$21.36
-
25-0207 Ring for AC1-PH65-08M Air Compressor by Mi-T-M 250207 25-0207 Ring for AC1-PH65-08M Air Compressor by Mi-T-M 250207
$31.68
-
46-0659 Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 460659 46-0659 Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 460659
$21.32
-
26-0197 Low Pressure Seal (See Kit 70-0147 Or 852-0122) for MiTM Pressure Washers 260197 26-0197 Low Pressure Seal (See Kit 70-0147 Or 852-0122) for MiTM Pressure Washers 260197
$103.16
-
46-0057 Adapter Female for AC1-HE15-05M Air Compressor by Mi-T-M 460057 46-0057 Adapter Female for AC1-HE15-05M Air Compressor by Mi-T-M 460057
$27.47
-
25-0015 O-Ring (See Kit 70-0434) for MiTM Pressure Washers 250015 25-0015 O-Ring (See Kit 70-0434) for MiTM Pressure Washers 250015
$4.55
-
26-0047 Seal Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260047 26-0047 Seal Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260047
$11.20
-
9-0029 Bushing for AC1-HE15-05M Air Compressor by Mi-T-M 90029 9-0029 Bushing for AC1-HE15-05M Air Compressor by Mi-T-M 90029
$40.69
-
46-0050 Crankshaft for MiTM Pressure Washers by MiTM 460050 46-0050 Crankshaft for MiTM Pressure Washers by MiTM 460050
$927.36
-
43-0048 KEY BY MITM 43-0048 KEY BY MITM
$6.35
-
48-0012 Bearing Tapered Roller for AC1-HE15-05M Air Compressor by Mi-T-M 480012 48-0012 Bearing Tapered Roller for AC1-HE15-05M Air Compressor by Mi-T-M 480012
$74.16
-
25-0013 O-Ring 2-11/16 X 2-7/8 for AC1-HE15-05M Air Compressor by Mi-T-M 250013 25-0013 O-Ring 2-11/16 X 2-7/8 for AC1-HE15-05M Air Compressor by Mi-T-M 250013
$3.99
-
26-0049 Seal/Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260049 26-0049 Seal/Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260049
$30.95
-
46-0113 Shim for AC1-HE15-05M Air Compressor by Mi-T-M 460113 46-0113 Shim for AC1-HE15-05M Air Compressor by Mi-T-M 460113
$15.72
-
46-0296 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460296 46-0296 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460296
$92.07
-
27-8431 Bolt for MiTM Air Compressors by MiTM 278431 27-8431 Bolt for MiTM Air Compressors by MiTM 278431
$8.93
-
46-0103 Retaining Ring for AC1-HE15-05M Air Compressor by Mi-T-M 460103 46-0103 Retaining Ring for AC1-HE15-05M Air Compressor by Mi-T-M 460103
$5.99
-
43-0032 Pin/Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 430032 43-0032 Pin/Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 430032
$27.27
-
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017 39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
-
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014 25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
-
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114 46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
-
27-8812 Screw for MiTM Pressure Washers by MiTM 278812 27-8812 Screw for MiTM Pressure Washers by MiTM 278812
$7.49
-
27-8404 Hshcs M6-1.0P X 30Mm for MI-T-M 3004-0ME1 CW Series by MiTM 278404 27-8404 Hshcs M6-1.0P X 30Mm for MI-T-M 3004-0ME1 CW Series by MiTM 278404
$7.51
-
46-1906 CRANKCASE COVER BY MITM 46-1906 CRANKCASE COVER BY MITM
Call for Price call for price call for price
-
46-0295 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460295 46-0295 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460295
$130.91
-
25-0339 O-Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250339 25-0339 O-Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250339
$12.01
-
27-8435 Bolt for MiTM Pressure Washers by MiTM 278435 27-8435 Bolt for MiTM Pressure Washers by MiTM 278435
$8.88
-
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154 29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
-
46-0051 Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 460051 46-0051 Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 460051
$137.16
-
46-0056 Piston Guide for AC1-HE15-05M Air Compressor by Mi-T-M 460056 46-0056 Piston Guide for AC1-HE15-05M Air Compressor by Mi-T-M 460056
$123.88
-
46-0146 Slinger Washer for AC1-HE15-05M Air Compressor by Mi-T-M 460146 46-0146 Slinger Washer for AC1-HE15-05M Air Compressor by Mi-T-M 460146
$5.99
-
46-0052 Plunger Ceram 14X20X50Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460052 46-0052 Plunger Ceram 14X20X50Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460052
$75.11
-
25-0465 Teflon Back-Up Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250465 25-0465 Teflon Back-Up Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250465
$5.99
-
28-0400 Washer/Gasket for MiTM Pressure Washers 280400 28-0400 Washer/Gasket for MiTM Pressure Washers 280400
$18.30
-
46-0069 Nut/Piston for AC1-HE15-05M Air Compressor by Mi-T-M 460069 46-0069 Nut/Piston for AC1-HE15-05M Air Compressor by Mi-T-M 460069
$26.59
-
46-1905 CRANKCASE BY MITM 46-1905 CRANKCASE BY MITM
Call for Price call for price call for price
-
46-0144 Dipstick 3-1/8Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460144 46-0144 Dipstick 3-1/8Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460144
$27.70
-
46-0336 Crankcase Cover Closed for AC1-HE15-05M Air Compressor by Mi-T-M 460336 46-0336 Crankcase Cover Closed for AC1-HE15-05M Air Compressor by Mi-T-M 460336
$89.33
-
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009 70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
-
70-0147 Kit Packing 20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 700147 70-0147 Kit Packing 20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 700147
$152.37
-
70-0148 Kit-Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 700148 70-0148 Kit-Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 700148
$161.38
-
852-0122 Kit Packing Assy 20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 8520122 852-0122 Kit Packing Assy 20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 8520122
$192.65
