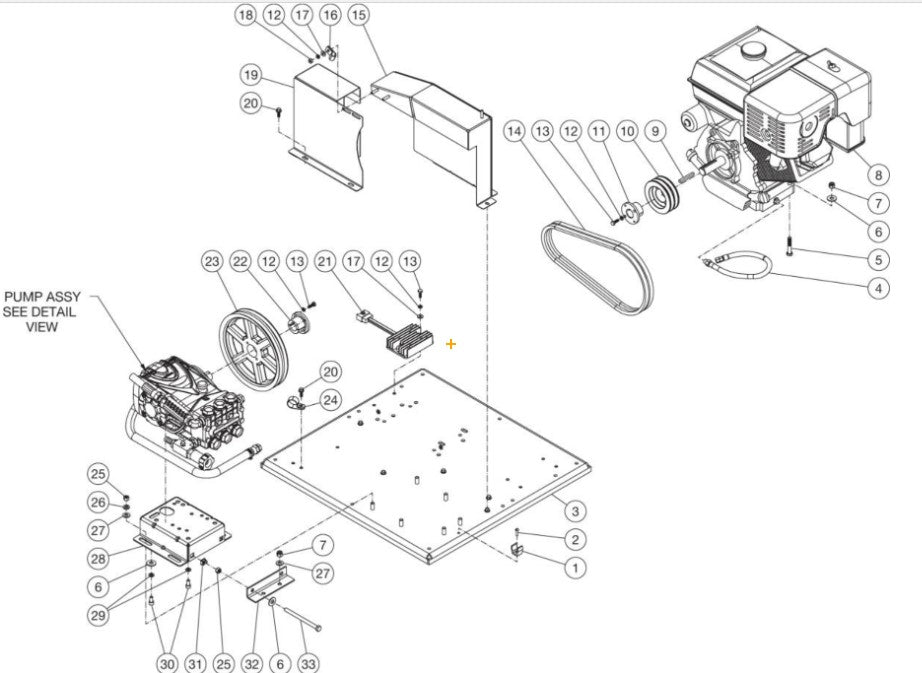

HDB-3004 Isolation Plate Assembly Parts By Mi-T-M

HDB-3004 Isolation Plate Assembly Parts By Mi-T-M

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
62-0209 HOSE CLIP BY MITM
$7.70
2
27-2811 Screw (Cw-2004-1Me1) for MiTM Pressure Washers 272811
$7.65
3
27-0120 Bolt for MiTM Pressure Washers 270120
$10.49
4
1-0191 ENGINE (HONDA) BY MITM
$2,167.43
5
1-0217 ENGINE (0K7G) BY MITM
$5,263.11
6
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
7
10-0067 Sheave 2Ak41H (3.70 P.D.) for AM1-PH65-08M Air Compressor by Mi-T-M 100067
$55.22
8
10-0025 Sheave 2Ak44H for Mi-T-M CA-2403-0MRB by MiTM 100025
$55.76
9
9-0005 Bushing for MiTM Pressure Washers 90005
$60.12
10
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
11
11-0004 Cog Belt Ax37 Tri-Power V for AM2-PE05-08AB Air Compressor by Mi-T-M 110004
$39.65
12
6-0092A18 PUMP BELTGUARD BY MITM
$43.20
13
6-0205A18 PUMP BELTGUARD (3-0202 PUMP ONLY) BY MITM
$72.84
14
43-0003 Clip Wire Fastener 3/8Id for AC1-PE15-08M1 Air Compressor by Mi-T-M 430003
$2.85
15
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
16
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
17
6-0147A18 ENGINE BELTGUARD BY MITM
$57.72
18
271200 Bolt for MiTM Pressure Washers
$4.43
19
10-0038 Sheave 2Ak94H for AC1-PH65-08M Air Compressor by Mi-T-M 100038
$86.29
20
33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291
$4.85
21
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
22
28-0004 Washer for MiTM Pressure Washers by MiTM 280004
$4.49
23
5-0153A18 Pump Hat BY MITM
$34.43
24
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
25
30-6025 Clip Nut for MiTM Pressure Washers 306025
$21.38
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
