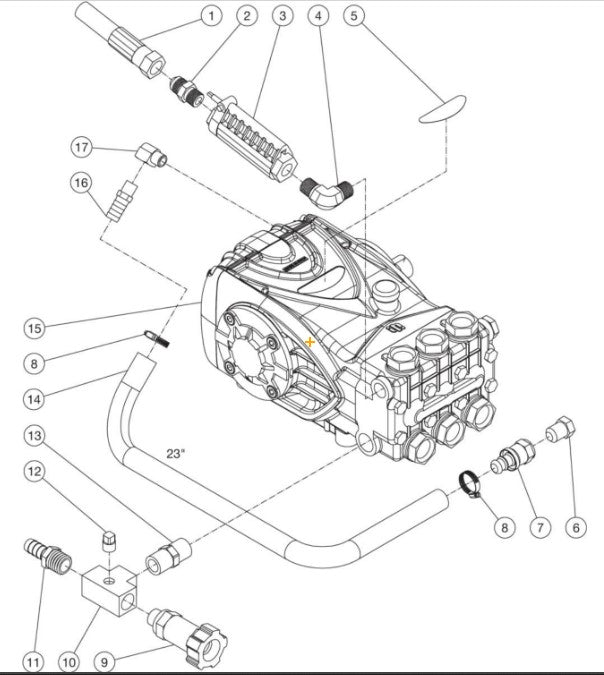

HDB-3004-0H6G (sn:15161384-99999999), HDB-3004-0K7G (sn:15161384-99999999) HDB Pump Plumbing Assembly Parts By Mi-T-M

HDB-3004-0H6G (sn:15161384-99999999), HDB-3004-0K7G (sn:15161384-99999999) HDB Pump Plumbing Assembly Parts By Mi-T-M

  • HDB-3004 Pump Plumbing Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221 15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221
$40.69
2
*24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002 *24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002
$6.04
3
22-0428 FLOW SWITCH BY MITM 22-0428 FLOW SWITCH BY MITM
$132.30
4
24-0131 Elbow 3/8Mnpt X 3/8Mnpt-Steel for MiTM Pressure Washers by MiTM 240131 24-0131 Elbow 3/8Mnpt X 3/8Mnpt-Steel for MiTM Pressure Washers by MiTM 240131
$24.15
6
23-0411 Plug-1/2Npt Flared Seal for AC1-HE02-05M by Mi-T-M 230411 23-0411 Plug-1/2Npt Flared Seal for AC1-HE02-05M by Mi-T-M 230411
$12.87
7
23-0360 HOSE BARB BY MITM 23-0360 HOSE BARB BY MITM
$7.02
8
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011 42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
9
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206 19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
10
23-0496 TEE BY MITM 23-0496 TEE BY MITM
$19.92
11
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045 23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
13
*23-0012 Nipple 1/2M X 1/2M Hex Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230012 *23-0012 Nipple 1/2M X 1/2M Hex Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230012
$11.07
14
15-0305 HOSE BY MITM 15-0305 HOSE BY MITM
$3.86
15
3-0203 PUMP 4.0 GPM AT 3500 PSI BY MITM 3-0203 PUMP 4.0 GPM AT 3500 PSI BY MITM
$1,388.70
16
23-0120 Barb 1/4M X 1/2 Hose Brass for AC1-PE02-08M Air Compressor by Mi-T-M 230120 23-0120 Barb 1/4M X 1/2 Hose Brass for AC1-PE02-08M Air Compressor by Mi-T-M 230120
$5.84
17
23-0014 Elbow 1/4"Fptx1/4Mpt 90 Brass for AC1-HR45-05M Air Compressor by Mi-T-M 230014 23-0014 Elbow 1/4"Fptx1/4Mpt 90 Brass for AC1-HR45-05M Air Compressor by Mi-T-M 230014
$9.18
5
34-4183 DECAL - PUMP (SEE 71-1044) BY MITM 34-4183 DECAL - PUMP (SEE 71-1044) BY MITM
Call for Price call for price call for price
12
*24-0009 Plug 1/4"Npt Sq Head Zinc for Mi-T-M CA-2403-0MHB by MiTM 240009 *24-0009 Plug 1/4"Npt Sq Head Zinc for Mi-T-M CA-2403-0MHB by MiTM 240009
$3.95
15
3-0202 BELTGUARD-PUMP (3-0202 PUMP ONLY) BY MITM 3-0202 BELTGUARD-PUMP (3-0202 PUMP ONLY) BY MITM
$80.00
5
Call for Price call for price call for price
