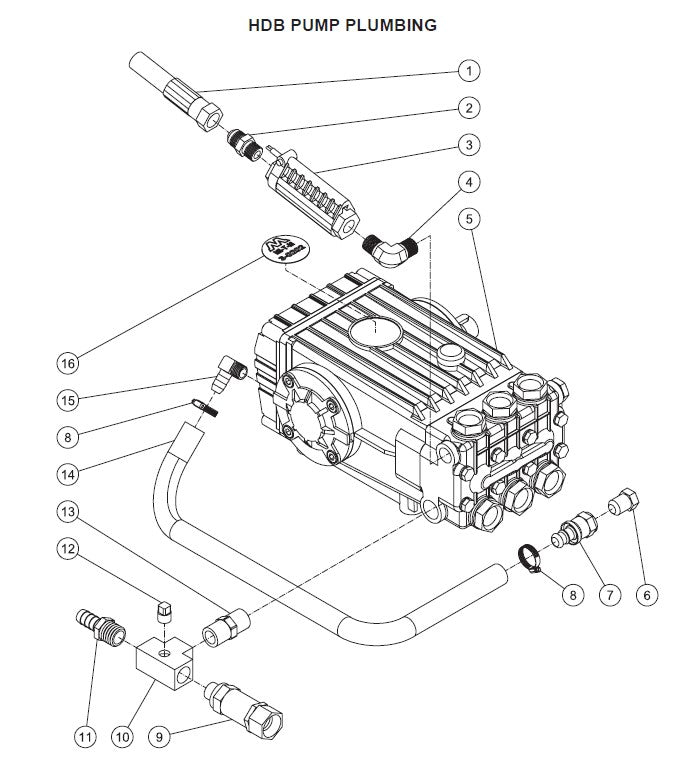

HDB-3005 Pump Plumbing Assembly Parts By Mi-T-M

HDB-3005 Pump Plumbing Assembly Parts By Mi-T-M

  • HDB-3005 Pump Plumbing Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
22-0428 FLOW SWITCH BY MITM
$132.30
2
24-0131 Elbow 3/8Mnpt X 3/8Mnpt-Steel for MiTM Pressure Washers by MiTM 240131
$24.15
3
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
4
3-0203 Pump 4.0 Gpm At 3500 Psi for MiTM Pressure Washers 30203
$1,944.18
5
23-0496 TEE BY MITM
$19.92
6
23-0238 Plug-Square Head 1/4 Brass for AC1-PR07-20M Air Compressor by Mi-T-M 230238
$10.73
7
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
8
150305 Hose *(Two Feet Required) for MiTM Pressure Washers
$11.55
9
34-2177 DECAL - 3-0202 PUMP BY MITM
Call for Price call for price call for price
10
34-2290 Decal - Pump for MiTM Pressure Washers 342290
$30.60
