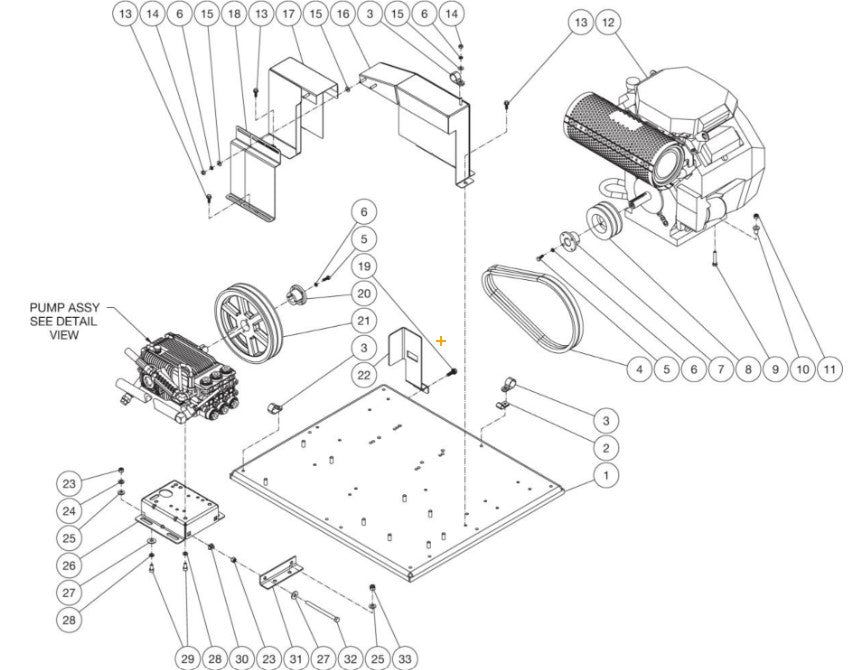

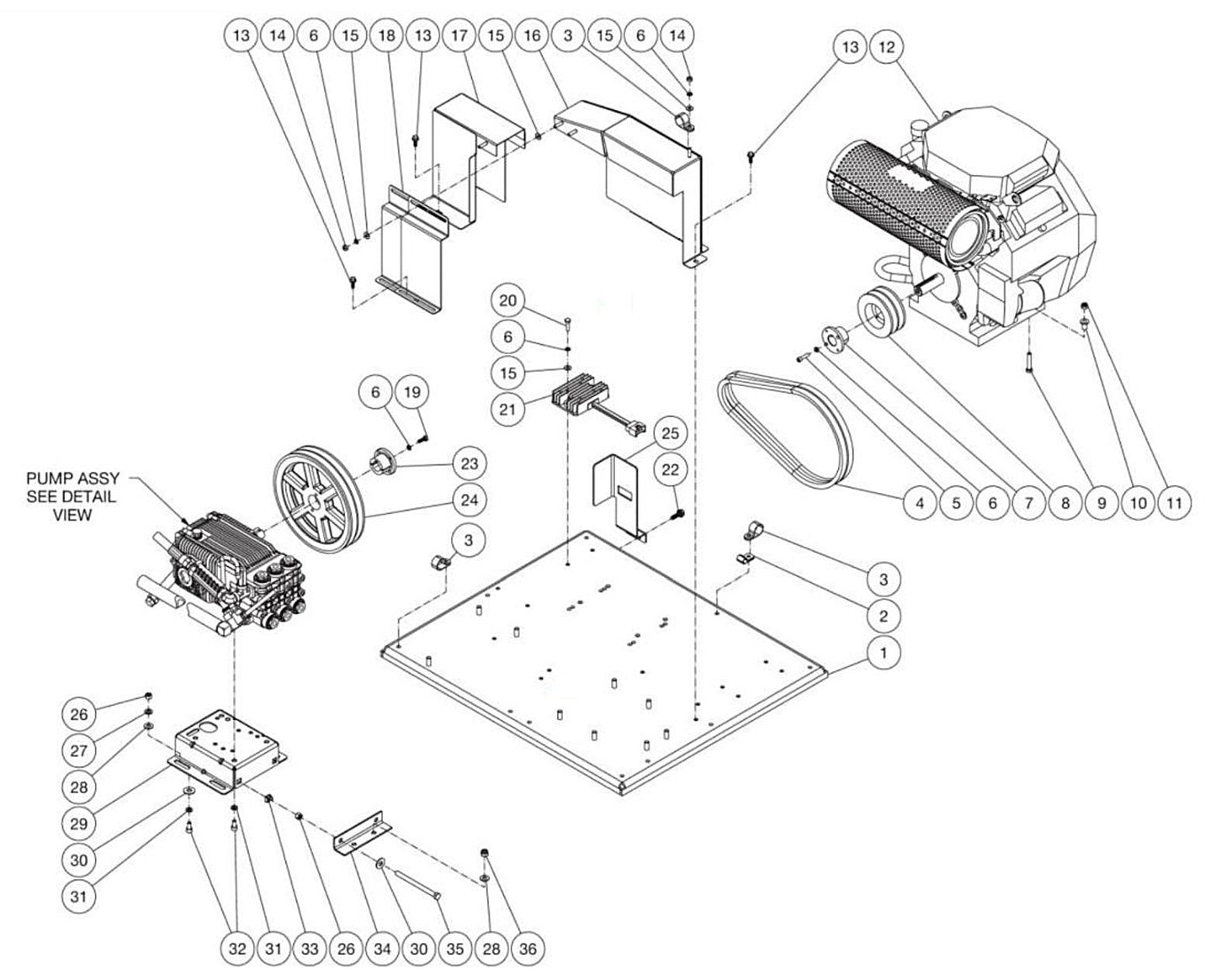

HDC-3005-0K6G/0V6G, HDC-3505-0K6G/0V6G/1H6G, HDC-4004-0H6A/0K6A/0V6A/1H6A Isolation Plate Assembly Parts by Mi-T-M

HDC-3005-0K6G/0V6G, HDC-3505-0K6G/0V6G/1H6G, HDC-4004-0H6A/0K6A/0V6A/1H6A Isolation Plate Assembly Parts by Mi-T-M

  • HDC-3005-0K6G/0V6G, HDC-3505-0K6G/0V6G/1H6G, HDC-4004-0H6A/0K6A/0V6A/1H6A Isolation Plate Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0170A18 ISOLATION PLATE BY MITM
$466.70
2
43-0003 Clip Wire Fastener 3/8Id for AC1-PE15-08M1 Air Compressor by Mi-T-M 430003
$2.85
3
33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291
$4.85
4
11-0052 Cog Belt Bx38 for AC1-PE03-08M Air Compressor by Mi-T-M 110052
$31.19
5
11-0050 BELT (4004) BY MITM
$18.23
6
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
7
9-0007 Bushing H X 1-7/16 Motor for AC1-PE02-08M Air Compressor by Mi-T-M 90007
$18.25
8
100125 Sheave for MiTM Pressure Washers
$73.47
9
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
10
27-0120 Bolt for MiTM Pressure Washers 270120
$10.49
11
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
12
28-0004 Washer for MiTM Pressure Washers by MiTM 280004
$4.49
13
850-0393 ENGINE (HDC-3505-1H6G; HDC-4004-1H6A) BY MITM
$4,342.28
14
850-0333 ENGINE (HDC-3505-0K6G/HDC-4004-0K6A) BY MITM
$3,719.19
15
850-0294 ENGINE (HDC-3005-0V6G) BY MITM
$3,746.19
16
850-0451 ENGINE (HDC-3505-0M6G) BY MITM
Call for Price call for price call for price
17
271200 Bolt for MiTM Pressure Washers
$4.43
18
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
19
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
20
6-0092A18 PUMP BELTGUARD BY MITM
$43.20
21
6-0205A18 PUMP BELTGUARD (3-0202 PUMP ONLY) BY MITM
$72.84
22
20-0690A18 BELTGUARD BY MITM
$59.40
23
20-0589A18 BELTGUARD COVER BY MITM
$12.15
24
27-1201 BOLT BY MITM
$0.35
25
10-0037 Sheave 2Bk100H for AC1-PE03-08M Air Compressor by Mi-T-M 100037
$99.22
26
10-0012 Sheave 2Bk90H for AC1-PE02-20M1 Air Compressor by Mi-T-M 100012
$85.49
27
20-1684A18 KEY SWITCH BRACKET (HONDA ENGINE) BY MITM
$3.65
28
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
29
5-0153A18 Pump Hat for MiTM Pressure Washers 50153A18
Call for Price call for price call for price
30
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
31
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
32
30-6025 Clip Nut for MiTM Pressure Washers 306025
$21.38
33
20-0584A18 Tension Bracket for MiTM Pressure Washers 200584A18
$57.12
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
