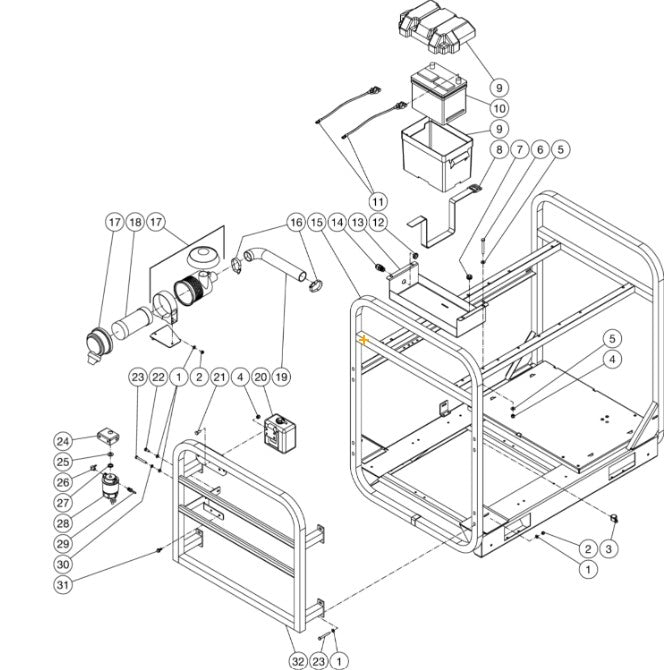

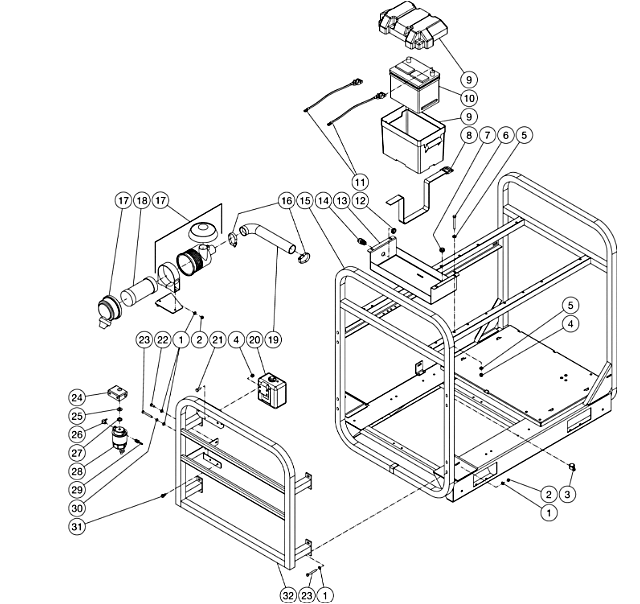

HDC-3505-0B7G Frame Assembly Parts by Mi-T-M

HDC-3505-0B7G Frame Assembly Parts by Mi-T-M

  • HDC-3505-0B7G Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291
$4.85
2
28-0004 Washer for MiTM Pressure Washers by MiTM 280004
$4.49
3
33-0089 Velcro Strap 38" for AC1-PE02-08M Air Compressor by Mi-T-M 330089
$44.81
4
33-0093 Battery Box-22F 13X9X10-3/4H for AC1-PE02-08M Air Compressor by Mi-T-M 330093
$25.87
5
20-0872A18 BATTERY BOX (3006/3505/4005) BY MITM
$55.56
6
5-0313A18 FRAME BY MITM
$1,008.80
7
42-0027 Hose Clamp for MiTM Pressure Washers 420027
$25.50
8
45-0122 AIR FILTER BY MITM
$45.90
9
15-0262 Hose-1.75" Id 90 Deg Flex for AC1-PE03-20M Air Compressor by Mi-T-M 150262
Call for Price call for price call for price
10
45-0121 RADIATOR OVER FLOW W/ ENGINE BY MITM
$71.69
11
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
12
27-0073 BOLT BY MITM
$0.68
13
20-0873A18 FUEL FILTER BRACKET BY MITM
$45.23
14
28-0006 Washer for MiTM Pressure Washers by MiTM 280006
$4.49
15
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
16
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
17
19-0070 Filter Fuel/Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190070
$134.38
18
27-1202 BOLT BY MITM
$0.35
19
5-0276A18 FRAME EXTENSION (3006/3505/4005) BY MITM
$398.93
20
5-0311A18 KUBOTA 23HP FRAME EXTENSION (3008) BY MITM
$492.62
