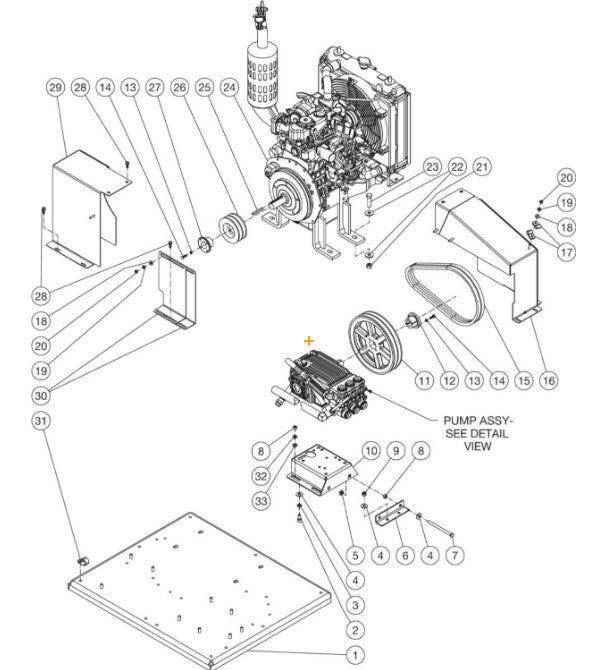

HDC-3505-0B7G Isolation Plate Assembly Parts by Mi-T-M

HDC-3505-0B7G Isolation Plate Assembly Parts by Mi-T-M

  • HDC-3505-0B7G Isolation Plate Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0257A18 ISOLATION PLATE BY MITM
$537.30
2
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
3
30-6025 Clip Nut for MiTM Pressure Washers 306025
$21.38
4
20-0584A18 Tension Bracket for MiTM Pressure Washers 200584A18
$57.12
5
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
6
5-0262A18 PUMP HAT BY MITM
$49.95
7
10-0037 Sheave 2Bk100H for AC1-PE03-08M Air Compressor by Mi-T-M 100037
$99.22
8
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
9
6-0159A18 PUMP BELTGUARD BY MITM
$95.39
10
6-0206A18 PUMP BELTGUARD BY MITM
$80.00
11
43-0003 Clip Wire Fastener 3/8Id for AC1-PE15-08M1 Air Compressor by Mi-T-M 430003
$2.85
12
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
13
30-0163 Locknut for MiTM Pressure Washers 300163
$7.65
14
28-0024 Washer for MiTM Pressure Washers 280024
$7.65
15
27-0219 Bolt for MiTM Pressure Washers 270219
$7.65
16
850-0358 ENGINE BY MITM
$13,641.75
17
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
18
100125 Sheave for MiTM Pressure Washers
$73.47
19
271200 Bolt for MiTM Pressure Washers
$4.43
20
6-0201A18 ALTERNATOR BELTGUARD BY MITM
$95.25
21
6-0161A18 BELTGUARD COVER BY MITM
$34.02
22
33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291
$4.85
23
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
