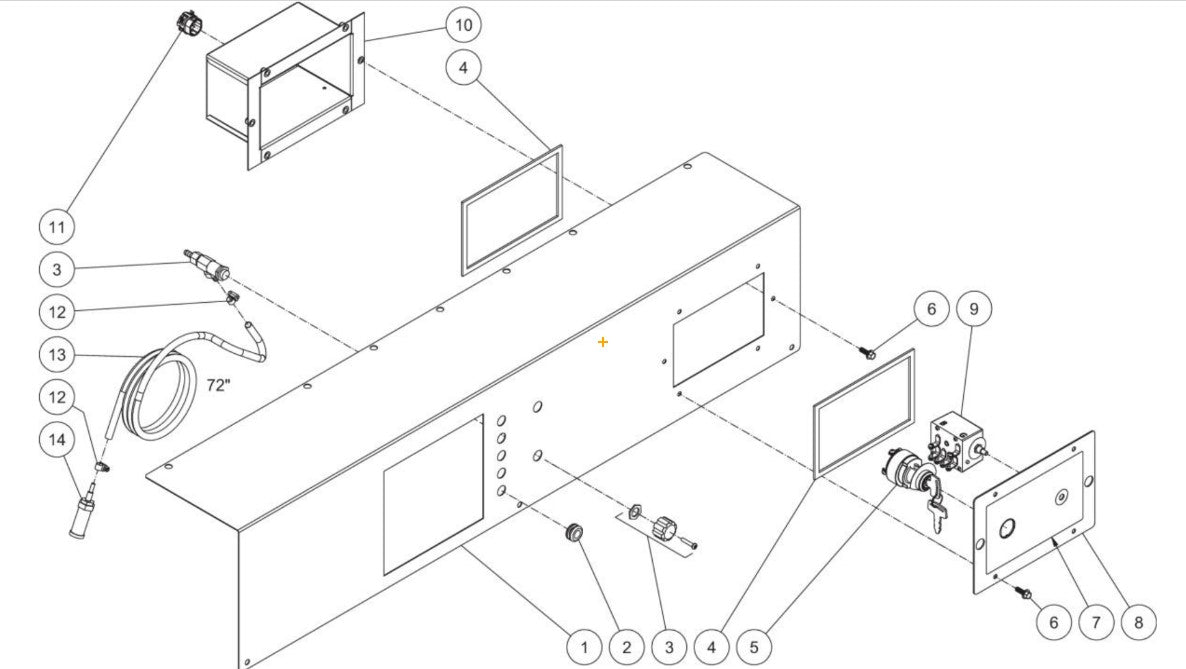

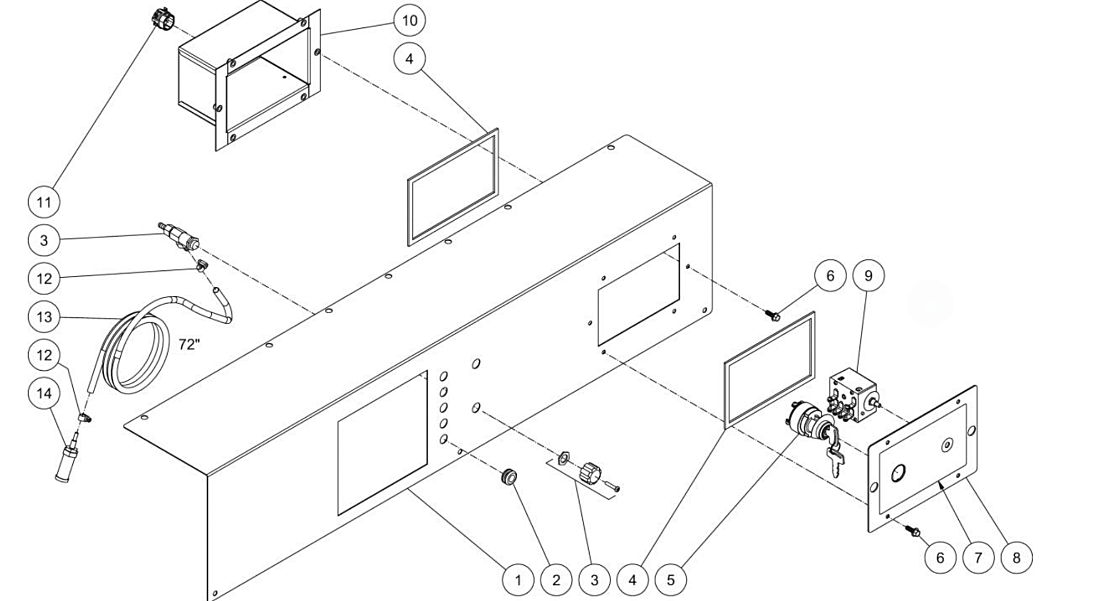

HDC-3505-0B7G (sn:15130031-99999999) Control Panel Assembly Parts by Mi-T-M

HDC-3505-0B7G (sn:15130031-99999999) Control Panel Assembly Parts by Mi-T-M

  • HDC-3505-0B7G (sn:15130031-99999999) Control Panel Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
20-1096A18 CONTROL PANEL BY MITM 20-1096A18 CONTROL PANEL BY MITM
$47.25
2
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001 33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
3
22-0226 Valve/Detergent for AC1-HE02-05M by Mi-T-M 220226 22-0226 Valve/Detergent for AC1-HE02-05M by Mi-T-M 220226
$63.26
4
26-0248 GASKET BY MITM 26-0248 GASKET BY MITM
$4.46
5
32-1342 SWITCH BY MITM 32-1342 SWITCH BY MITM
$172.67
6
27-1200 BOLT BY MITM 27-1200 BOLT BY MITM
$1.52
7
34-4120 DECAL - CONTROL PANEL BY MITM 34-4120 DECAL - CONTROL PANEL BY MITM
Call for Price call for price call for price
8
21-0227 ELECTRIC BOX PANEL BY MITM 21-0227 ELECTRIC BOX PANEL BY MITM
$33.75
9
32-1343 SWITCH BY MITM 32-1343 SWITCH BY MITM
$271.16
10
20-1412A18 ELECTRIC BOX BY MITM 20-1412A18 ELECTRIC BOX BY MITM
$71.15
11
32-1290 STRAIN RELIEF BY MITM 32-1290 STRAIN RELIEF BY MITM
$4.40
12
42-0004 HOSE CLAMP BY MITM 42-0004 HOSE CLAMP BY MITM
$2.03
13
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021 15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
14
19-0056 Strainer-Detergent W/Ck Valve for AC1-PE03-20M Air Compressor by Mi-T-M 190056 19-0056 Strainer-Detergent W/Ck Valve for AC1-PE03-20M Air Compressor by Mi-T-M 190056
$19.80
