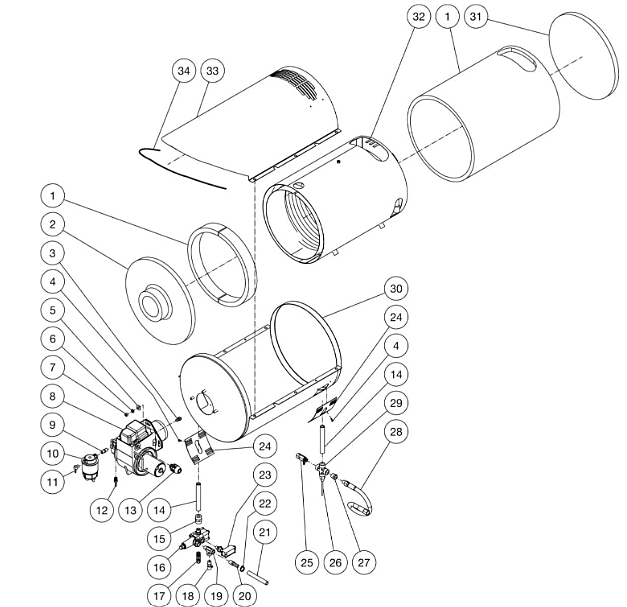

HDC Series (sn:15028657-15146632), (sn:15157880-99999999), (sn:15146633-15157879) Heat Exchange Assembly Parts by Mi-T-M.

HDC Series (sn:15028657-15146632), (sn:15157880-99999999), (sn:15146633-15157879) Heat Exchange Assembly Parts by Mi-T-M.

  • HDC Series (sn:15028657-15146632), (sn:15157880-99999999), (sn:15146633-15157879) Heat Exchange Assembly Parts by Mi-T-M.
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
850-0279 Insulation Blanket Hh Coil for AC1-HE02-05M by Mi-T-M 8500279 850-0279 Insulation Blanket Hh Coil for AC1-HE02-05M by Mi-T-M 8500279
$104.99
2
33-0345 Insulation Drum Head for AC1-HE02-05M by Mi-T-M 330345 33-0345 Insulation Drum Head for AC1-HE02-05M by Mi-T-M 330345
$73.72
3
18-0090 Nozzle Solid Oil 2.25 80 Deg for AC1-HE02-05M by Mi-T-M 180090 18-0090 Nozzle Solid Oil 2.25 80 Deg for AC1-HE02-05M by Mi-T-M 180090
$20.32
4
27-3062 Screw for MiTM Pressure Washers 273062 27-3062 Screw for MiTM Pressure Washers 273062
$5.93
5
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
6
29-0008 LOCKWASHER BY MITM 29-0008 LOCKWASHER BY MITM
$2.55
7
30-0006 Hex Nut BY MITM 30-0006 Hex Nut BY MITM
$0.68
8
4-0021 Burner BY MITM 4-0021 Burner BY MITM
$1,288.58
9
24-0145 Hex Nipple 1/4 Mnpt X 1/4 Mnpt for AC1-PE03-20M Air Compressor by Mi-T-M 240145 24-0145 Hex Nipple 1/4 Mnpt X 1/4 Mnpt for AC1-PE03-20M Air Compressor by Mi-T-M 240145
Call for Price call for price call for price
10
19-0070 Filter Fuel/Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190070 19-0070 Filter Fuel/Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190070
$134.38
11
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054 23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
12
23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051 23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051
$6.83
13
32-0255 CONDUIT FITTING BY MITM 32-0255 CONDUIT FITTING BY MITM
$2.97
14
24-0254 Pipe Nipple-1/2Npt X 6" Long for AC1-PE03-20M Air Compressor by Mi-T-M 240254 24-0254 Pipe Nipple-1/2Npt X 6" Long for AC1-PE03-20M Air Compressor by Mi-T-M 240254
$24.17
15
24-0243 Adapter-1/2Fnptx 3/8Fnpt Steel for AC1-HE02-05M by Mi-T-M 240243 24-0243 Adapter-1/2Fnptx 3/8Fnpt Steel for AC1-HE02-05M by Mi-T-M 240243
$19.94
16
8-0013 Unloader K7.1 Regulating for AC1-HR45-05M Air Compressor by Mi-T-M 80013 8-0013 Unloader K7.1 Regulating for AC1-HR45-05M Air Compressor by Mi-T-M 80013
$238.05
17
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092 24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
18
22-0432 HEAT DUMP VALVE BY MITM 22-0432 HEAT DUMP VALVE BY MITM
$10.80
19
23-0058 Tee 3/8" Street Steel for AC1-HE15-05M Air Compressor by Mi-T-M 230058 23-0058 Tee 3/8" Street Steel for AC1-HE15-05M Air Compressor by Mi-T-M 230058
$26.21
20
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105 23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
20
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050 23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
21
15-0007 HOSE *(TWO FEET REQUIRED) BY MITM 15-0007 HOSE *(TWO FEET REQUIRED) BY MITM
$3.51
22
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011 42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
23
22-0243 Pressure Switch 1/4Bsp 25 Bar for AC1-HE02-05M by Mi-T-M 220243 22-0243 Pressure Switch 1/4Bsp 25 Bar for AC1-HE02-05M by Mi-T-M 220243
$75.90
24
20-0537A18 PATCH PLATE BY MITM 20-0537A18 PATCH PLATE BY MITM
$7.43
25
22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309 22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309
$97.90
26
32-0667 Switch/Hi Limit 1/2Npt for AC1-PE03-20M Air Compressor by Mi-T-M 320667 32-0667 Switch/Hi Limit 1/2Npt for AC1-PE03-20M Air Compressor by Mi-T-M 320667
$53.48
27
23-0016 Bushing 1/2M X 3/8F Hex Brass for AC1-HE02-05M by Mi-T-M 230016 23-0016 Bushing 1/2M X 3/8F Hex Brass for AC1-HE02-05M by Mi-T-M 230016
$6.03
28
15-0202 Hp Hose 3/8X22.5" 5800Psi R2 for AC1-SE05-60M Air Compressor by Mi-T-M 150202 15-0202 Hp Hose 3/8X22.5" 5800Psi R2 for AC1-SE05-60M Air Compressor by Mi-T-M 150202
$48.68
29
24-0241 Cross-1/2Fnpt Steel Forged for AC1-HE02-05M by Mi-T-M 240241 24-0241 Cross-1/2Fnpt Steel Forged for AC1-HE02-05M by Mi-T-M 240241
$68.11
30
20-0527A18 Bottom Wrap Assembly BY MITM 20-0527A18 Bottom Wrap Assembly BY MITM
$388.67
31
33-0346 Insulation Disc for AC1-HE02-05M by Mi-T-M 330346 33-0346 Insulation Disc for AC1-HE02-05M by Mi-T-M 330346
$45.32
32
66-0014 Coil Assembly for AC1-HE02-05M by Mi-T-M 660014 66-0014 Coil Assembly for AC1-HE02-05M by Mi-T-M 660014
$1,577.83
33
21-0129 TOP WRAP BY MITM 21-0129 TOP WRAP BY MITM
$187.73
34
33-0020 Edging *(Three Feet Required) for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 330020 33-0020 Edging *(Three Feet Required) for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 330020
$5.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
