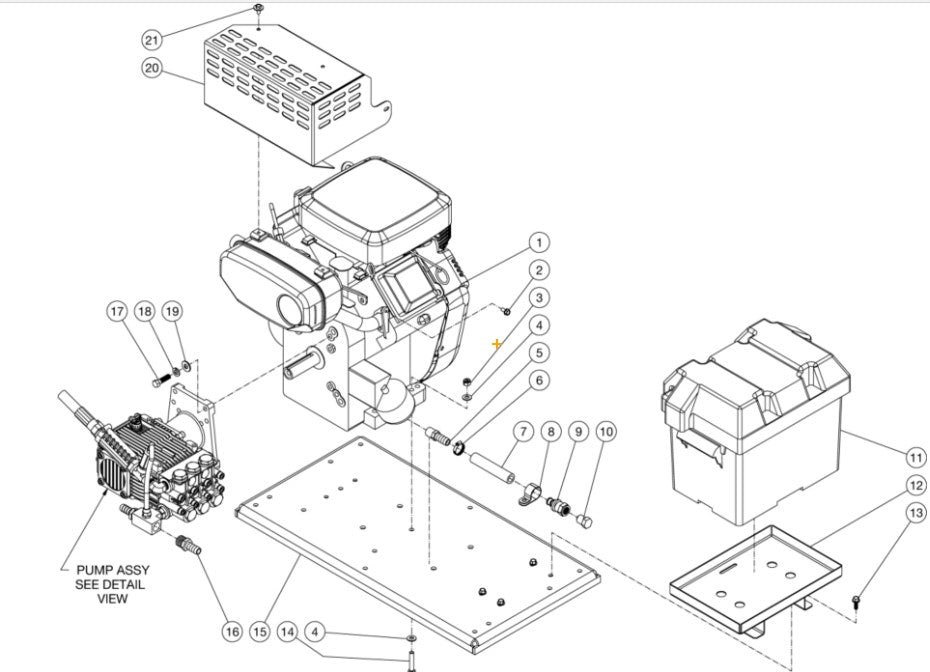

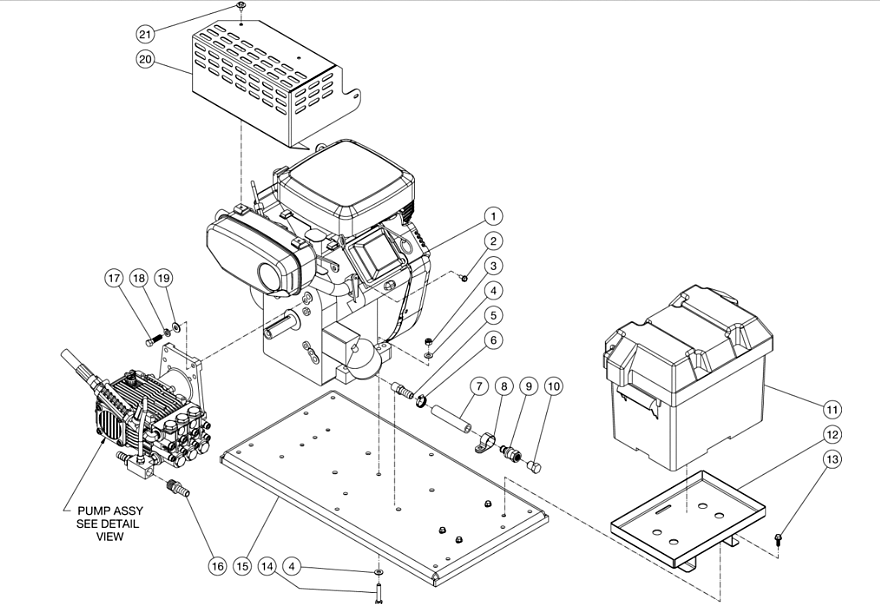

HDD-3804-0V6A Isolation Plate Assembly Parts by Mi-T-M

Name: HDD-3804-0V6A Isolation Plate Assembly Parts by Mi-T-M
Brand: danse-usa
Availability: OutOfStock

1 1

100% genuine product

Authorised dealer

View all diagrams for this Model

Ref.	Product details	Price	ActionAdd
1	1-0138 ENGINE - 16HP VANGUARD BY MITM	$2,935.58
2	27-8966 BOLT BY MITM	$2.55
3	30-0157 Locknut for MiTM Pressure Washers 300157	$5.93
4	28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003	$1.99
5	23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105	$7.58
6	42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011	Call for Price	call for price call for price
7	15-0305 HOSE BY MITM	$3.86
8	33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291	$4.85
9	23-0360 HOSE BARB BY MITM	$7.02
10	23-0411 Plug-1/2Npt Flared Seal for AC1-HE02-05M by Mi-T-M 230411	$12.87
11	33-0093 Battery Box-22F 13X9X10-3/4H for AC1-PE02-08M Air Compressor by Mi-T-M 330093	$25.87
12	20-1135A18 BATTERY TRAY BY MITM	$49.89
13	27-1200 BOLT BY MITM	$1.52
14	27-0070 Screw for MiTM Air Compressors by MiTM 270070	Call for Price	call for price call for price
15	5-0295A18 ISOLATION PLATE BY MITM	$160.59
16	23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045	$11.46
17	27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118	$1.99
18	29-0008 LOCKWASHER BY MITM	$2.55
19	28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022	$5.18
20	20-1183 HEAT SHIELD BY MITM	Call for Price	call for price call for price
21	27-8967 SCREW BY MITM	$2.70
