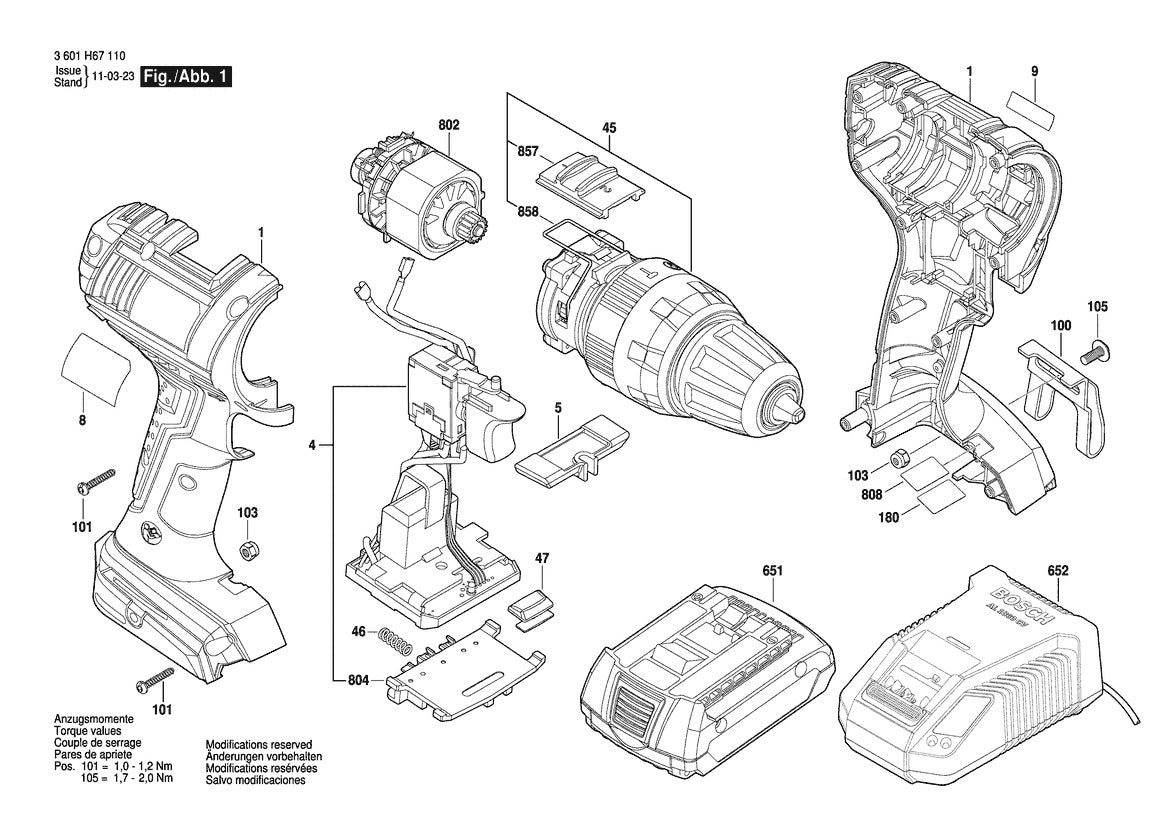

HDS181 (3601H67111) Bosch Hammer Drill Bosch Hammer Drill Parts Diagram

HDS181 (3601H67111) Bosch Hammer Drill Bosch Hammer Drill Parts Diagram

  • HDS181 (3601H67111) Bosch Hammer Drill Bosch Hammer Drill Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2610022139 Housing | Genuine OEM Bosch Part
$14.33
5
2609100859 Adjusting Lever by Bosch
$3.91
8
2609133092 Warning Label by Bosch
$3.91
9
2609133091 Manufacturer's Nameplate by Bosch
$3.91
45
2609199295 Gear Box | Genuine OEM Bosch Part
$55.00
46
1609280477 Spring | Genuine OEM Bosch Part
$3.91
47
2609100858 Lens | Genuine OEM Bosch Part
$3.91
100
2609110956 Clip | Genuine OEM Bosch Part
$8.10
101
2609110353 Torx Oval-head Screw by Bosch
$3.91
103
2609110835 Nut | Genuine OEM Bosch Part
$3.91
105
2609110834 Screw | Genuine OEM Bosch Part
$3.91
180
2609133093 Reference Plate by Bosch
$3.91
651
1607A350MB Slide-in Accu Package 18v, 1,5 by Bosch
$70.27
652
2607225429 Charger | Genuine OEM Bosch Part
$59.61
802
2609199359 Dc Motor, 18v by Bosch
$60.21
804
1609280478 Contact Retainer by Bosch
$17.61
857
2609100897 Swich Slide | Genuine OEM Bosch Part
$3.91
858
2609111078 Switch Spring by Bosch
$3.91
